28 www.pridemobility.com Jazzy 600
VI. COMFORT ADJUSTMENTS
Swing-away Footrests
Swing-away Footrests (SFRs) enable you to rotate the
footrests to the side before you transfer onto or off or your
power chair. See figure 18.
To rotate the SFRs:
1. Push in the release lever.
2. Rotate the SFRs.
To adjust the SFR length:
1. Remove the two adjustment screws from the side of
each footrest extension.
2. Slide the footrest up or down to the desired length.
3. Reinstall the two adjustment screws.
Elevating Leg Rests (Optional)
Elevating Leg Rests (ELRs) offer an infinite range of ad-
justment for the leg angle and a footrest adjustment range
of 1219 in. See figure 19.
To rotate the ELRs:
1. Push in release lever A.
2. Rotate the ELRs.
To adjust the ELR angle:
1. Push down release lever B.
2. Move the leg rest to the desired angle.
To adjust the ELR length:
1. Remove the two adjustment screws from the side of each leg rest extension.
2. Slide the leg rest up or down to the desired length.
3. Reinstall the two adjustment screws.
Heavy Duty Drop-in Leg Rests
You can adjust the forward/back position, as well as the length of the heavy duty drop-in leg rests. See figure 20.
To adjust the forward/back position:
1. Remove the adjustment bolts from the side rails.
2. Move the leg rest hanger in or out to the desired position.
3. Align the adjustment holes in the leg rest hanger with those in the side rail.
4. Reinstall the adjustment bolts to secure the leg rest hangers.
To adjust the leg rest length:
1. Remove the adjustment screws from the leg rest extension.
2. Slide the leg rest up or down to the desired length.
3. Align the adjustment holes in the leg rest extension and reinstall the adjustment screws.

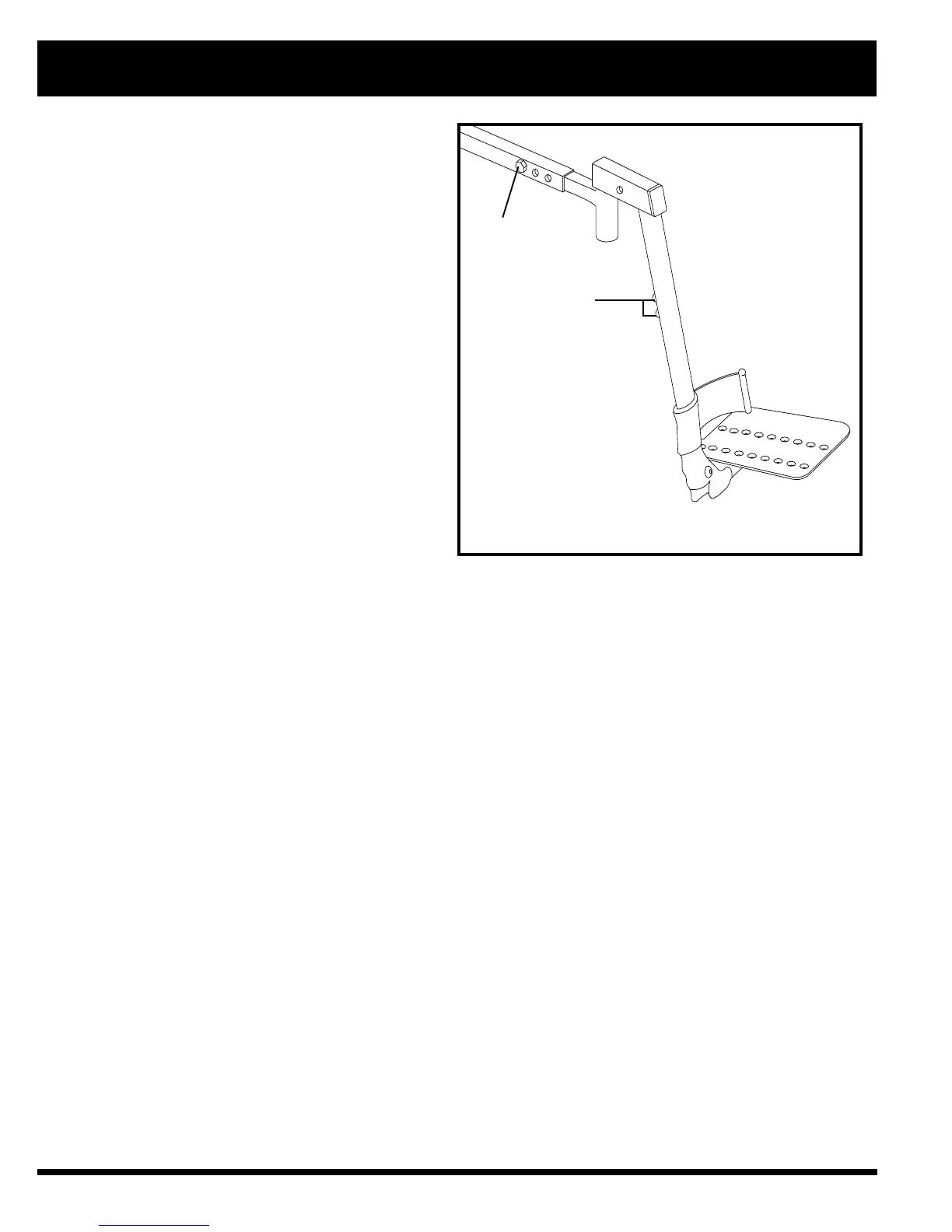

Figure 20. Heavy Duty Drop-In Leg Rests
ADJUSTMENT BOLT
LEGREST ADJUSTMENT
SCREWS
