Jazzy 600 www.pridemobility.com 29
MULTI-AXIS FOOT PLATE
The multi-axis foot plate assembly can be installed on either
a swing-away footrest or an elevating leg rest. The multi-
axis foot plate has four adjustments: leg rest length (A), po-
sition (B), tilt (C), and angle (D). See figure 21.
To change leg rest length (A):
1. Remove the hardware.
2. Move the leg rest to the desired position.
3. Reinstall the hardware.
To change foot plate position (B):
1. Remove the hardware.
2. Move the foot plate to the desired position.
3. Reinstall the hardware.
To change foot plate tilt (C):
1. Loosen the hardware.
2. Tilt the foot plate to the desired position.
3. Tighten the hardware.
To change foot plate angle (D):
1. Turn the setscrew clockwise to decrease the angle.
2. Turn the setscrew counterclockwise to increase the
angle.
A
C
D
B
B
C
D
A

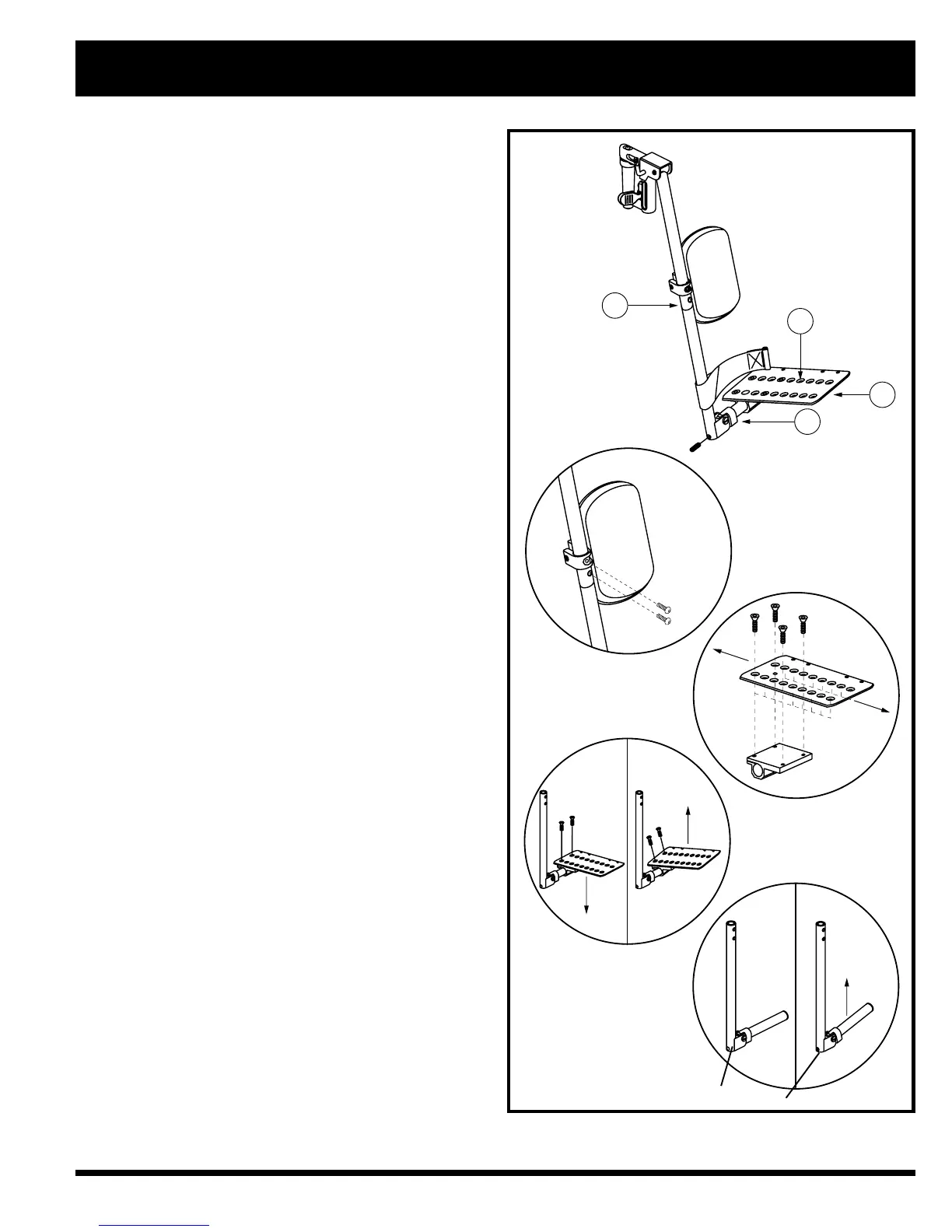

Figure 21. Multi-Axis Foot Plate (ELR Shown)
VI. COMFORT ADJUSTMENTS
SETSCREW
SETSCREW
