V. YOUR VICTORY
Your Victory is a motorized electric scooter designed
to enhance your personal mobility. Your Victory is an
indoor/outdoor scooter designed to travel primarily on
smooth surfaces such as sidewalks, roads, parking lots,
floors, and driveways. For easy transportation or stor-
age, you can disassemble your scooter into seven com-
ponents. See figure 6.

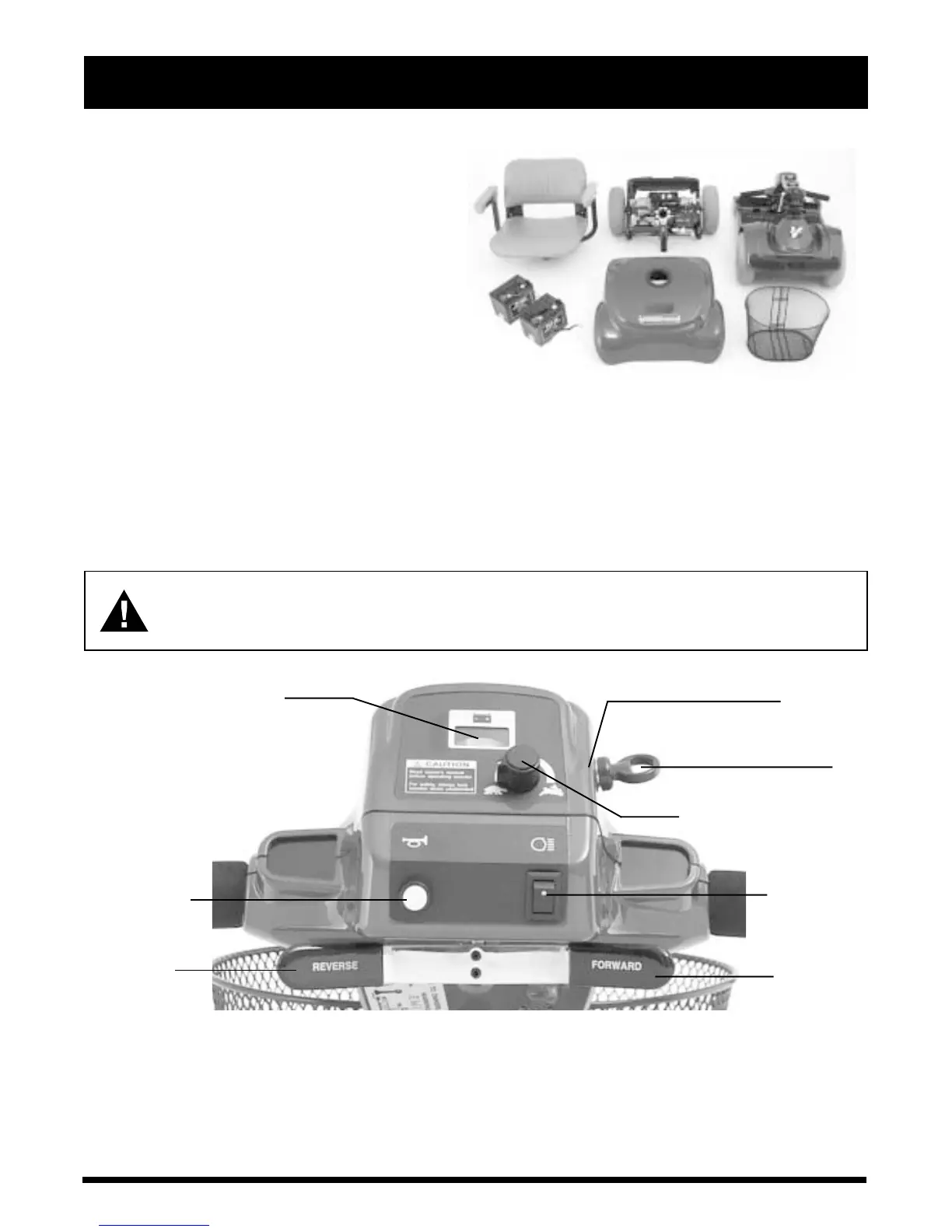

Figure 6. Victory Components
FRONT SECTION
REAR SECTION
SEAT
BASKET
BATTERIES
REAR SHROUD
HORN BUTTON
Figure 7. Control Console Assembly
BATTERY CONDITION METER
THROTTLE CONTROL
LEVER (REVERSE)
LIGHT SWITCH
SPEED ADJUSTMENT DIAL
KEY SWITCH
KEY
THROTTLE CONTROL
LEVER (FORWARD)
CONTROL CONSOLE ASSEMBLY
The control console assembly houses all the controls you need to drive your scooter, including the key switch, the
speed adjustment dial, the throttle control lever, the battery condition meter, the horn button, and the light switch.
See figure 7.
WARNING! Do not expose the control console assembly to moisture. In the event that the
console does become exposed to moisture, do not attempt to operate your scooter until
the control console assembly has thoroughly dried.
