28 www.pridemobility.com Victory
TILLER ANGLE ADJUSTMENT
You can adjust the tiller to many positions. The tiller adjustment lever locks the tiller in place. It has a spring-loaded
mechanism that enables you to rotate it and change its position.
1. Turn the tiller adjustment lever counterclockwise until it is loose. If the tiller adjustment lever comes in contact
with the tiller basket, pull it outward, turn it clockwise, and release it. Continue to loosen until the tiller is able
to move. See figures 11 and 11A.
2. Move the tiller to a comfortable position.
3. Turn the tiller adjustment lever clockwise until it is tight. If the tiller adjustment lever comes in contact with the
tiller basket, pull it outward, turn it counterclockwise, and release it. Continue to turn the lever until it is tight.
The tiller may be lowered to the center of the floorboard and locked in place for storage.
VIII. COMFORT ADJUSTMENTS

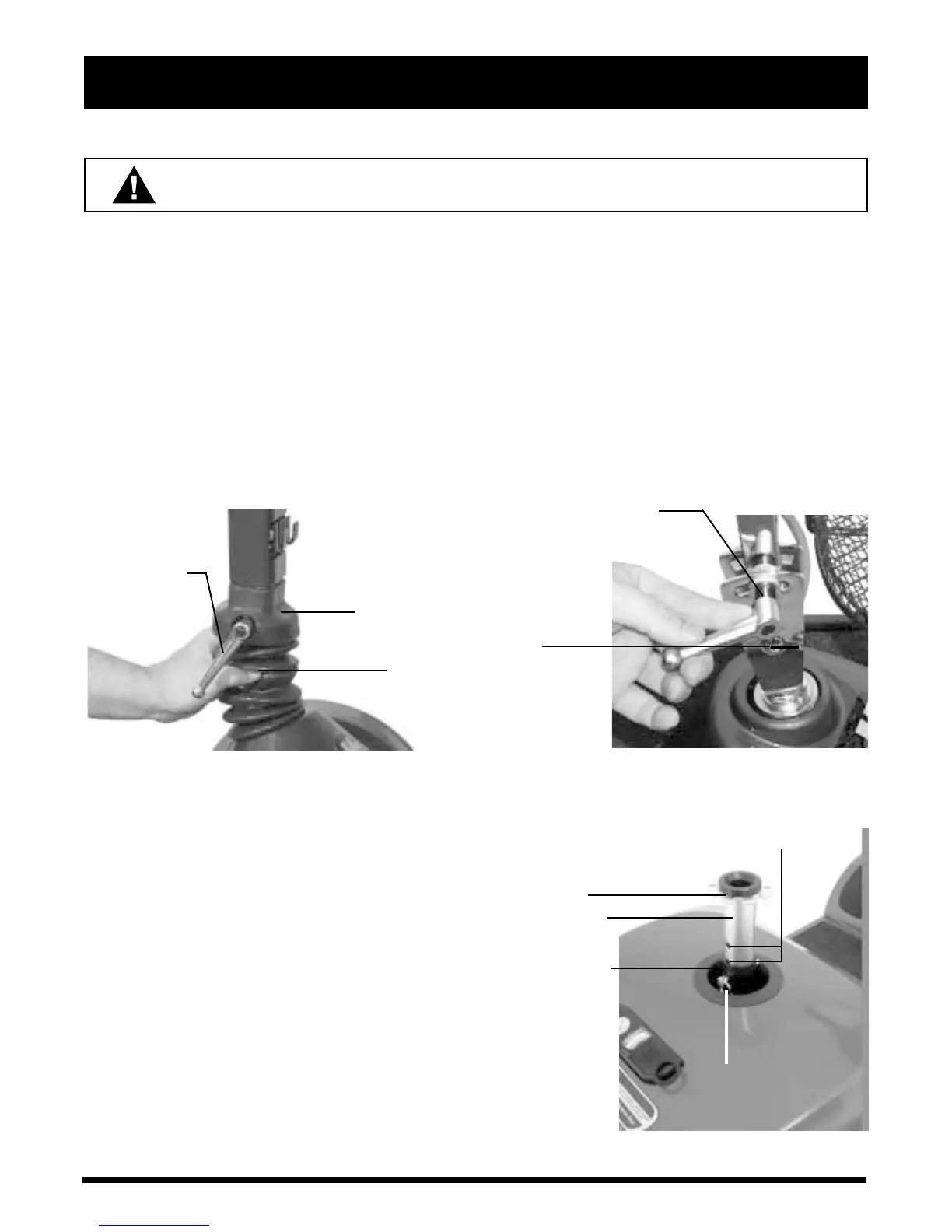

Figure 11. Adjusting The Tiller Angle
TILLER ADJUSTMENT
LEVER
TILLER RELEASE
BUTTON
TILLER BOOT
Figure 11a. Reposition Tiller Adjustment
Lever (Tiller Boot Removed For Clarity)
PULL OUT TO REPOSITION
TILLER RELEASE
BUTTON
Figure 12. Seat Height Adjustment
LOWER SEAT POST
UPPER SEAT POST
BALL DETENT PIN
LOCATING HOLES
SEAT PEDESTAL
SEAT HEIGHT ADJUSTMENT
The seat can be repositioned to one of three different
heights. See figure 12.
1. Remove the seat from your scooter. See IX. Dis-
assembly and Assembly.
2. Use the attached ring to pull and remove the ball
detent pin from the lower seat post.
3. Raise or lower the upper seat post to the desired
seat height.
4. While holding the upper seat post at that height,
match up the holes in the upper seat post and the
lower seat post.
5. Fully insert the ball detent pin.
6. Replace the seat.
WARNING! Remove the key from the key switch before adjusting the tiller or the seat.
Never attempt to adjust the tiller or the seat while the scooter is in motion.
