II. YOUR TRAVEL SCOOTER
2 31
1a
1b
1c
IDENTIFICATION KEY

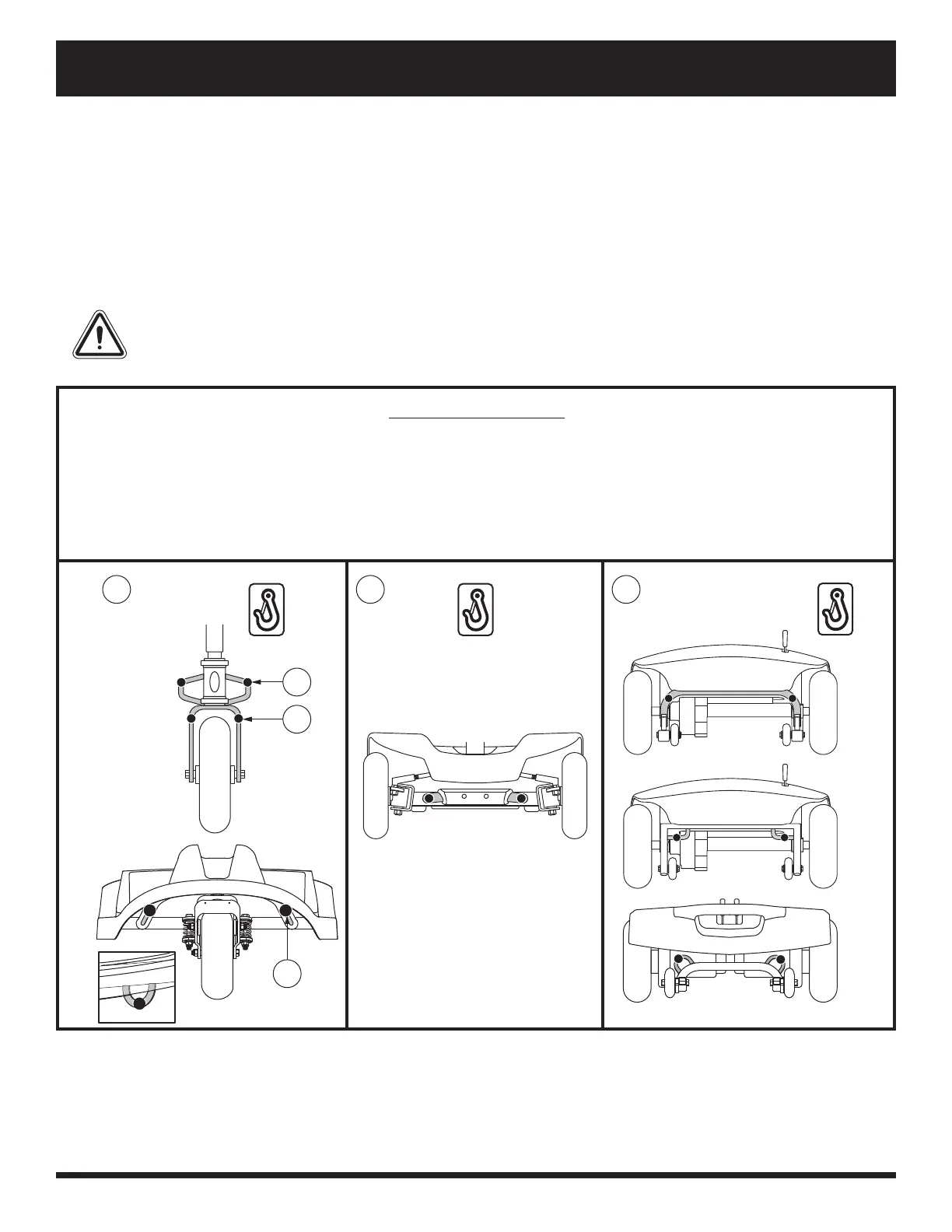

Figure 14. Securement Points (Identifi ed with black dots)
SECUREMENT POINTS
Always secure the Travel Scooter in a forward-facing position in the vehicle. Attach the four tie-down straps to
the designated securement points. See fi gure 14. Tighten the straps to suffi ciently remove all slack. Never attach
tie-downs to adjustable, moving, or removable parts of the Travel Scooter such as armrests, shrouds, and wheels.
These items should be removed. Position the anchor points for the rear tie-down straps directly behind the rear
securement points on the Travel Scooter. The front tie-down straps should anchor to fl oor points that are spaced
wider than the Travel Scooter to provide increased lateral stability.
WARNIN G! Ensure Tra ve l Sc oot ers a re properly se c ured to the m ot or ve hicle during transpor t .
Sc oot ers that a re not prope rly se cure d c an becom e a ha za rd t o t he use r a nd t o ot he r ve hicle
passenge rs in t he event of a c rash, sudde n st opping, or sw erving, a s t he Trave l Sc oot er could
tip or slide out of pla c e.
1. Front Securement Points (3-wheel models)
1a. Models 83 and 84 only
1b. Models 36, 39, 40X, 40E, 40LX, 50LX, 53, 53HD, and 73
1c. Model 66 only
2. Front Securement Points (4-wheel models)
Models 44X, 44E, 44LX, 49, 54LX, 54, 54HD, 67, 74, and Jazzy ZTS
3. Rear Securement Points
To Next Page
