Travel Scooter Series 13
II. YOUR TRAVEL SCOOTER

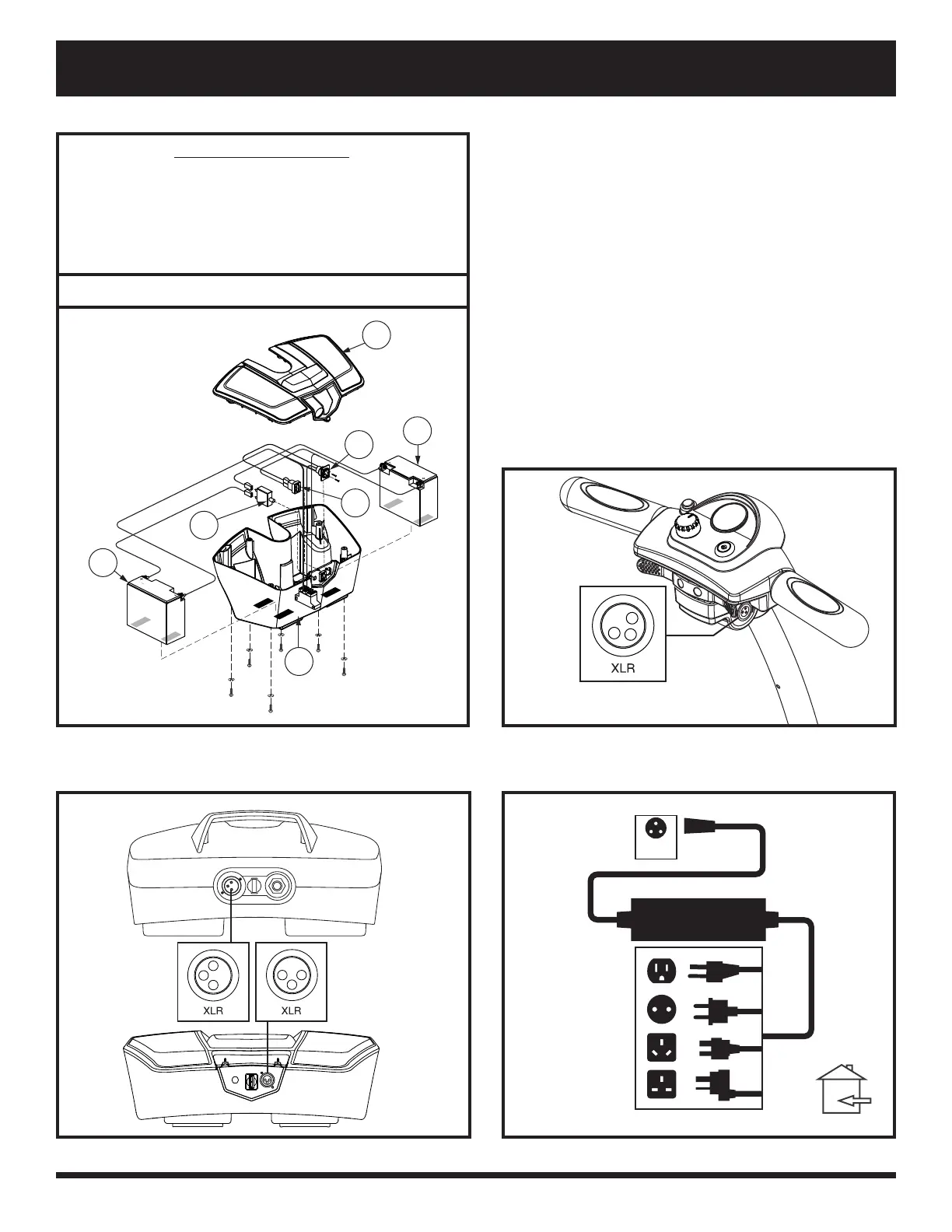

Figure 10 Battery Box - Jazzy ZTS, 50LX, 54LX
IDENTIFICATION KEY
1. Top Battery Box Cover
2. Batteries
3. Charger Port
4. Battery Pack Fuse
5. Bottom Battery Box Cover
6. Circuit Breaker
Battery Pack Style E
Charger Power Cord Receptacle
The 3-pin end of the charger power cord plugs into
this receptacle. See fi gures 11 and 12.
Tiller Console Fuse (If Equipped)
The fuse located under the battery pack protects the
tiller console electronics. See fi gure 9. In the event
any component of the tiller console is not responding,
check this fuse. See VII. “Basic Troubleshooting” for
fuse replacement instructions.
Off-Board Battery Charger
The off-board battery charger, when plugged into
the charger power cord receptacle and a standard
electrical outlet, charges the Travel Scooter’s
batteries. See fi gure 13.
Figure 11. Charger Power Cord Receptacle (Tiller
Mounted)
Figure 13. Off-board Battery ChargerFigure 12. Charger Power Cord Receptacle (Battery Pack)
XLR
1
2
2
3
6
5
4
