Pride 36 - BATTERY PACK

12 Travel Scooter Series
II. YOUR TRAVEL SCOOTER
BATTERY PACK
Your Travel Scooter is equipped with an innovative, easy-to-remove battery pack. A handle on the top of the
battery pack makes it easy to lift the pack off of the Travel Scooter with one hand. The battery pack contains two
rechargable batteries, and may contain the charger power cord receptacle, the main circuit breaker (reset button),
and the battery pack fuse. See fi gures 9 and 10.
IDENTIFICATION KEY
1. Battery Pack
2. Battery Pack Handle
3. Charger Power Cord Receptacle
4. Battery Pack Fuse
5. Main Circuit Breaker (Reset Button)
6. Battery Terminals
7. Tiller Console Fuse

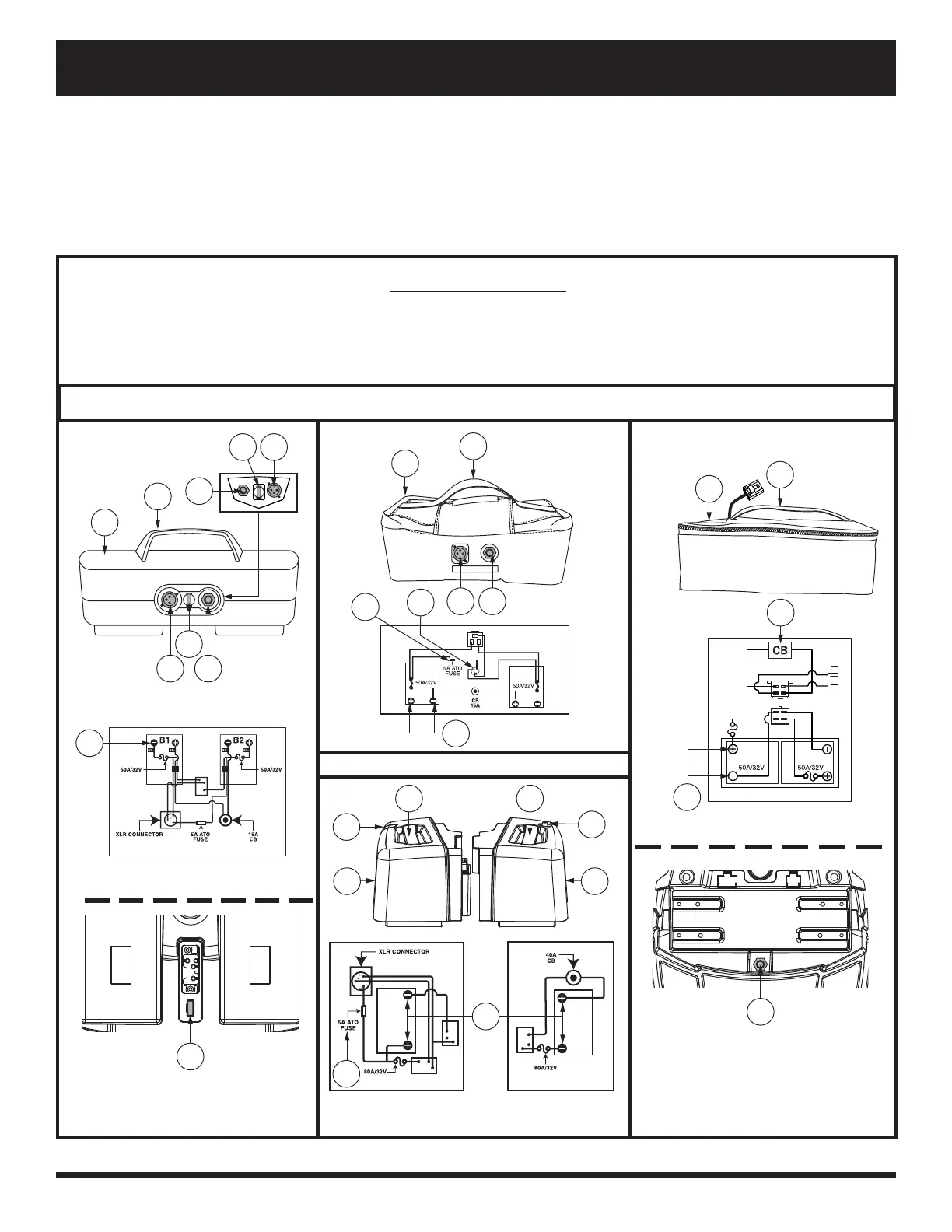

Battery Pack Style A Battery Pack Style B Battery Pack Style D
Figure 9. Battery Pack
(Travel Scooter Deck)
(Travel Scooter Deck)
15A
Battery Pack Style C
1
1
1 1
5
3
4
34
7
5
5
5
3
3
5
5
2
2
2 2
1
2
6
6
3
6
6
4
4
