Pride 36 - V. COMFORT ADJUSTMENTS; TILLER ADJUSTMENT; SEAT ADJUSTMENT

Travel Scooter Series 23
V. COMFORT ADJUSTMENTS
TILLER ANGLE ADJUSTMENT (See fi gure 23)
WARNIN G! Re move t he key from t he key sw it ch
before a djust ing t he t ille r or t he se at. N ever
attem pt t o a djust t he t ille r or t he se a t w hile t he
Trave l Sc oot er is in m ot ion.
WARNIN G! Prior t o ope rating t he sc oot er, push
and pull on the t ille r t o e nsure t hat t he a ngle
adjustm e nt m echa nism is se c ure. I nspe ct t he
tiller adjust m ent k nob a nd t he a ngle a djust m ent
mechanism t o e nsure t ha t t he y a re fully
enga ge d. I f there is m ove m ent in the t ille r,
che ck t o m a ke sure t hat t he t ille r a djust ment
knob is fully t ight ened.
NOTE: In order to fully lower the tiller, you must fi rst remove
the seat and battery pack. Remove the seat by pulling it straight
up and off of the Travel Scooter.
SEAT ROTATION ADJUSTMENT
The seat rotation lever, located on the right side of the seat base,
secures the seat into several positions. See fi gure 24.
1. Pull up on the seat rotation lever to disengage the seat.
2. Rotate the seat to the desired position.
3. Release the lever to secure the seat into place.
ARMREST WIDTH ADJUSTMENT
The armrest width can be adjusted inward or outward.
1. Loosen the armrest adjustment knobs. See fi gure 24.
2. Use the attached ring to pull and remove the detent pins.
3. Slide the armrests in or out to the desired width.
4. Align the adjustment holes on the seat frame and armrest,
then reinsert the detent pins.
5. Tighten the armrest adjustment knobs.
NOTE: Pivot the armrests upward to aid in getting onto and
off of your Travel Scooter.
SEAT HEIGHT ADJUSTMENT
The seat can be repositioned to different heights. See fi gure 25.
1. Remove the seat and battery pack from your Travel Scooter.
2. Use the attached ring to pull and remove the detent pin from
the lower seat post.
3. Raise or lower the upper seat post to the desired seat height.
4. While holding the upper seat post at that height, align the
adjustment holes of the upper and lower seat posts.
5. Fully insert the detent pin.
6. Replace the battery pack and seat.
NOTE: If equipped, the under-seat storage feature must be
removed to obtain a seat height of 16.5 inches (41.9 cm) or less.
Refer to “Under-seat Storage” for more information.
1
2
3
2
1
3
1. Upper Seat Post
2. Lower Seat Post
3. Detent Pin
IDENTIFICATION KEY
IDENTIFICATION KEY
1. Armrest Adjustment Knobs
2. Detent Pins
3. Seat Rotation Lever

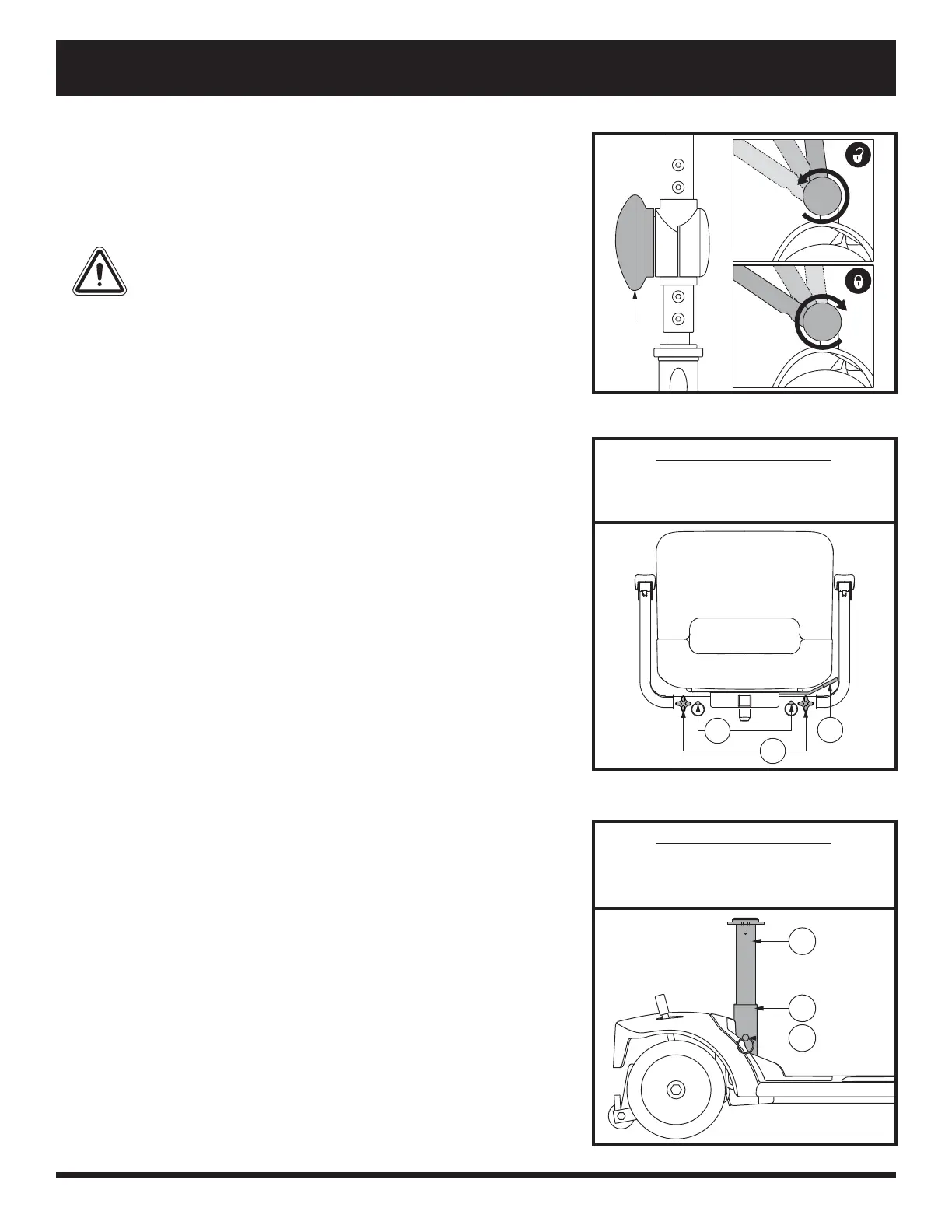

Figure 23. Tiller Adjustment Knob
Figure 24. Seat Adjustments
Figure 25. Seat Height Adjustment
