V. COMFORT ADJUSTMENTS
Seat Position
You can move the seat forward or backward by
changing the seat base mounting position.
To change the seat position:
1. Turn off the power to the controller.
2. Make sure the power chair is in drive mode.
3. Unplug the controller connector(s) from the
power base.
4. Remove the seat from the power base.
5. Remove the screws and washers from the bottom
of the seat plate. See figure 13.
6. Slide the seat plate forward or backward, aligning
the holes in the plate with the corresponding holes
on the seat base. You must move both sides of the
seat forward or backward the same number of
holes.
WARNING! Changing the position of
the seat can cause instability. Do not
change your seating configuration
without first contacting Pride Mobility
Products or your authorized Pride
Provider.
WARNING! After any adjustments,
repairs, or service and before use,
make sure that all attaching
hardware is tightened securely to
prevent injury and/or equipment
damage.
7. Reinstall the screws and washers to the seat plate
and tighten the hardware firmly.
8. Reinstall the seat.
9. Reconnect the controller to the power base.
WARNING! The center of gravity of your
power chair was factory set to a
position that meets the needs of the
demographic majority of users. Your
authorized Pride Provider has evaluated
your power chair and made any
necessary adjustments to suit your
specific requirements. Adjusting the
seat position can cause instability. Do
not change your seating configuration
without first contacting Pride Mobility
Products or your authorized Pride
Provider.

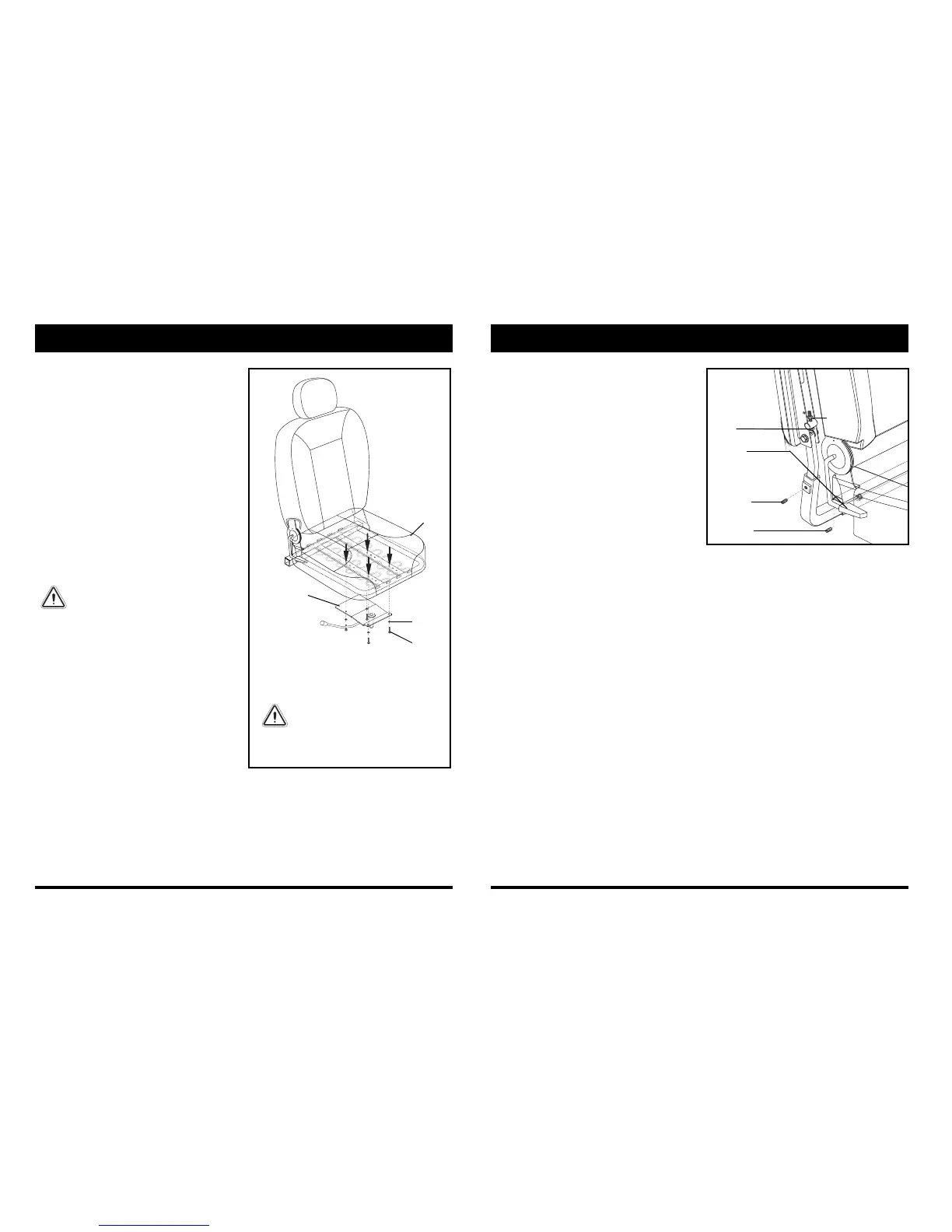

Figure 13. Seat Position Adjustment
SEAT BASE
SEAT PLATE
SCREW
WASHER
24 www.pridemobility.com Jazzy Select Elite
Manual Recline Seatback Adjustment
If your power chair is equipped with a manual recline
seatback, you can adjust the seatback angle with the
seatback release lever. The lever is located on the right
side of the seat base. See figure 14.
To adjust the recline angle:
1. Pull up on the seatback release lever.
2. Lean forward or backward to the desired position.
3. Release the lever.
Armrest Width Adjustment
You can change each armrest’s width independently of
the other.
NOTE: Changing the armrest width may increase the
overall width of your power chair.
To change the armrest width:
1.
Locate the armrest width adjustment knob on each
side of the armrest receiver bracket.
See figure 14.
2. Loosen the knob.
3. Slide the armrests in or out to the desired width.
4. Tighten the knob.
Armrest Angle Adjustment
To change the armrest angle:
1. Lift the armrest straight up so that it is perpendicu-
lar to the floor.
2. Loosen the jam nut.
3. Turn the adjustment screw to raise or lower the
front of the armrest.
4. Tighten the jam nut to lock the adjustment screw
into place.
Armrest Height Adjustment
To change the armrest height:
1. Loosen the setscrew on the armrest. See figure 14.
2. Raise or lower the armrest to the desired height.
3. Tighten the setscrew to secure the armrest.
V. COMFORT ADJUSTMENTS
Figure 14. Armrest and Seatback Adjustments
ARMREST WIDTH
ADJUSTMENT
KNOB
JAM NUT
ARMREST HEIGHT
ADJUSTMENT
SETSCREW
ARMREST ANGLE
ADJUSTMENT
SCREW
SEATBACK
RELEASE LEVER
