III. YOUR POWER CHAIR
THE JAZZY SELECT ELITE POWER CHAIR
The Jazzy Select Elite Power Chair has two main assemblies: the seat assembly and the power base assembly. See
figure 5. Typically, the seat assembly includes the armrests, seatback, and seat base. The power base assembly
includes two motor/brake assemblies, two drive wheels, two rear caster wheels, two front anti-tip wheels, two
batteries, and wiring harnesses.

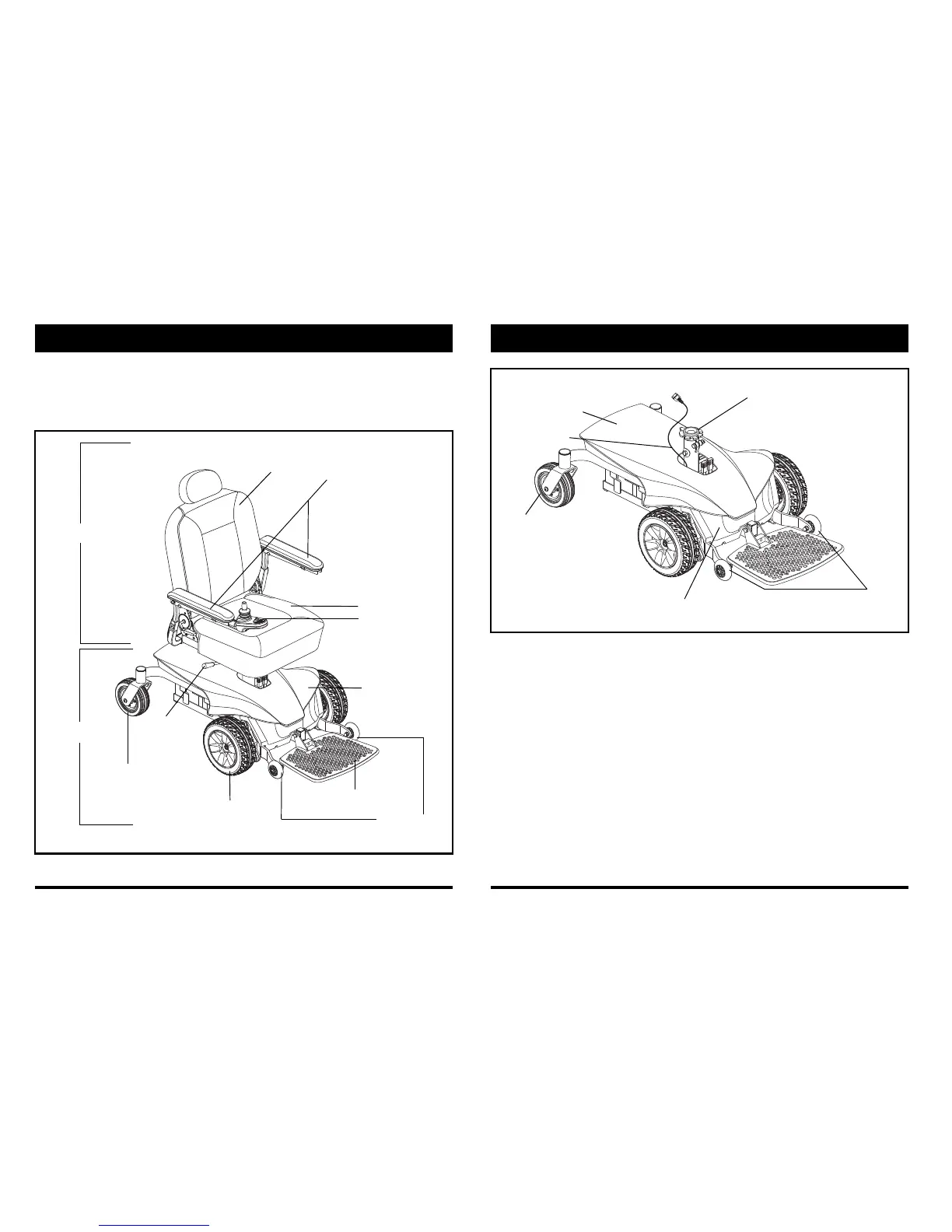

Figure 5. The Jazzy Select Elite Power Chair
SEAT
ASSEMBLY
FRONT RIGGING
(FOOT PLATFORM SHOWN)
DRIVE WHEEL
ANTI-TIP WHEELS
SEATBACK
ARMRESTS
MAIN SHROUD
CONTROLLER
SEAT BASE
POWER BASE
ASSEMBLY
CASTER WHEEL
SEAT
RELEASE
LEVER
18 www.pridemobility.com Jazzy Select Elite
Figure 6. The Jazzy Select Elite Power Base
MAIN SHROUD
SEAT POST
FRONT COVER
CONTROLLER HARNESS
ANTI-TIP
WHEELS
CASTER
WHEEL
III. YOUR POWER CHAIR
To Next Page
