V. COMFORT ADJUSTMENTS
COMFORT ADJUSTMENTS
After becoming familiar with your power chair’s operation, you may find the need to make some adjustments to increase your
comfort. These adjustments include seat height and angle, armrest angle, foot platform height and angle and controller position.
NOTE: If your power chair is equipped with a Specialty Seat or a Synergy Seat, refer to the information provided
in separate manuals. If your power chair is equipped with a contoured seat, refer to the following information.
WARNING! If your power chair was configured by your authorised Pride Dealer, please consult your
healthcare professional before changing the seat position or making any other adjustment. Some
adjustments may degrade your power chair’s performance and safety by changing its centre of gravity.
WARNING! Some power chair components are heavy. You may need assistance to lift or carry
them. Please refer to the specifications table for specific component weights before you
disassemble the power chair.
WARNING! Remove the occupant from the
power chair before making any adjustments.

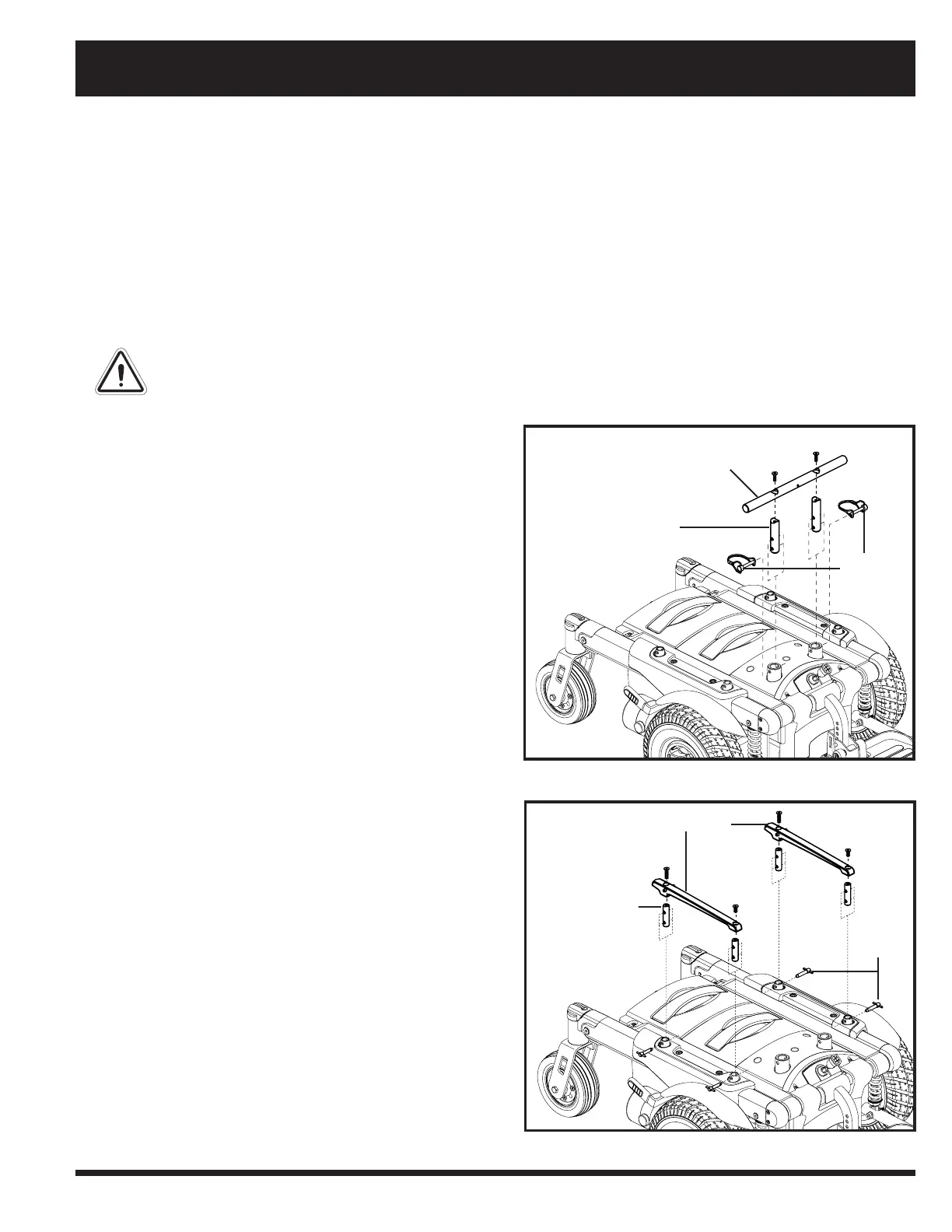

Figure 16. Side Frame Handles Height Adjustment
Figure 15. Front Seat Interface Height Adjustment
You may need the following to make comfort adjustments:
! metric/standard socket set and ratchet
! adjustable spanner
! thread lock
Seat Height and Seat Angle Adjustment
You can change the seat height to one of two positions in 2.5 cm
(1 in.) increments by raising the front seat interface and side
frame handles. See figures 15 and 16. If you raise or lower only
the front seat interface or the side frame handles, you can also
change the seat base angle (dump).
To change the seat height:
1. Turn off the power to the controller.
2. Disconnect the controller from the power base. See
figure 6.
3. Remove the seat from the power base.
4. Loosen the screws that attach the side frame handles
and front seat interface to the seat posts. See figures 15
and 16.
5. Remove the retaining clips that secure the seat posts to
the power base.
6. Move the seat posts up or down to the desired height.
7. Reinstall the retaining clips.
8. Remove each screw from the side frame handles and front
seat interface and apply thread lock.
9. Reinstall each screw and tighten.
10. Reinstall the seat.
11. Reconnect the controller to the power base.
RETAINING
CLIPS
SEAT POST
SEAT POST
RETAINING
CLIPS
SIDE FRAME HANDLES
FRONT SEAT INTERFACE
