Tiller Console: Handbrake Lever
Your scooter is equipped with a handbrake lever which is located on the tiller handle. See fi gures 1 and 3. This
lever provides you with additional stopping power. The handbrake is manual and operates independently of your
scooter’s regenerative braking system which is engaged during operation of the scooter by releasing the throttle
control lever.

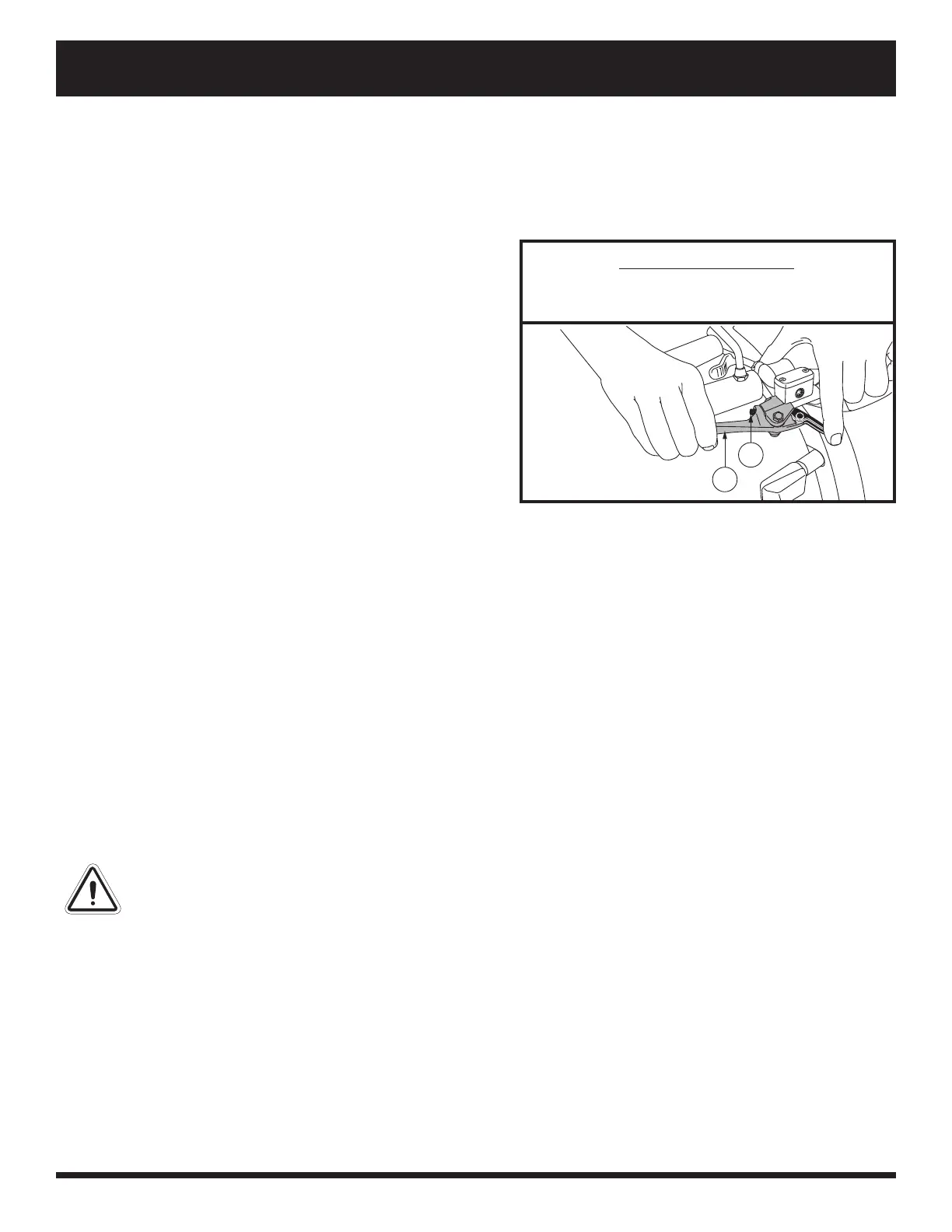

Figure 3. Handbrake Lever
IDENTIFICATION KEY
1. HANDBRAKE LEVER
2. SETSCREW
1
2
To operate the handbrake lever:
1. Release the throttle control lever fully.
2. Gently squeeze the handbrake lever to bring your
scooter to a complete stop.
NOTE: You must release the throttle control lever before
squeezing the handbrake lever. Otherwise, your scooter
may not come to a complete stop.
NOTE: The handbrake lever may require periodic
adjustment to maintain proper operation. Adjustment
should only be performed by your authorized provider
or other qualifi ed technician. Contact your authorized
provider for more information.
NOTE: Handbrake eff ectiveness, which is how quickly the squeezing of the handbrake lever will bring your
scooter to a stop, can be modifi ed by tightening or loosening the setscrew located on the handbrake lever. See
fi gure 3.
NOTE: If your handbrake is equipped with a lock function as shown in fi gure 1 or fi gure 3, you can activate
the brake lock function by squeezing the handbrake lever and rotating or pushing the lock lever to engage the
lock. To release the handbrake lock, fully squeeze the handbrake lever. See fi gure 1 or fi gure 3.
NOTE: If your handbrake contains hydraulic fl uid, do not attempt to modify or replace the handbrake lever
or the hydraulic fl uid.
NOTE: Prior to riding your scooter, especially after storage, squeeze the handbrake lever fully fi ve to seven
(5-7) times to confi rm proper function of the handbrake.
WARNING! The hydraulic fl uid can cause mild skin, eye, and nasal/bronchial irritation. If damage
occurs, contact your authorized provider for handbrake replacement. The hydraulic
handbrake should only be serviced or replaced by your authorized provider.
WARNING! The handbrake is intended for use as a supplemental braking system to the throttle
controlled regenerative braking system, or to help bring the scooter to a stop in the event that
the regenerative braking system does not engage. The handbrake is not intended for use as the
primary braking system. Misuse or improper use of the handbrake may result in a crash, a fall,
personal/property injury, or death.
