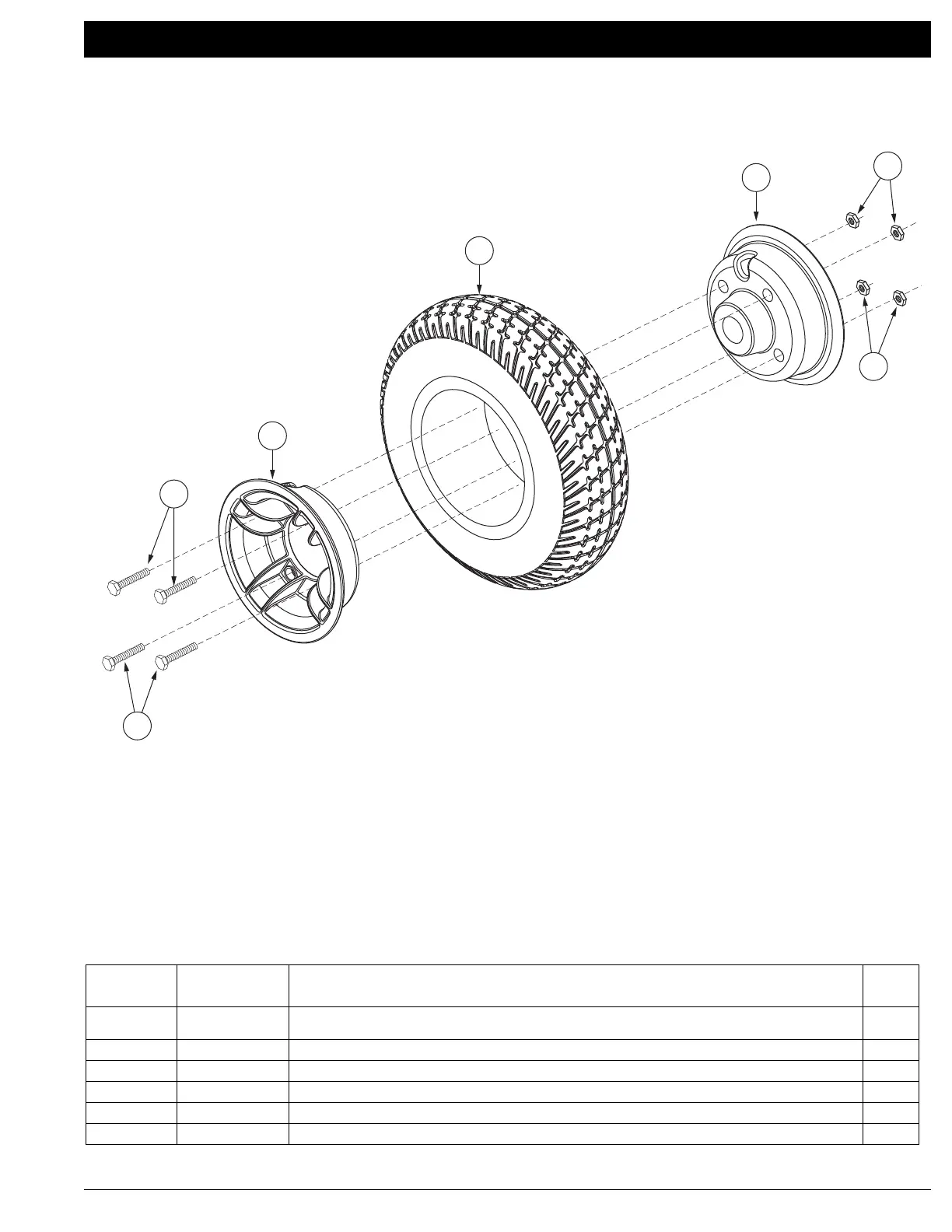

Sonic V. Wheel Assembly — Rear
A1 — A5
A1
A2
A3
A4
A5
REF #
WHLASMB1444
TIRSOLI1037
DWR9905D014
DWR9905D019
SCRHHCS1189
NUTSERF1008
PART #
WHEEL,ASSY,FLAT FREE,BLACK RIM/GRAY TIRE,8 X 2.50,LOW PROFILE,REAR,PRIMO
DUROTRAP,C-9267-1
TIRE,FLAT FREE,GRAY,8 X 2.50,LOW PROFILE,PRIMO DUROTRAP,C-9267-1
WHEEL,RIM,REAR, OUTSIDE, BLACK, PLASTIC, LOW PROFILE, SONIC,D-9905-014
WHEEL,RIM,REAR, W/KEYWAY, INSIDE, BLACK, PLASTIC, LOW PROFILE, SONIC,D-9905-019
SCREW, HHCS,ZINC,M10 X 1.25 X 20MM
NUT, SERRATED FLANGE,M10 x 1.25
DESCRIPTION
2
1
1
1
4
4
QTY
A1
A2
A4
A4
A3
A5
A5
