Page 26 www.pridemobility.com Rev. S/072706

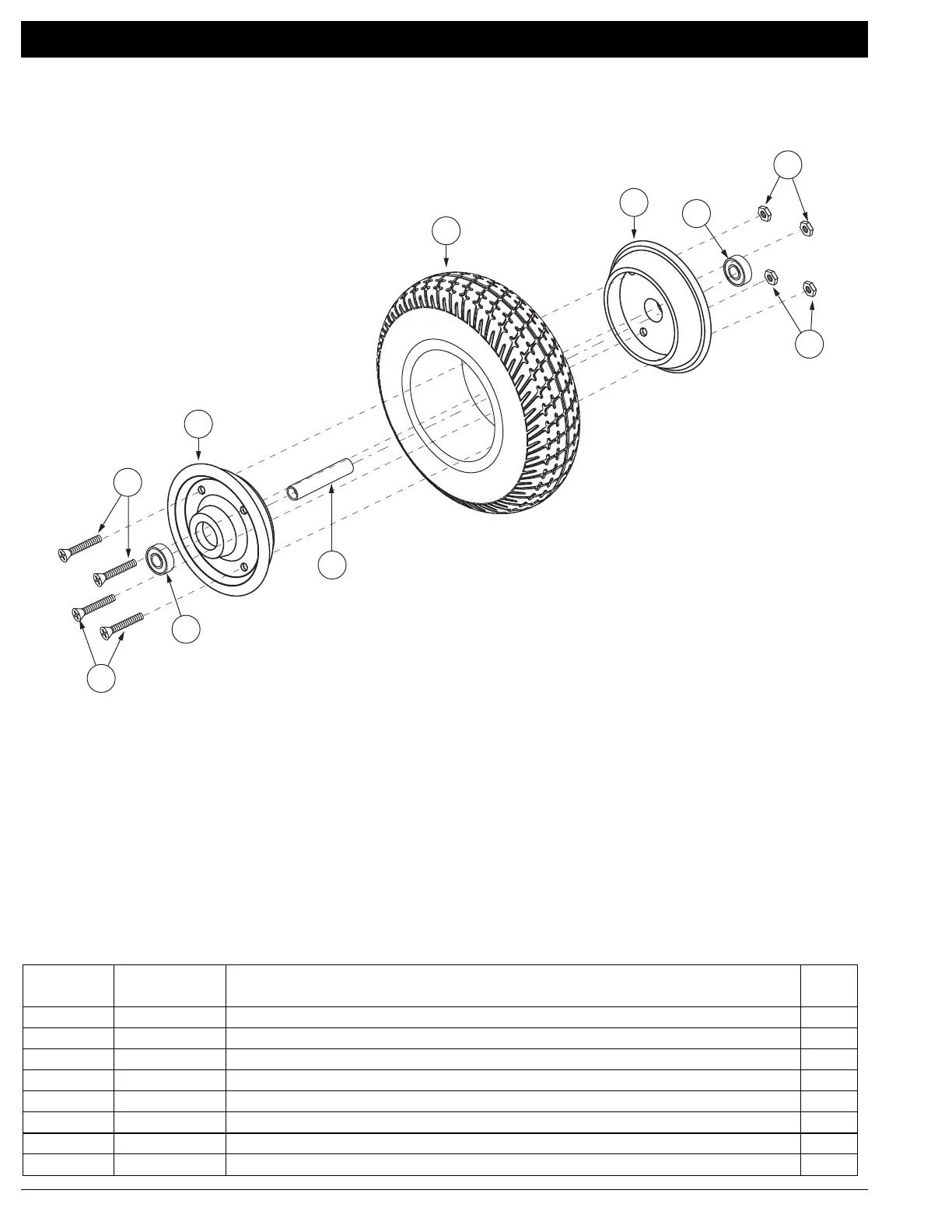

Jazzy 1100SonicV. Wheel Assembly — Front
A1 — A7
A1
A2
A3
A4
A5
A6
A7
REF #
WHLASMB1405
TIRSOLI1033
WHLRIMS1088
WHLRIMS1089
DWR9998A014
SCRPFH1036
NUTNYLK1045
BRGSLV1031
PART #
WHEEL,ASSY,FLAT FREE,BLACK RIM/GRAY TIRE,200 X 50,FRONT,PRIMO DUROTRAP
TIRE,FLAT FREE,GRAY,200 X 50,PRIMO DUROTRAP
WHEEL,RIM,PLASTIC,102MM X 22MM,FRONT, BOLT SIDE
WHEEL,RIM,PLASTIC,102MM X 22MM,FRONT, NUT SIDE
SPACER,STEEL,0.34" ID X 0.43" OD X 1.93" L,ZINC
SCREW, PFH,ZINC,M6 X 1 X 30MM
NUT,NYLOCK,ZINC,M6-1.0
BEARING, SLEEVE,M8 ID X 22MM OD X 7MM TH,(608Z)
DESCRIPTION
1
1
1
1
1
4
4
2
QTY
A5
A5
A2
A1
A4
A7
A3
A6
A6
A7
