TILLER CONSOLE
The tiller console houses all of the controls needed to drive your scooter, including the speed adjustment dial, throttle
control levers, battery condition meter, running lights switch, hazard light switch, turn signal buttons, status LED, and
horn buttons. See figure 5.
WARNING! Do not expose the tiller console to moisture. In the event that the tiller console does
become exposed to moisture, do not attempt to operate your scooter until the tiller console has
dried thoroughly.
V. YOUR SUNDANCER
Key Switch
n Insert the key into the key switch and turn it clockwise to power up (turn on) your scooter.
n Turn the key counterclockwise to power down (turn off) your scooter.
Throttle Control Levers
These levers allow you to control the forward speed and the reverse speed of your scooter up to the maximum
speed you preset with the speed adjustment dial.
n Place your right hand on the right handgrip and your left hand on the left handgrip.
n Use your right thumb to push the right side of the lever to disengage your scooters brakes and move forward.
n Release the lever and allow your scooter to come to a complete stop before pushing the other side of the lever
to move in reverse.
n When the throttle is completely released, it automatically returns to the center stop position and engages your
scooters brakes.
Speed Adjustment Dial
This dial allows you to preselect and limit your scooterss top speed.
n The image of the tortoise represents the slowest speed setting.
n The image of the hare represents the fastest speed setting.

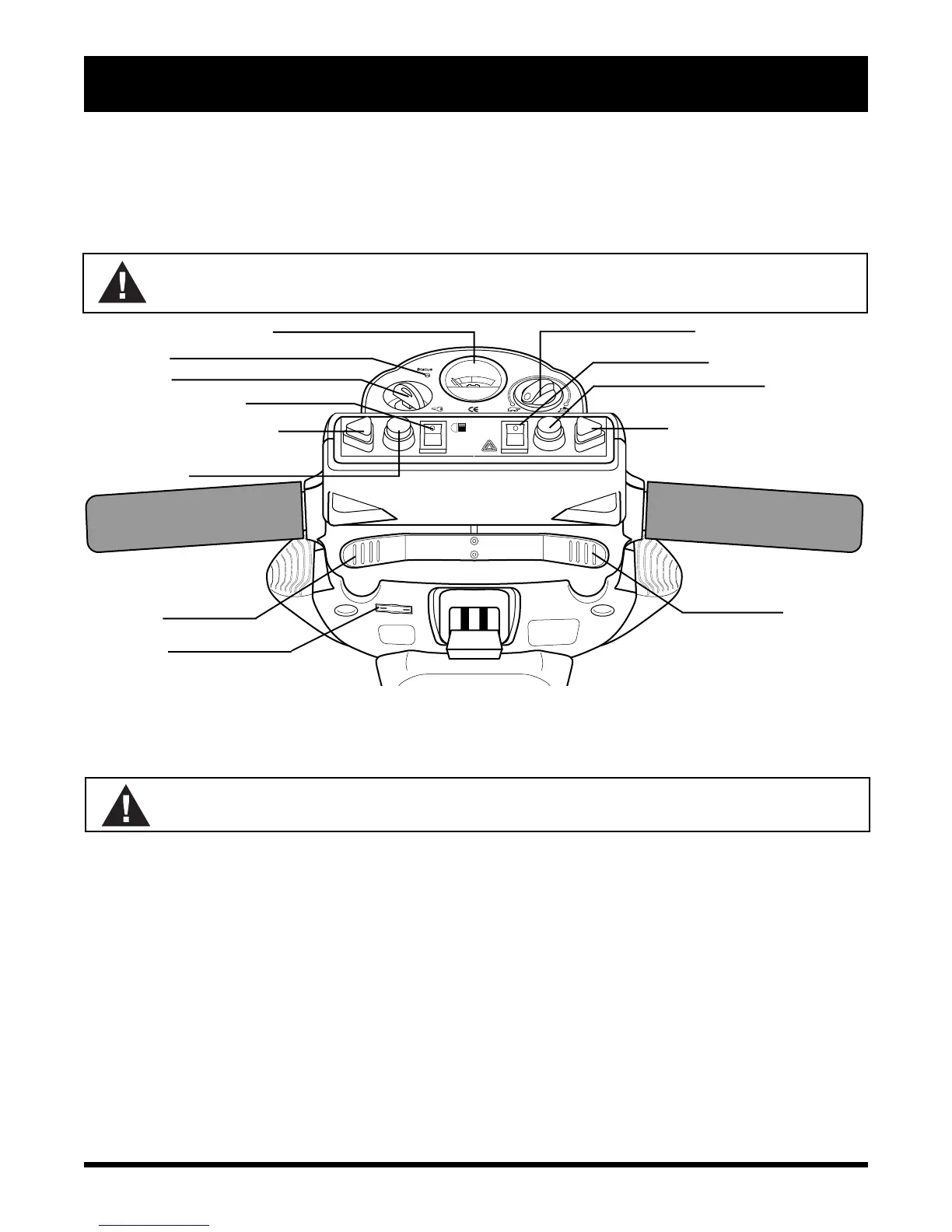

FIGURE 5. TILLER CONSOLE
BATTERY CONDITION METER
5-AMP FUSE
SPEED ADJUSTMENT DIAL
THROTTLE CONTROL LEVER
(REVERSE)
HORN BUTTON
THROTTLE CONTROL LEVER
(FORWARD)
KEY SWITCH
RUNNING LIGHT SWITCH
STATUS LED
HAZARD LIGHT SWITCH
TURN SIGNAL BUTTON (RIGHT)
TURN SIGNAL BUTTON (LEFT)
WARNING! If the key is moved to the off position while your Sundancer is in motion, the electronic
brakes engage and your Sundancer will come to an abrupt stop!
HORN BUTTON
