I X . DISASSEMBLY AND ASSEMBLY

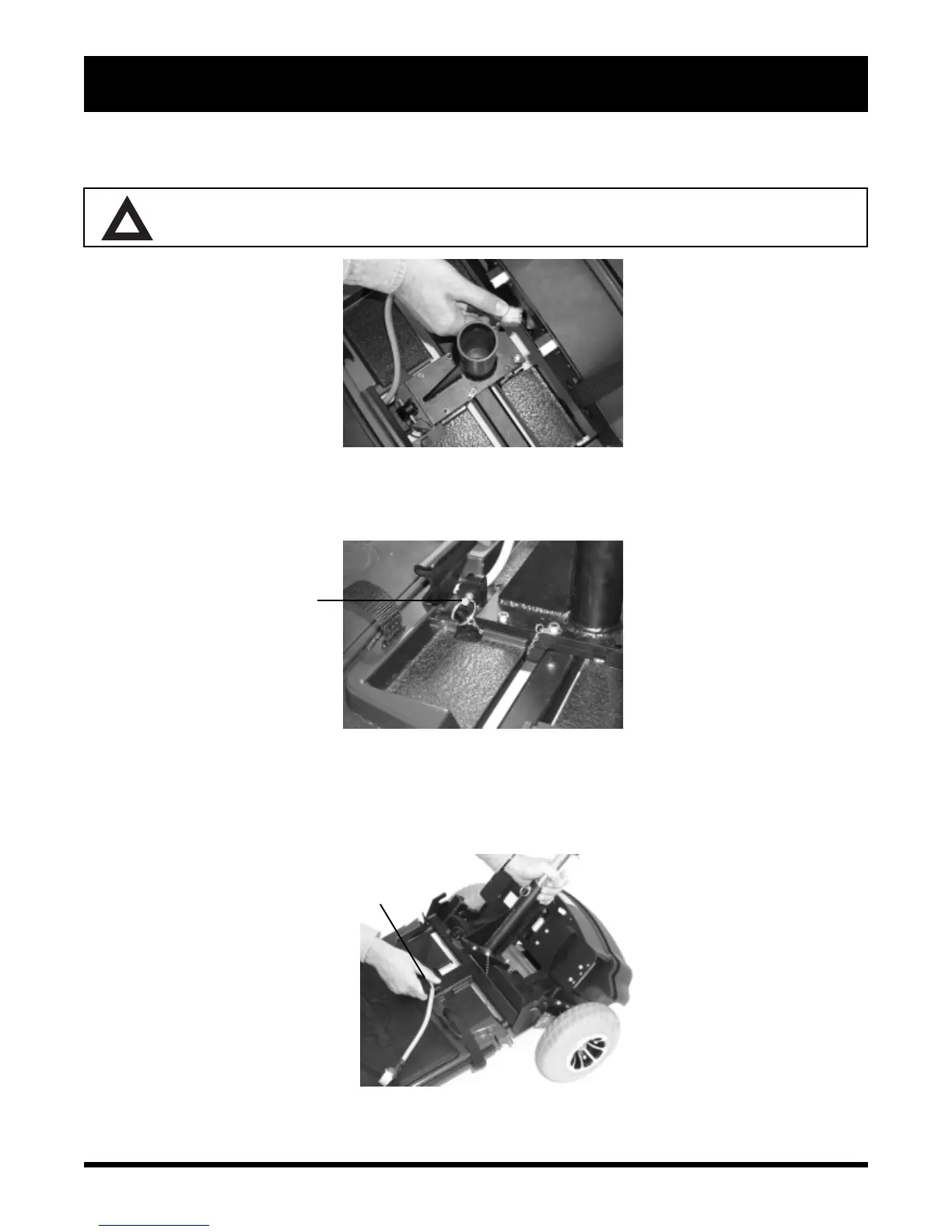

7. Unplug the front-to-rear harness that connects the tiller console to the rear electronics module. See figure 15.
CAUTION! Failure to unplug both battery harnesses and the front-to-rear harness prior to
separating the front and rear sections could result in permanent damage to the scooter.
8. Lift both batteries off the scooter.
9. Remove the detent pin that secures the front and rear sections together. See figure 16.
DETENT PIN
FIGURE 16. DETENT PIN REMOVAL
FIGURE 15. FRONT-TO-REAR HARNESS
11. Completely lower the tiller to the center of the scooter chassis.
NOTE: Steer the tiller to the right before lowering it. The tiller will sit slightly to the left when fully lowered.
FIGURE 17. FRAME SEPARATION
HANDHOLD
10. Pull up on the handhold (located on the front section) and push back on the seat post then gently separate the
sections of the scooter. See figure 17.
