MV600 21
III. BATTERIES AND CHARGING
Battery Securement and Strap Routing

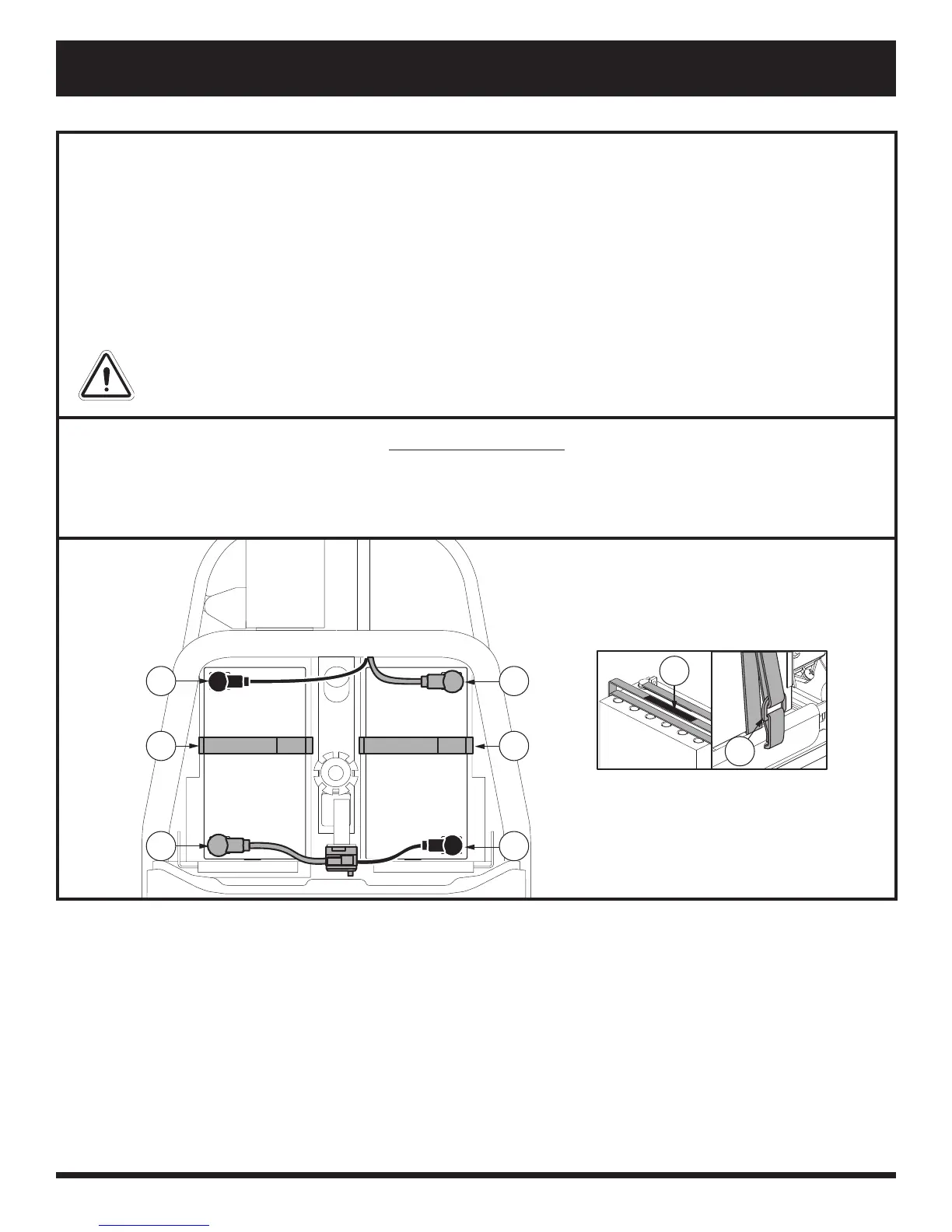

Figure 16. Battery Strap Diagram
1. Secure the batteries in the battery wells by routing the provided battery straps through the battery well slots
as shown.
2. Ensure the short strap runs over the top of the long strap.
NOTE: Before securing the straps, ensure the D-ring is positioned as shown here. The D-ring should be
positioned within 1 inch (2.54 cm) of, but never touch, the battery well.
3. Any excess strapping should be placed facing the back, or next to the seat post, of the vehicle.
WARNING! The battery straps should never be positioned under the battery
IDENTIFICATION KEY
1
4
2
3
2
3
2
2
1. REUSABLE FASTENER
2. BATTERY TERMINAL
3. SHORT STRAP
4. D-RING
