17Zoom
Your Zoom is a motorized electric scooter designed to enhance your personal mobility. Your Zoom is an
indoor/outdoor scooter that was designed to travel primarily on smooth surfaces such as pavement, roads,
parking lots, floors, and driveways. For easy transportation or storage, you can disassemble your scooter
into seven components. See figure 5.
CONTROL CONSOLE ASSEMBLY
The control console assembly houses all of the controls you need to drive your scooter, including the key
switch, the speed adjustment dial, the throttle control lever, the battery condition metre, the horn button,
and the light switch. See figure 6.
WARNING! Do not expose the control console assembly to moisture. In the event that the console
does become exposed to moisture, do not attempt to operate your scooter until the control
console assembly has thoroughly dried.
BATTERY CONDITION METRE
THROTTLE
CONTROL LEVER
(REVERSE)
LIGHT SWITCH
SPEED
ADJUSTMENT
DIAL
KEY SWITCH
KEY
HORN BUTTON
THROTTLE
CONTROL LEVER
(FORWARD)
IV. YOUR ZOOM

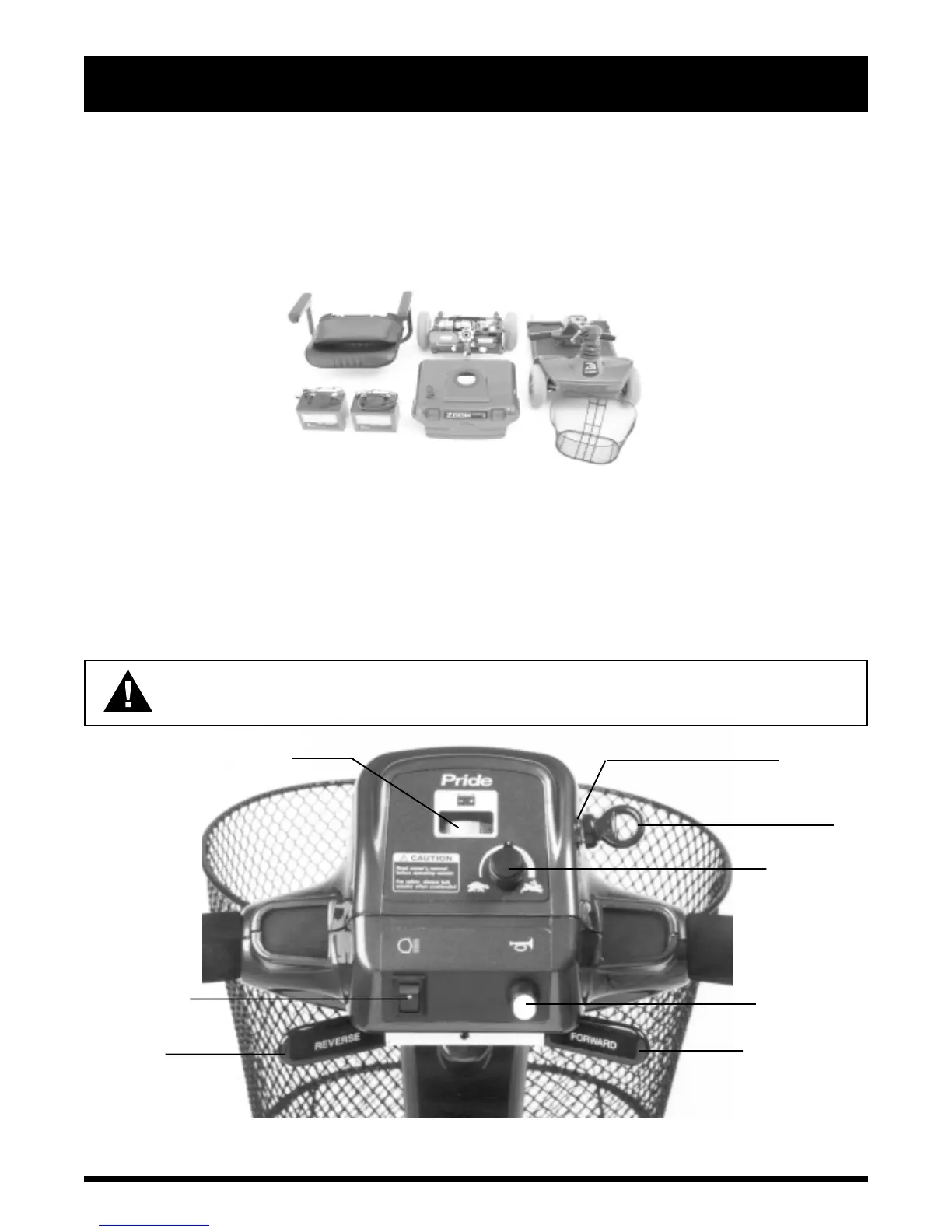

FIGURE 5. SEVEN SCOOTER COMPONENTS
SEAT
FRONT SECTION
BASKET
BATTERIES
REAR SHROUD
REAR SECTION
FIGURE 6. CONTROL CONSOLE ASSEMBLY
