1. Turn the tiller adjustment lever anticlockwise until it is loose. If the tiller adjustment lever comes in
contact with the tiller basket, pull it outward, turn it clockwise, and release it. Continue to loosen until
the tiller is able to move. See figure 10.
2. Press the release buttons and move the tiller to a comfortable position. See figure 10A.
3. Turn the tiller adjustment lever clockwise until it is tight. If the tiller adjustment lever comes in contact
with the tiller basket, pull it outward, turn it anticlockwise, and release it. Continue to turn the lever
until it is tight. The tiller may be lowered to the centre of the floorboard and locked in place for storage.
See VIII. Disassembly and Assembly.

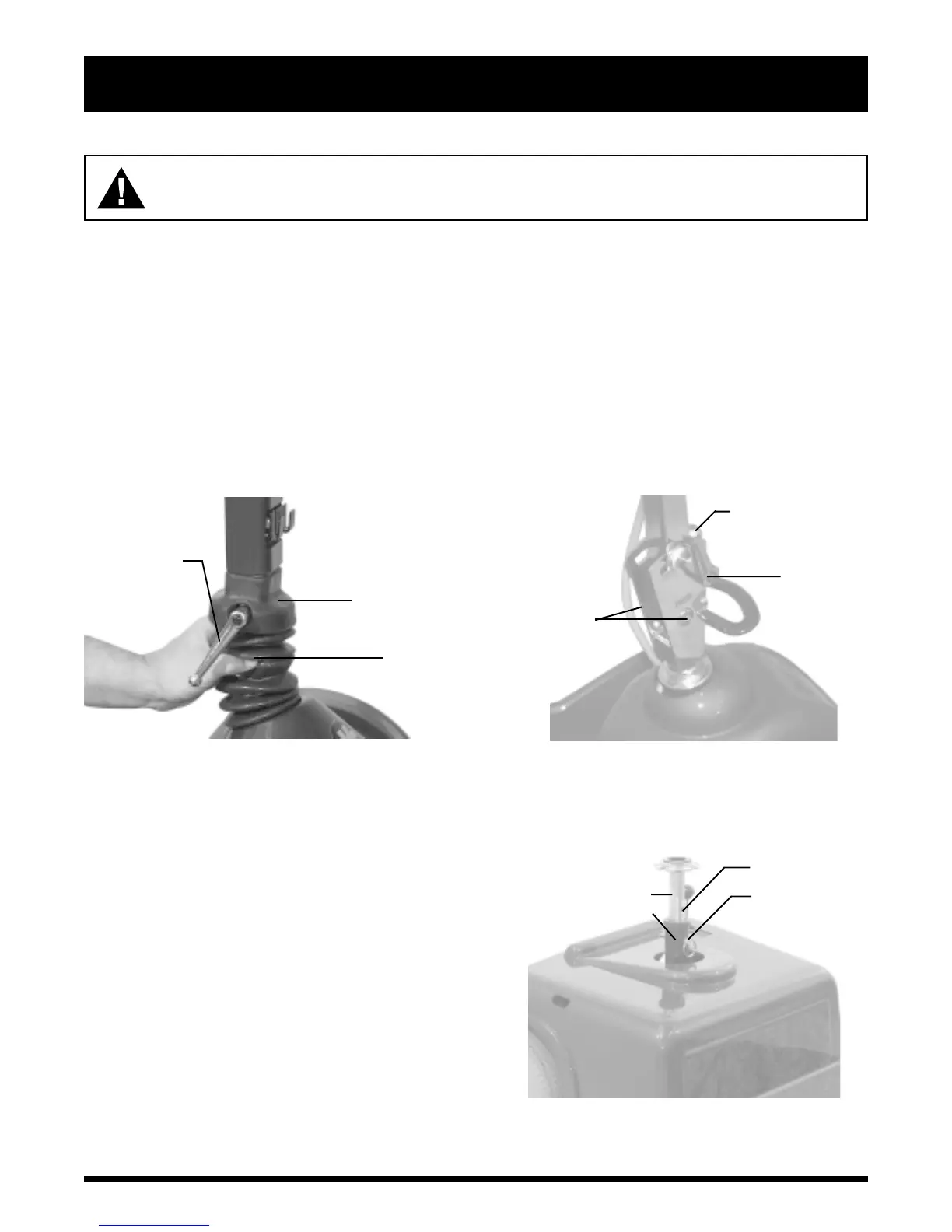

VII. COMFORT ADJUSTMENTS
FIGURE 11. SEAT HEIGHT ADJUSTMENT
UPPER SEAT POST
LOCATING HOLES
BALL DETENT PIN
FIGURE 10A. ADJUSTING THE TILLER ANGLE
(TILLER BOOT REMOVED)
TILLER ADJUSTMENT
LEVER
RELEASE
BUTTONS
SLIDE LEVER
OUT TO
REPOSITION
FIGURE 10. ADJUSTING THE TILLER ANGLE
TILLER ADJUST-
MENT LEVER
TILLER RELEASE
BUTTON
TILLER BOOT
LOWER SEAT POST
SEAT HEIGHT ADJUSTMENT
The seat can be repositioned to one of three different
heights. See figure 11.
1. Push forwardon the seat lock lever and lift the seat up
and off of the scooter. see figure 12
2. Use the attached ring to pull and remove the ball detent
pin from the lower seat post.
3. Raise or lower the upper seat post to the desired seat
height.
4. While holding the upper seat post at that height, match
up the holes in the upper seat post with the holes in
the lower seat post.
5. Fully insert the ball detent pin.
6. Replace the seat.
You can adjust the tiller to many positions. The tiller adjustment lever locks the tiller in place. It has a
spring-loaded mechanism that enables you to rotate it and change its position.
WARNING! Remove the key before adjusting the tiller or the seat. Never attempt to adjust the tiller
or the seat while the scooter is in motion.
