97
Appendix B
Outline Drawings
NOTE: Dimensions are in inches [mm].
PIXIS Camera: C-mount (Air-Cooled)

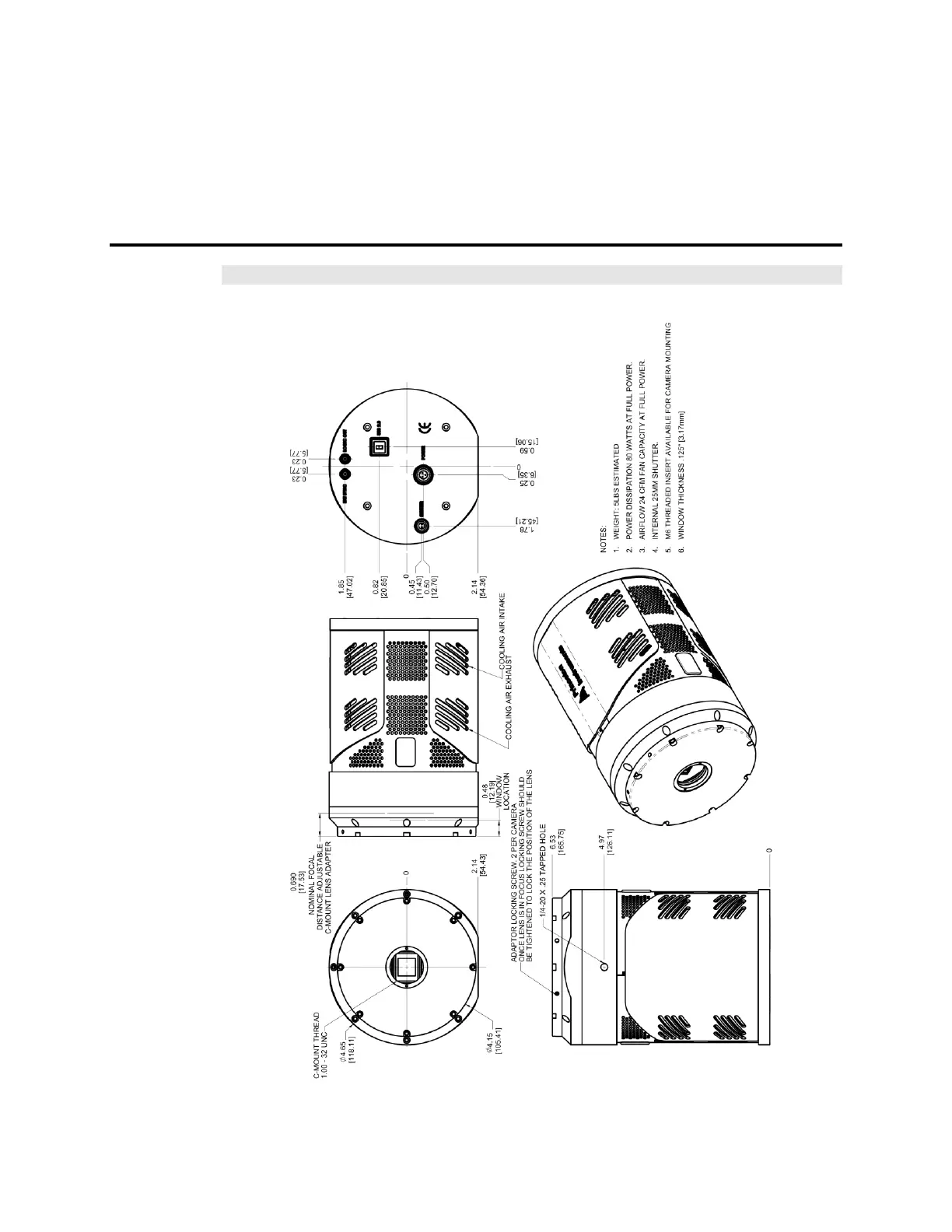

Figure 58. Adjustable C-Mount: Internal Shutter (Air-cooled)
