INTRODUCTION
POSITIONING
• The air conditioner must stand upright on a
flat surface
• Do not position near a bath, shower, sink or
other permanently damp or wet areas.
• Place the air conditioner at least 50cm
away from any wall, curtains or heat
sources to ensure adequate air circulation
(Fig.1).
• Ensure that the mains socket outlet remains
accessible when the air conditioner is in
use.
• Ensure that there is free access to the air-
inlet and air-outlet vents.
INSTALLATION
• Screw the exhaust hose onto the exhaust
hose adapter, turning the hose anti-
clockwise.
• Screw the exhaust hose onto the exhaust
connector on the rear of the air conditioner,
turning anti-clockwise (Fig.2).
• Adjust the length of the window guide to fi
the width of your window. The length of the guide is adjustable. If it is too long it
can be cut to size.
• Fit the exhaust hose adapter into the window guide.
• Close the window onto the window guide so that is securely held in place.

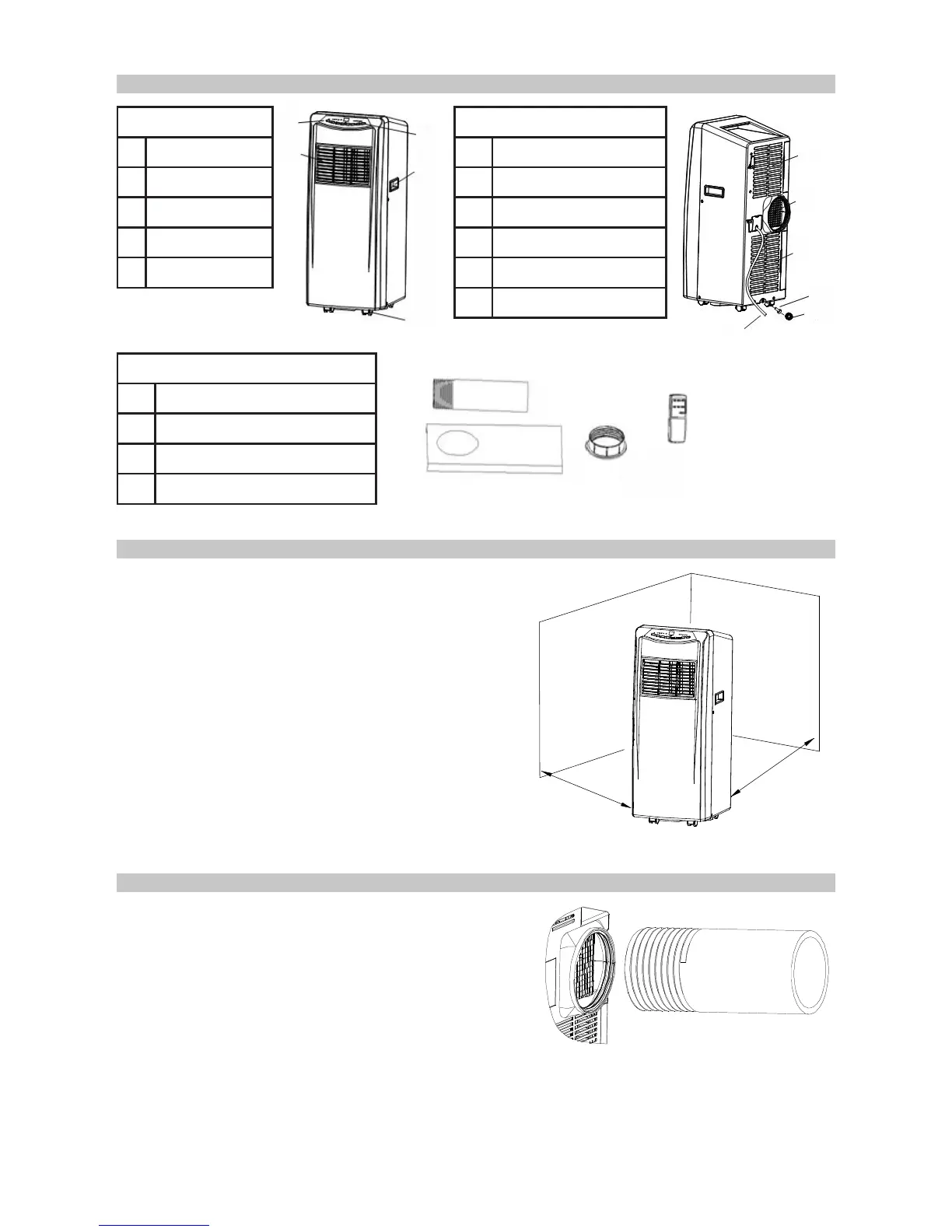

Front
1 Control panel
2 Air-outlet
3 Power button
4 Handle
5 Castor
Back
6 Filter frame upper
7 Exhaust connector
8 Filter frame lower
9 Rubber plug
10 Plug cap
11 Power cord
Accessories
12 Exhaust hose
13 Adjustable window guide
14 Exhaust hose adapter
15 Remote control
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Fig.1
50cm
50cm
Fig.2
.
t
