5
Positioning
Warning: before using the local air conditioning, keep it upright for at least two hours.
• The air conditioner must stand upright on an even surface.
• Do not position near a bath, sink or other permanently damp or wet areas.

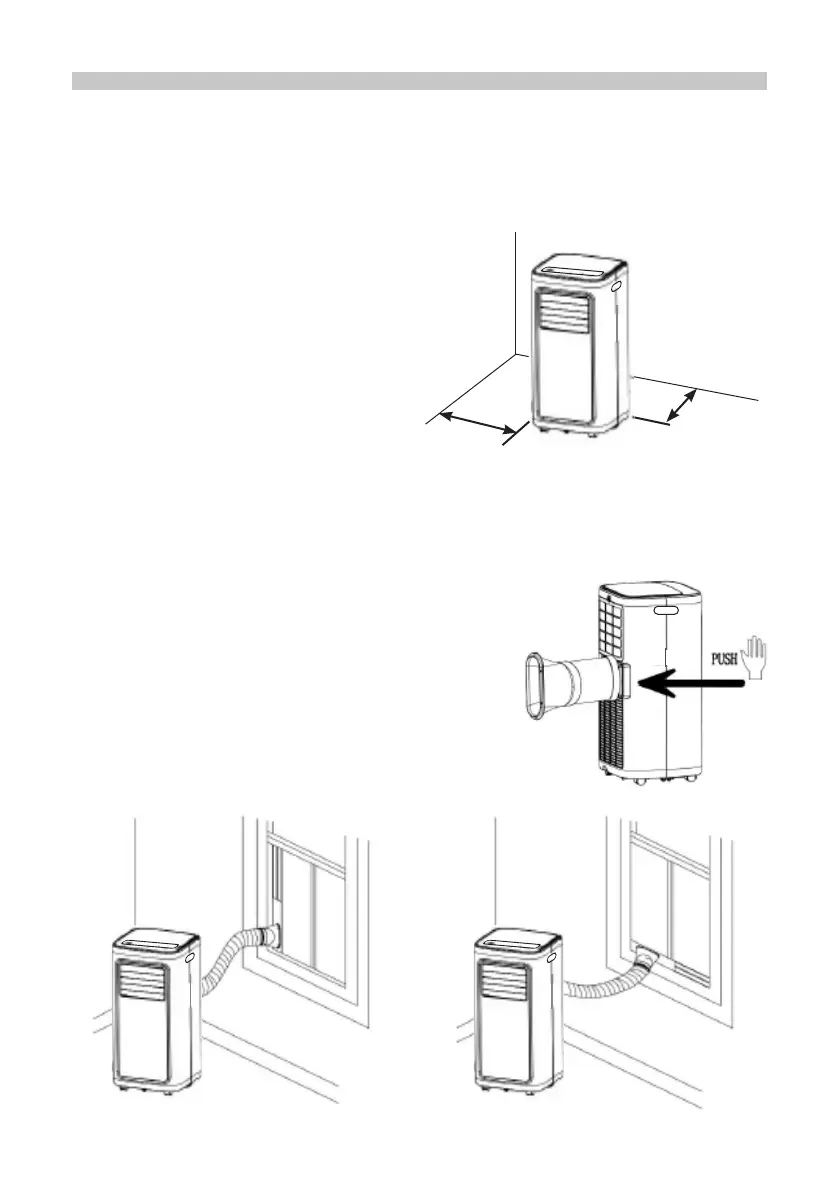

• Place the air conditioner at least 50cm away from any other wall, curtains or heat
sources to ensure adequate air circulation.
• Ensure that the mains socket outlet
remains accessible when the air
conditioner is in use.
• Ensure that there is free access to the
air-inlet and air-outlet vents.
POSITIONING & INSTALLATION
Ventilation Installation
Note: The window kit is only designed for use with casement windows.
• Fit the exhaust hose onto the air outlet duct on the rear of the air conditioner,
having removed the grille by sliding it to the right. Slide the pipe into position by
pushing it to the left until fully home.
• Adjust the length of the window guide to t the
width of your window. The length of the guide is
adjustable. If it is too long it may be cut to size.
• Fit the exhaust hose adapter into the window guide.
• Close the window onto the window guide so that is
securely held in place.
Min 50cm
Min 50cm
