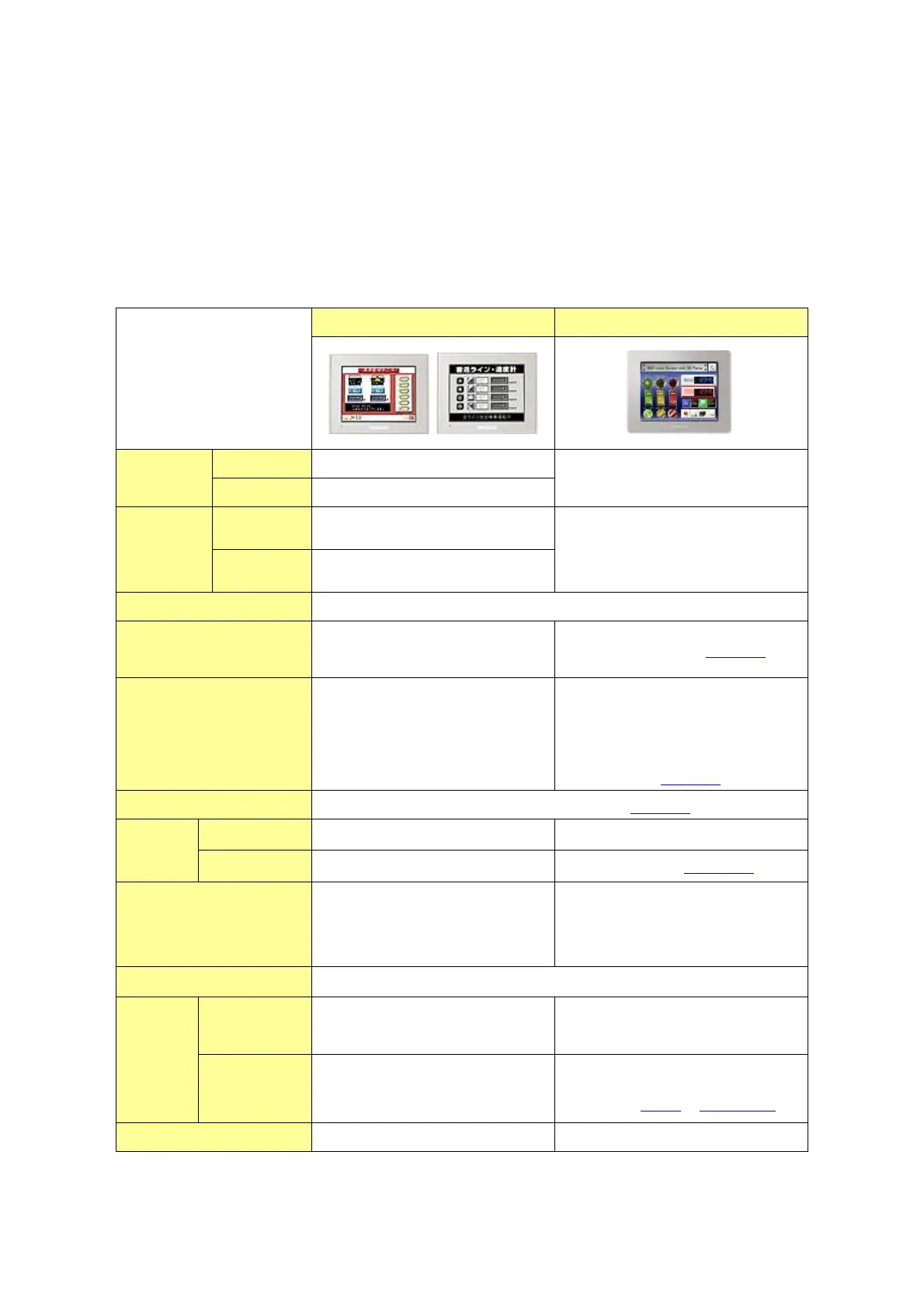

Chapter 1 Specification Comparison
1.1 Specifications of GP-3301S/L and GP-4301TM
GP-3301S/L
GP-4301TM
Display
Type
GP-3301S
STN color LCD
NEW! TFT Color LCD
GP-3301L
Monochrome LCD
Display
Colors,
Levels
GP-3301S
4,096 colors
UP! 65,536 colors
GP-3301L
Monochrome, 16 levels
Display Resolution
QVGA (320x240 pixels)
Panle Cutout
Dimensions (mm)
156(W)x123.5(H)
NEW! φ22 ->See 2.4
External
Dimensions
(mm)
167.5(W)x135(H)x59.5(D)
NEW!
163(W)x129.4(H)x56.5(D)
*The rear module is included.
->See 2.5
Touch Panel Type
Resistive film (Analog) ->See 2.2
Memory
Application
6MB
UP! 8MB
Backup
320KB
128KB ->See 2.11
Backup Battery
Secondary Battery
(Rechargeable Lithium
battery)
-
Rated Input Voltage
DC 24V
Serial
I/F
COM1
D-Sub 9 pin (plug)
RS-232C/422/485
D-Sub 9 pin (plug)
RS-232C/422/485
COM2
D-Sub 9 pin (socket)
RS-422/485
-
->See 2.7.1 / Chapter 4
Ethernet I/F
-
NEW! 10BASE-T/100BASE-TX

Pro-face AST3301-B1-D24 Specifications

General

Brand	Pro-face
Model	AST3301-B1-D24
Category	Touch Panel
Language	English
