Chapter 2 Compatibility of Hardware

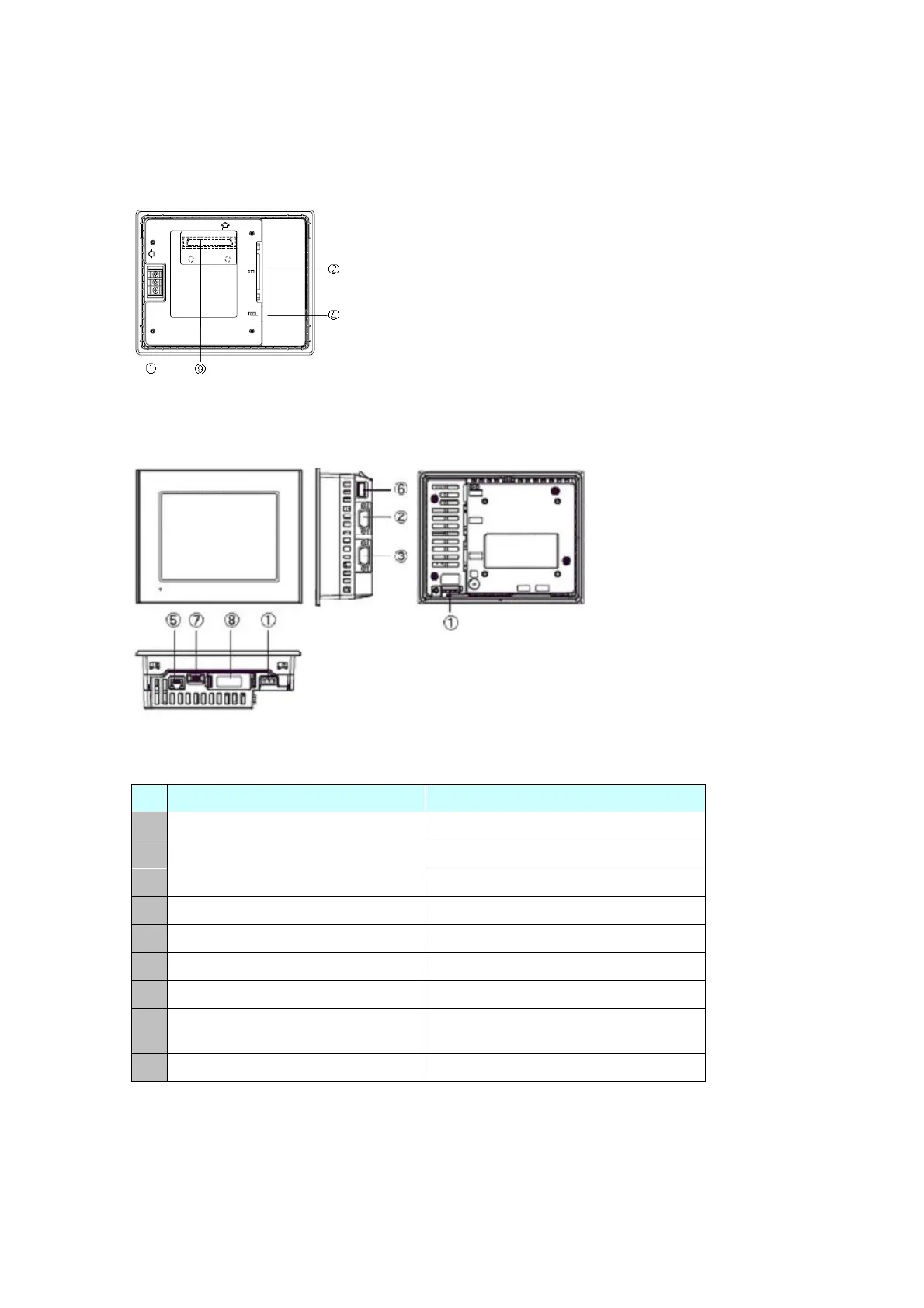

2.1 Locations of connector
Connector locations on GP-377R/377S/377L GP-4301TW are as follows;
GP-377R/377S/377L
GP-4301TW
Interface names
GP-377R/377S/377L
GP-4301T/GP-4301TW
①
Power Input Terminal Block
Power Connector (DC)
②
Serial I/F(COM1)
③
-
Serial I/F(COM2)
④
Tool Connector
-
⑤
-
Ethernet I/F
⑥
-
USB I/F(Type A)
⑦
-
USB I/F(Type mini B)
⑧
-
SD cardＩ/Ｆ
(* only GP-4301T)
⑧
Auxiliary I/F (AUX)
-
