GP-4402WW/GP-4502WW Hardware Manual
33
Ethernet Port
Introduction
The GP-4402WW/GP-4502WW is equipped with an IEEE802.3 compliant Ethernet
communication port that transmits and receives data at 10 Mbps or 100 Mbps.
NOTE:
Ethernet networks must be installed by a trained and qualified person.
One to one (1:1) connections must be made with a hub or a switch. You can use the 1:1
connection with a cross cable depending on the connected PCs and network cards.
Characteristics
The table describes the different Ethernet characteristics:

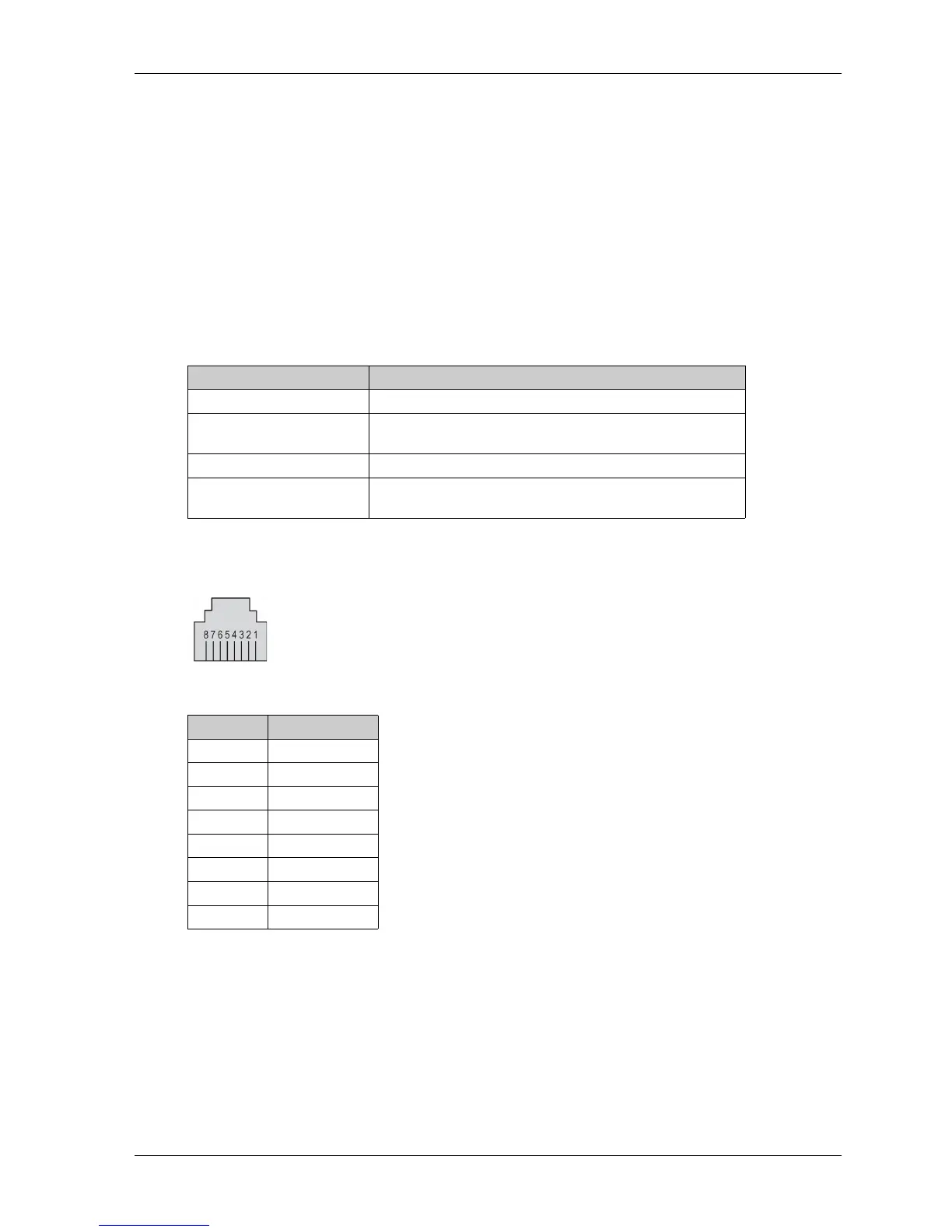

Pin Assignment
The figure shows the RJ45 Ethernet connector pin assignment:
The table describes the RJ45 Ethernet connector pins:
NOTE: The GP-4402WW/GP-4502WW supports the MDI/MDIX auto-crossover cable function.
You do not have to use special Ethernet crossover cables to connect devices directly to this port
(connections without an Ethernet hub or switch).
Characteristics Description
Connector type RJ45
Driver
10 M half duplex (auto negotiation)
100 M full duplex (auto negotiation)
Cable type Shielded
Automatic cross-over
detection
Yes
Pin Signal
1TD+
2TD-
3RD+
4–
5–
6RD-
7–
8–
