7

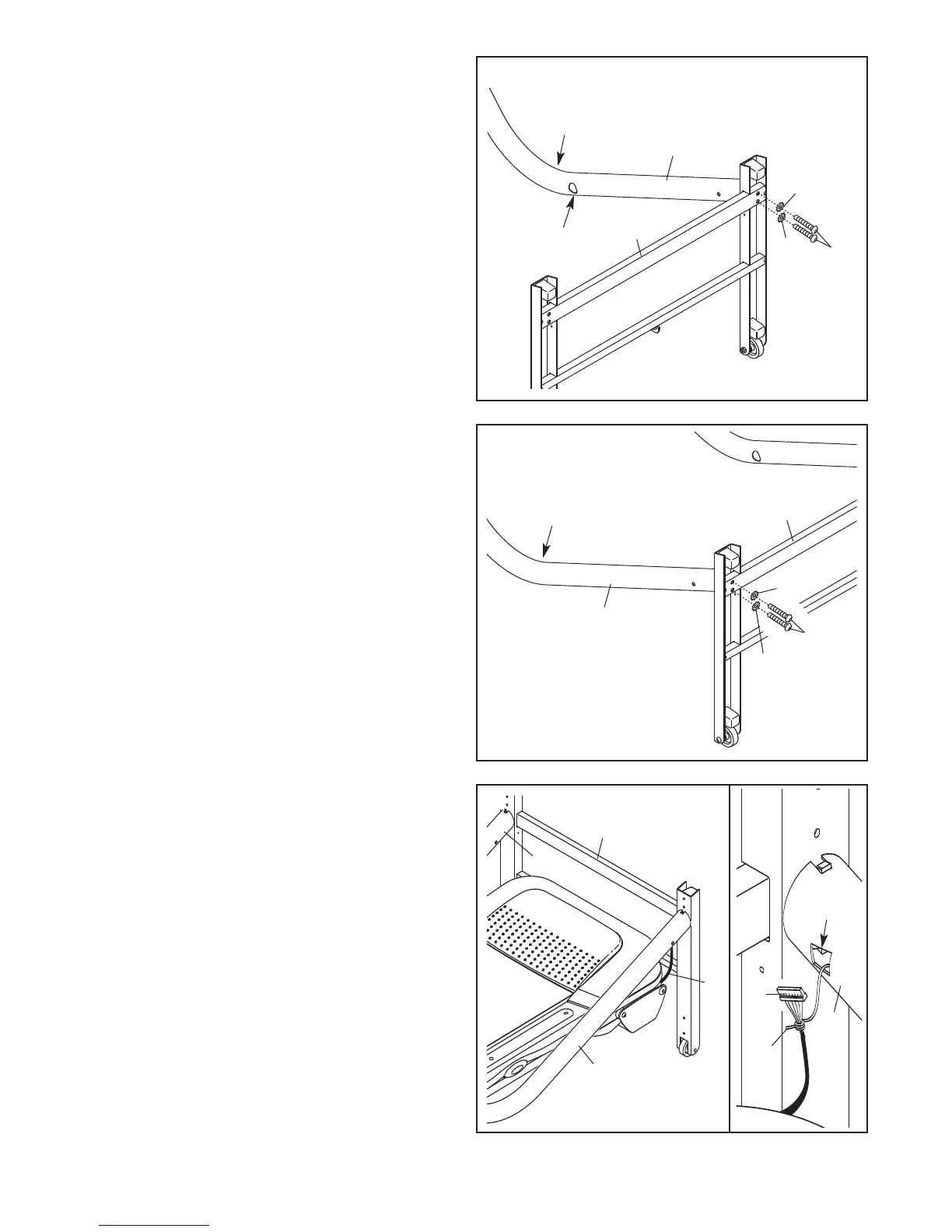

3. Orient the Right Upright (36) as shown, and at-
tach it to the Base (48) with two Upright Bolts
(27) and two Upright Star Washers (39); do not
tighten the Upright Bolts yet.
48
36
39
39
27
3
4. Set the Base (48) near the front of the treadmill
as shown.
Cut
the tie (not shown) securing the Upright Wire
(28) in a bundle. Discard the tie.
See the inset drawing. Locate the long tie in the
Right Upright (36). Wrap the tie securely around
the connector on the Upright Wire (28) as shown,
and insert the connector into the large hole in the
Right Upright. Then, pull the opposite end of the
tie until the Upright Wire is pulled through the
Right Upright.
Raise the Uprights (31, 36) so that the Base (48)
is flat on the floor. Make sure that the end of the
Upright Wire (28) does not fall into the Right
Upright.
4
28
Tie
48
28
36
31
Large
Hole
2. Have a second person orient the Base (48) as
shown.
Identify the Left Upright (31), which has a large
h
ole near the bend.
Orient the Left Upright (31) as shown, and attach
it to the Base (48) with two Upright Bolts (27) and
two Upright Star Washers (39); do not tighten
the Upright Bolts yet.
48
27
39
39
3
1
Bend
Large Hole
Bend
2
36
To Next Page
