ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials; do not
dispose of the packing materials until assembly is completed. Note: The underside of the walking belt is coated
with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the
walking belt or the shipping carton. This is a normal condition and does not affect treadmill performance. If there
is lubricant on top of the walking belt, wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex keys and your own phillips screwdriver , rubber
mallet , adjustable wrench , and needlenose pliers .

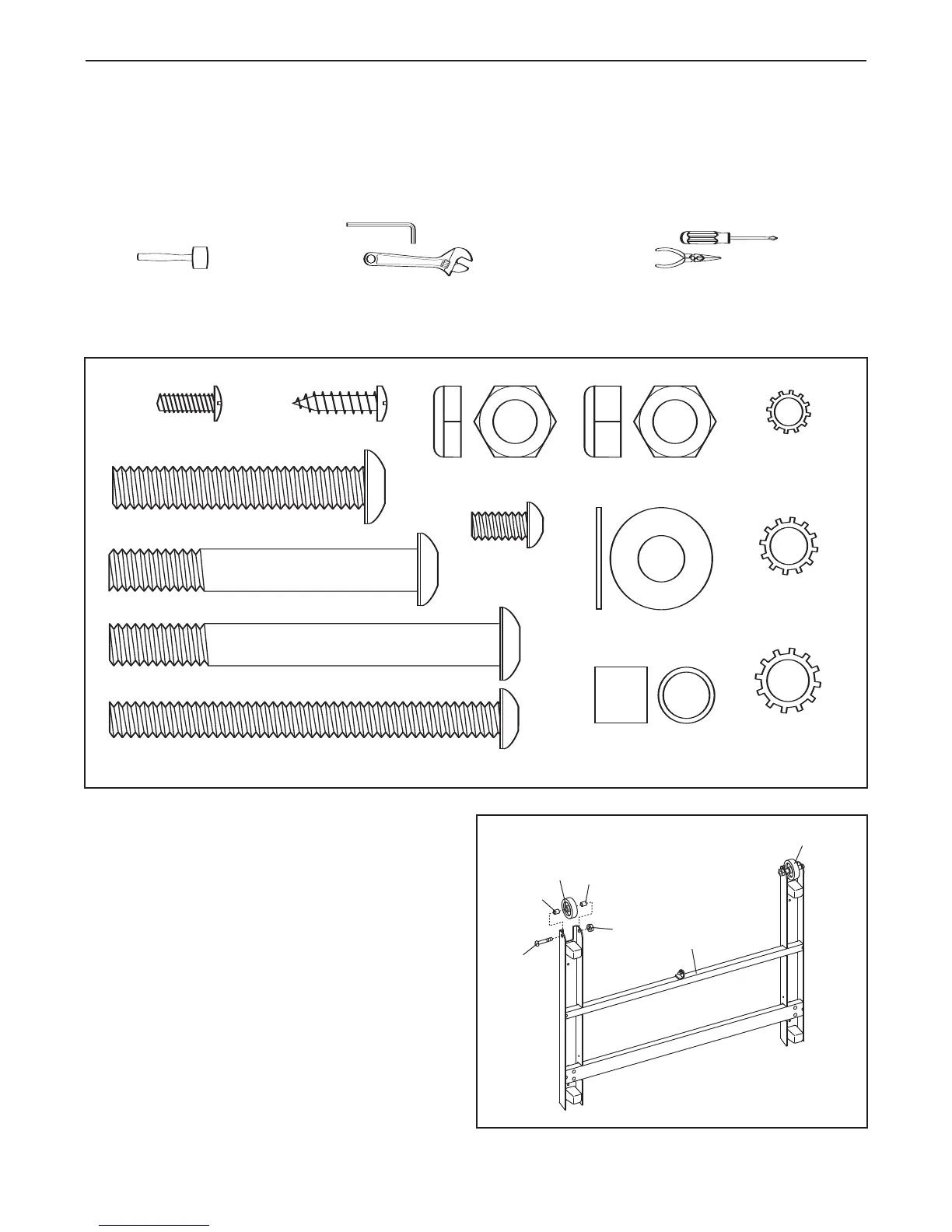

To identify assembly hardware, see the drawings below. The number in parentheses below each drawing is the
key number of the part, from the PART LIST on page 27. The number following the parentheses is the quantity
used in assembly.
To avoid damaging plastic parts, do not use power tools for assembly.
/ S ( 9)–1
1
3/4” Tek Screw (58)–8
1
Nut (47)–2
3/4" Screw (2)–10
Frame Washer
(33)–2
Silver Ground
Screw (11)–2
Wheel Spacer
(44)–4
Console
Bolt (22)–2
Upright Bolt (27)–4
1/4" Star Washer
(21)–2
Wheel Nut (35)–2
Wheel Bolt (14)–2
Frame Bolt (32)–2
Wheel Bolt (14)–2
Frame Bolt (32)–2
Upright Star
Washer (39)–4
F
Handrail Bolt (20)–4
Handrail Star
Washer (19)–4
1 1/2" Screw (97)–4
1. Attach a Wheel (45) to one side of the Base (48)
with a Wheel Bolt (14), two Wheel Spacers (44),
and a Wheel Nut (35) as shown. Do not over-
tighten the Wheel Nut; the Wheel should turn
freely.
Attach the other Wheel (45) to the other side
of the Base (48) in the same way.
1
6
48
45
45
44
44
14
35
To Next Page
