11
7

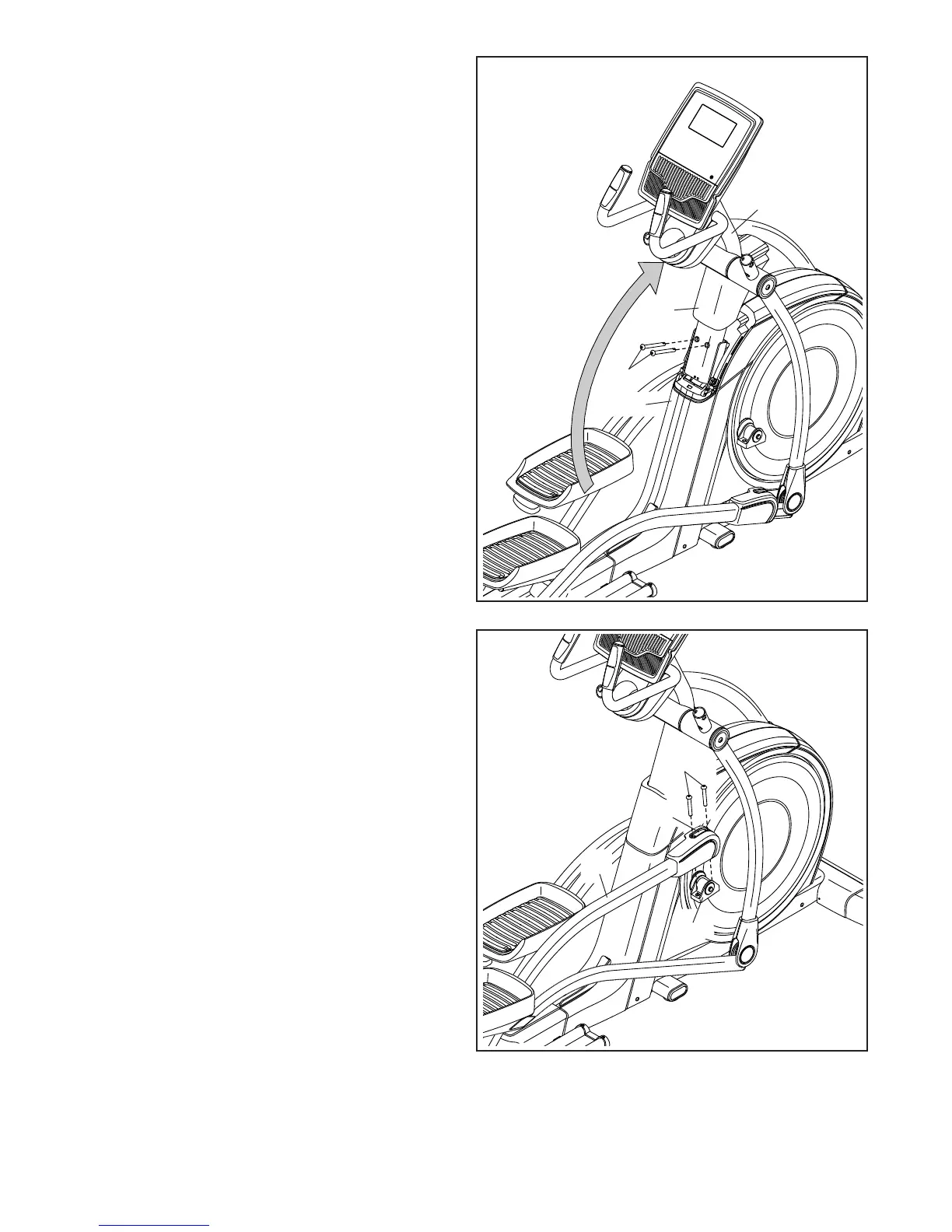

7. Locate the Right Upper Saddle Bracket (121) on
the Right Roller Arm (45). Next, locate the Lower
Saddle Bracket (26) on the right side of the
elliptical.
Attach the Right Upper Saddle Bracket (121)
to the Lower Saddle Bracket (26) with two
M10 x 70mm Screws (139).
45
26
121
139
6
6. Raise the Upright (4) to the vertical position.
While a second person holds the Shield Cover
(56) out of the way, secure the Upright with two
M10 x 75mm Screws (142).
Then, slide the Shield Cover (56) downward onto
the Rear Shield (75).
142
56
4
75
