10. Make sure that all parts are properly tightened before you use the elliptical. Extra parts may be included.
Place a mat beneath the elliptical to protect the floor.
9

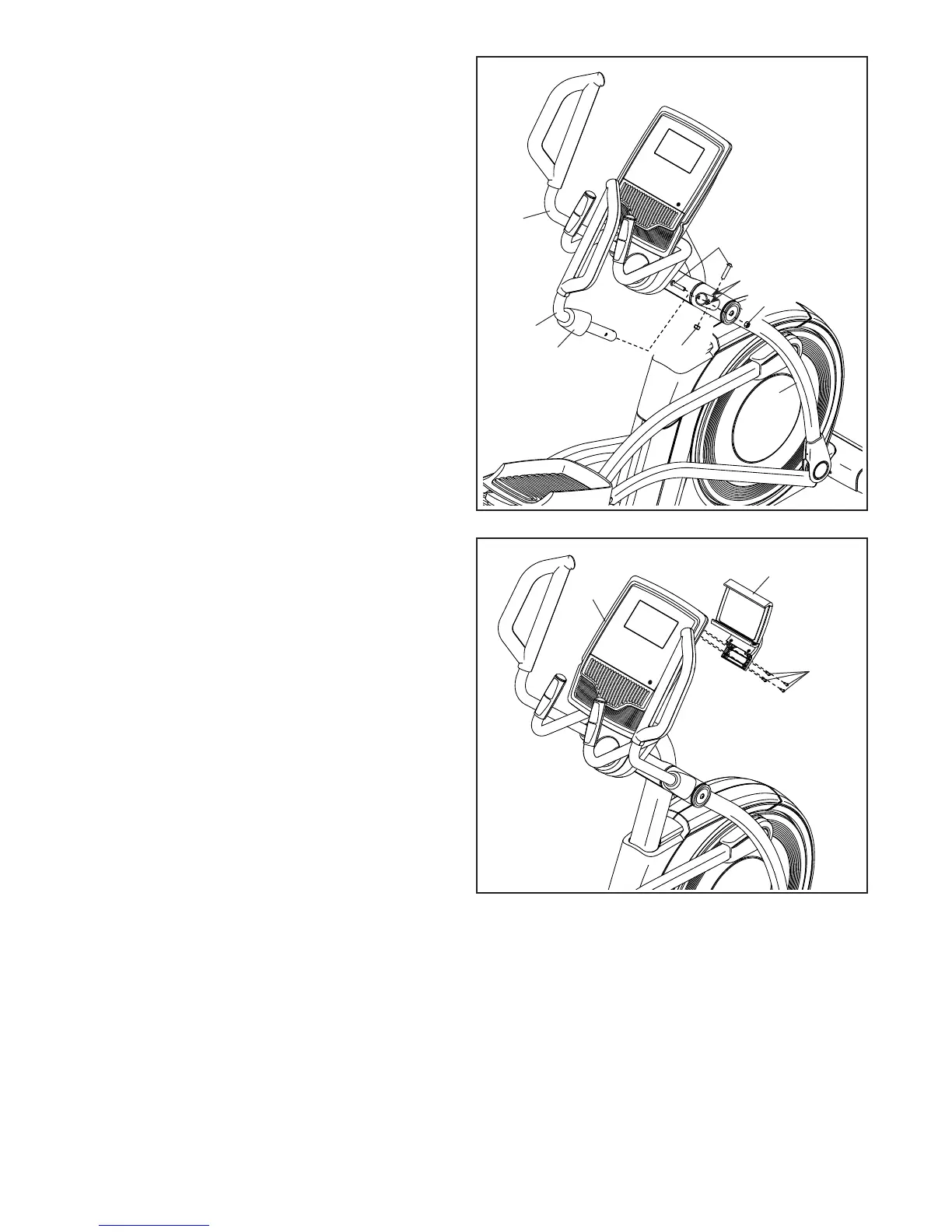

9. Attach the Tablet Holder (50) to the Console (7)
with four Tablet Holder Screws (52); start all the
Screws, and then tighten them.
50
52
7
8
8. Identify the Right Upper Body Arm (61) and an
Upper Body Arm Cover (77). Slide the Upper
Body Arm Cover onto the Right Upper Body Arm
as shown.
Attach the Right Upper Body Arm (61) to
the Right Upper Body Leg (36) with two
M10 x 45mm Bolts (143) and two M10 Locknuts
(99); make sure that the Locknuts are in the
hexagonal holes (A).
Then, slide the Upper Body Arm Cover (77)
downward and turn it so that it is flush with the
Right Upper Body Leg (36).
Attach the Left Upper Body Arm (47) in the
same way.
61
77
47
99
A
36
143
99
To Next Page
