12
14

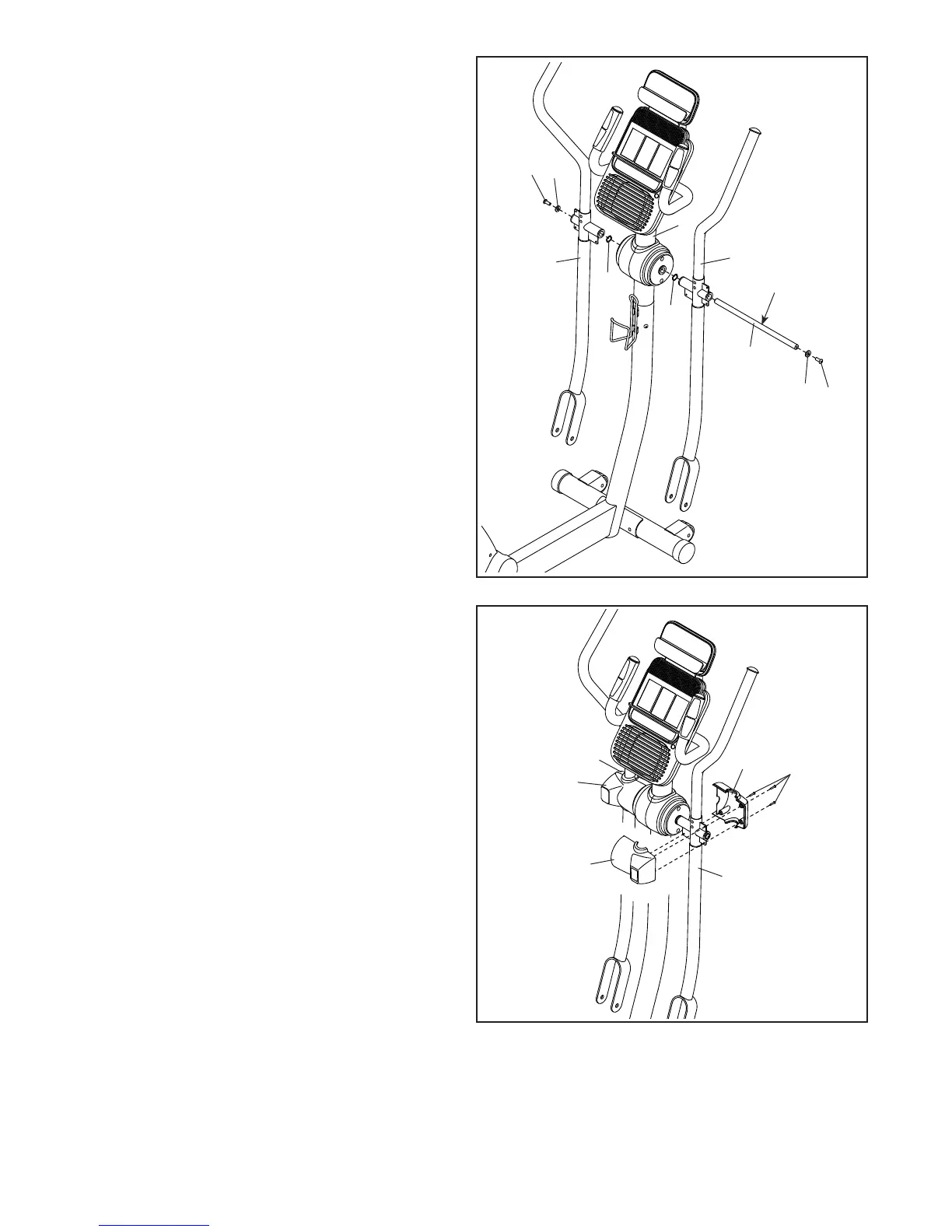

14. Using a small plastic bag to keep your fingers
clean, apply a generous amount of the included
grease to the Pivot Axle (74) and to two Wave
Washers (111).
Insert the Pivot Axle (74) into the Upright (3) and
center it.
Slide a Wave Washer (111) onto each end of the
Pivot Axle (74).
Next, orient the Right Upper Body Leg (11) as
shown, and slide it onto the right end of the Pivot
Axle (74). Slide the Left Upper Body Leg (12)
onto the left end of the Pivot Axle.
At the same time, tighten an M8 x 23mm Screw
(84) with an M8 Washer (88) into each end of the
Pivot Axle (74).
88
84
111
88
74
3
84
111
11
12
Grease
15
15. Hold the Right Front Arm Cover (18) and the
Right Rear Arm Cover (19) around the Right
Upper Body Leg (11).
Attach the Arm Covers (18, 19) with three
M4 x 32mm Round Head Screws (105); start
all the Round Head Screws, and then tighten
them.
Attach the Left Front Arm Cover (20) and the
Left Rear Arm Cover (21) in the same way.
20
21
105
19
18
11
To Next Page
