13
16
13
14
108
104
102
104
102

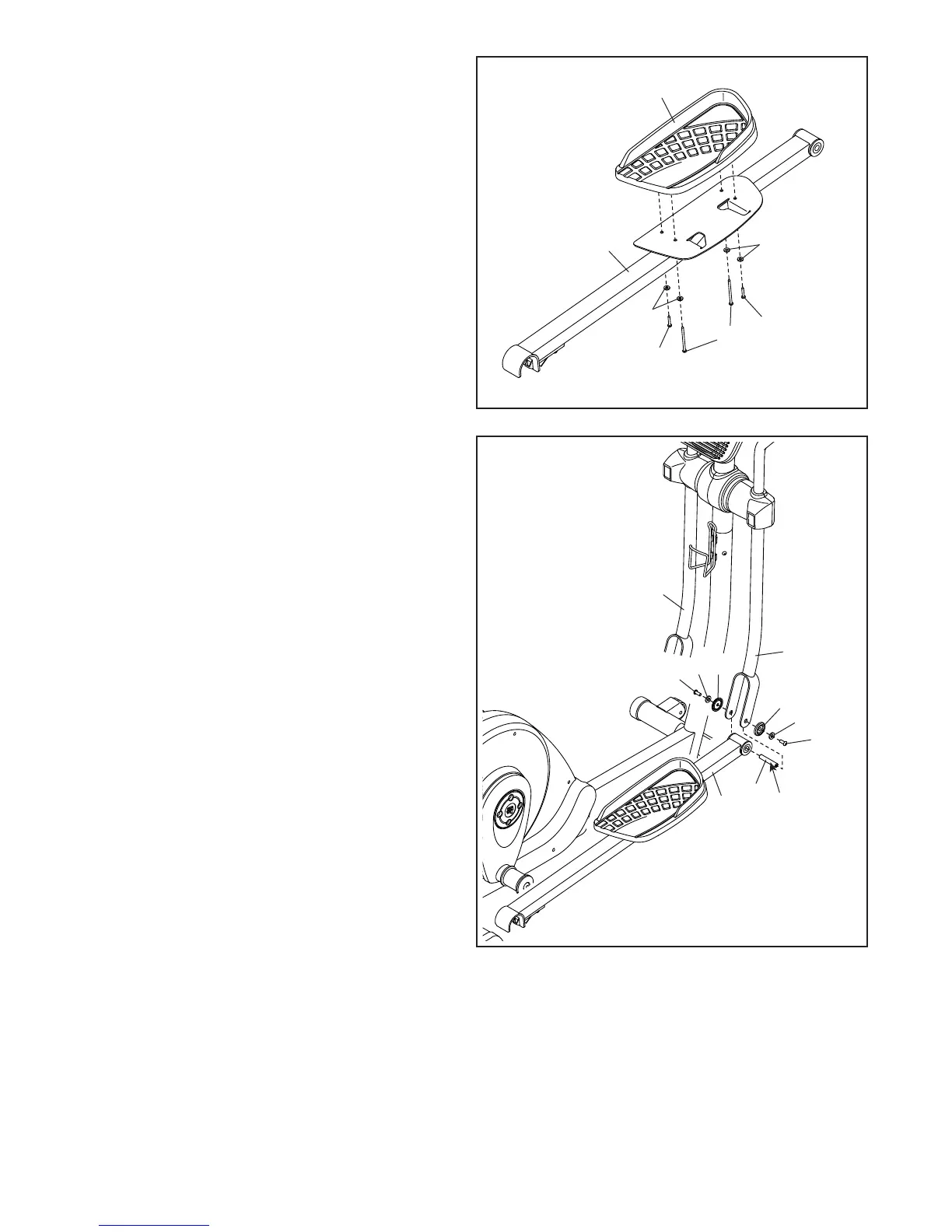

16. Identify the Right Pedal (13) and the Right Pedal
Arm (14).
Attach the Right Pedal (13) to the Right Pedal
Arm (14) with two #10 x 51mm Screws (108),
two #10 x 13mm Screws (104), and four #10
Washers (102); start all the Screws, and then
tighten them.
Attach the Left Pedal (not shown) to the Left
Pedal Arm (not shown) in the same way.
17
17. Apply a small amount of grease to one of the
Pedal Arm Axles (32).
Tighten an M8 x 23mm Shoulder Screw (115)
with an M8 Washer (88) and a Pedal Arm Cover
(31) a few turns into the Pedal Arm Axle (32).
While a second person holds the front end of the
Right Pedal Arm (14) inside the bracket on the
Right Upper Body Leg (11), insert the Pedal Arm
Axle (32) into both parts.
Next, tighten an M8 x 23mm Shoulder Screw
(115) with an M8 Washer (88) and a Pedal Arm
Cover (31) a few turns into the Pedal Arm Axle
(32). Tighten both Shoulder Screws at the
same time; to avoid damaging the Pedal Arm
Covers, do not overtighten the Shoulder
Screws.
Repeat this step to attach the Left Pedal Arm
(not shown) to the Left Upper Body Leg (12).
Grease
115
32
88
31
12
11
14
31
115
88
To Next Page
