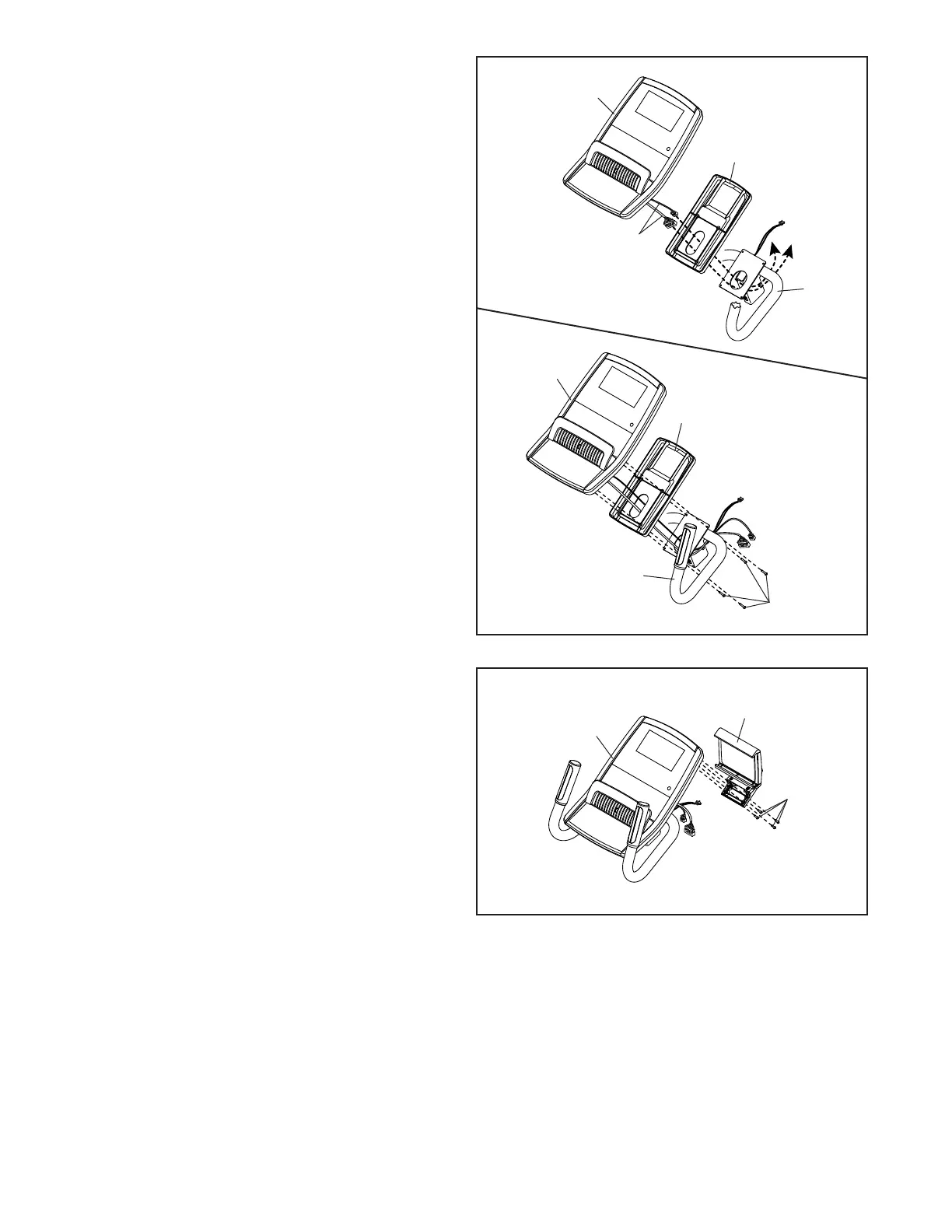

6. See the upper drawing. With the help of a sec-
ond person, orient the Console (5), the Console
Cover (7), and the Console Bracket (4) as
shown. Then, route the wires (A) on the Console
through the Console Cover and the Console
Bracket.
See the lower drawing. Tip: Avoid pinching
the wires. Attach the Console (5) and the
Console Cover (7) to the Console Bracket (4)
with four M4 x 22mm Screws (107); start all the
Screws, and then tighten them.
5
6
111
7. Attach the Tablet Holder (6) to the Console (5)
with four Tablet Holder Screws (111); start all
the Tablet Holder Screws, and then tighten
them.
6
5
5
7
7
4
4
107
A
Avoid pinching
the wires
