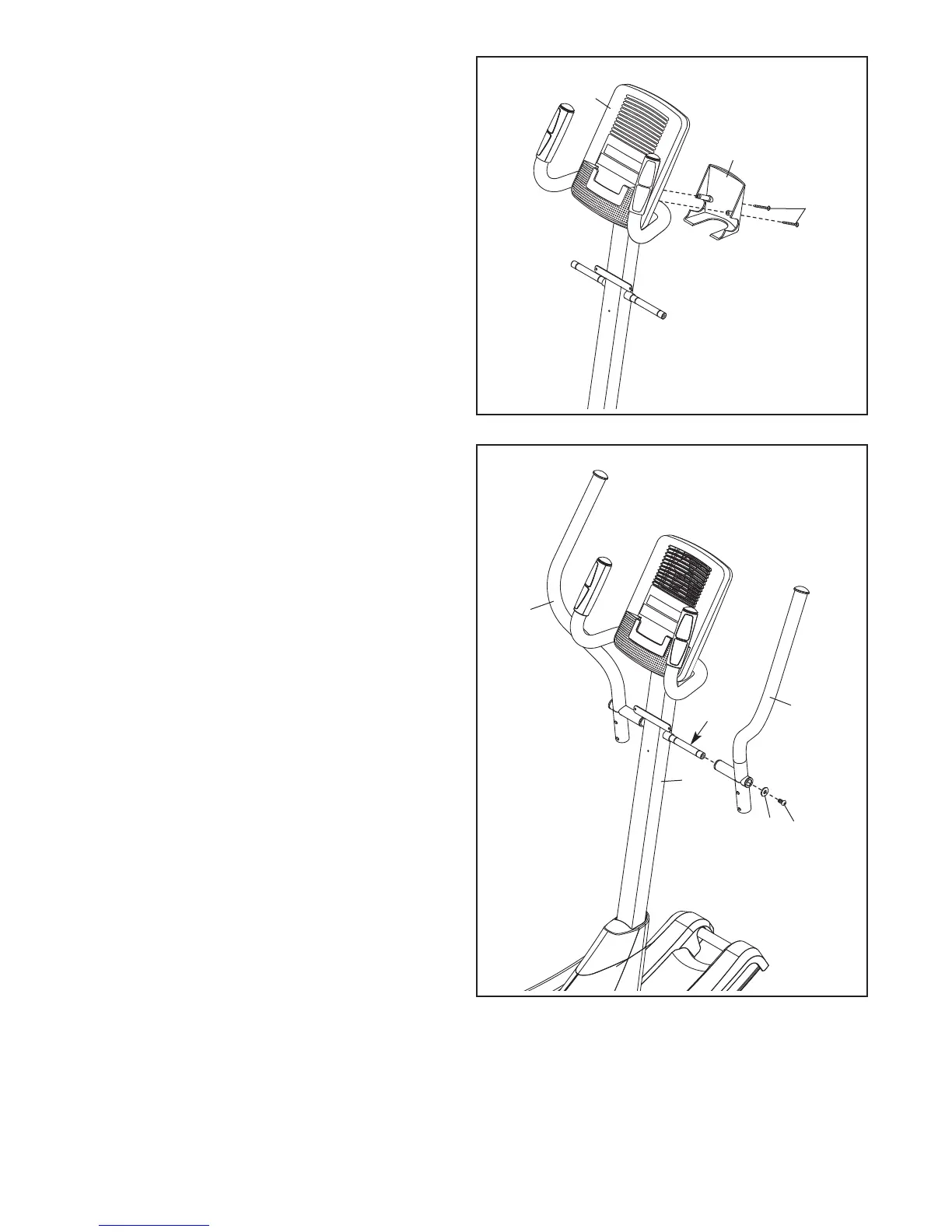

8. Attach the Console Cover (32) to the back of
the Console (4) with two M4 x 48mm Screws
(89).
8
4
32
89
9. Apply some of the included grease to the axle
on the right side of the Upright (2).
Identify the Right Upper Body Arm (9), which is
marked with a “Right” sticker, and orient it as
shown.
Slide the Right Upper Body Arm (9) onto the
right side of the Upright (2).
Attach the Right Upper Body Arm (9) with an
M8 x 20mm Patch Screw (80) and an M8
Washer (33).
Repeat this step to attach the Left Upper
Body Arm (8).
9
8
9
2
33
80
Grease
To Next Page
