11

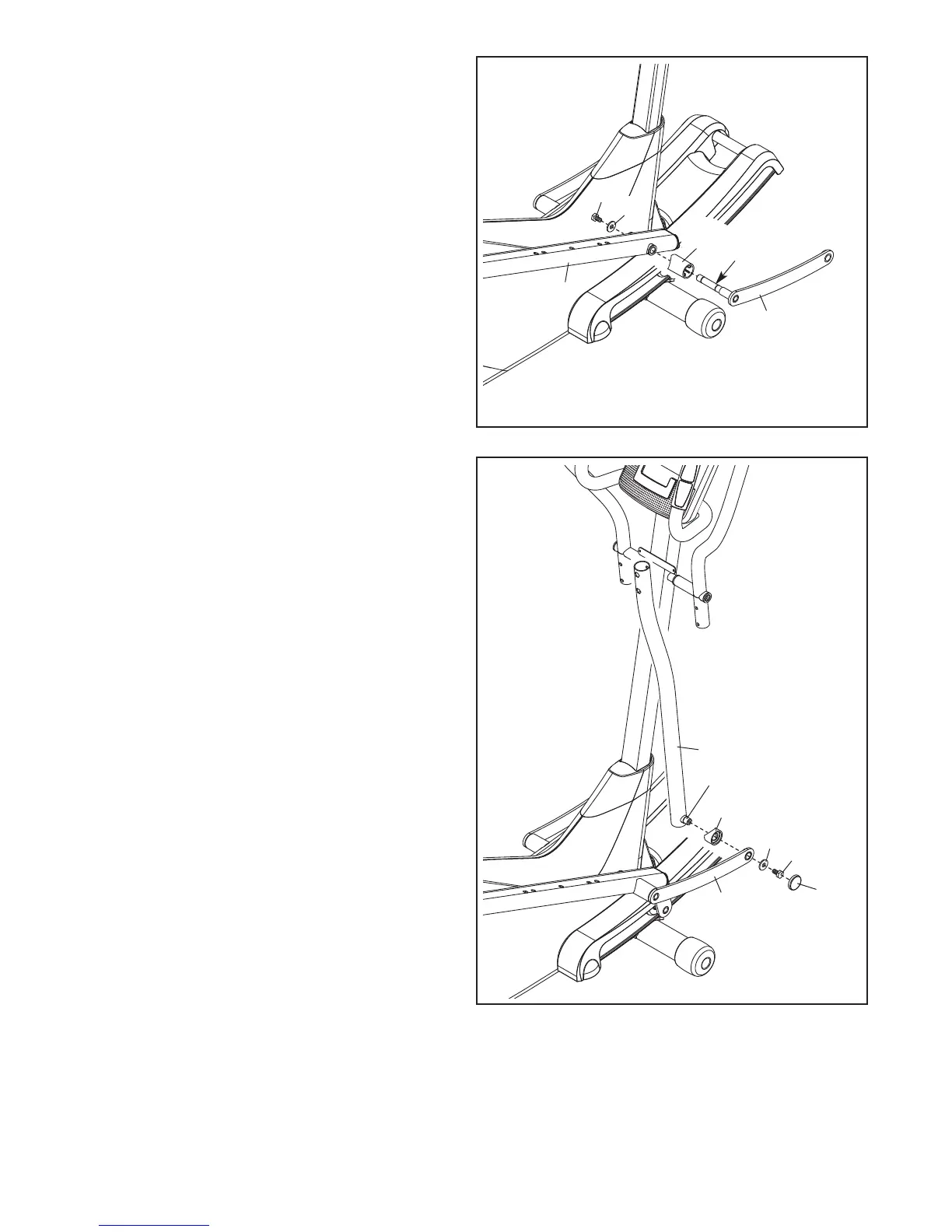

10. Identify the Right Link Arm (98), which is
marked with a “Right” sticker, and orient it as
shown.
Apply some of the included grease to the axle
o
n the Right Link Arm (98).
Slide a Link Arm Cover (103) onto the axle on
the Right Link Arm (98). Make sure that the
flat side of the Link Arm Cover is facing the
Right Link Arm.
Insert the Right Link Arm (98) through the Right
Pedal Arm (49). Attach the Right Link Arm with
an M8 x 20mm Patch Screw (80) and an M8
Washer (33).
Repeat this step on the other side of the
elliptical.
1
0
11
6
11. Have a second person hold a Bushing Cover
(102) over the post on the right Upper Body Leg
(6). Make sure that the curved side of the
Bushing Cover is facing the right Upper
Body Leg.
Attach the Right Link Arm (98) and the Bushing
Cover (102) to the right Upper Body Leg (6)
with an M8 x 18mm Patch Hex Screw (85) and
an M8 Washer (33).
Press a Link Arm Screw Cover (104) onto the
M8 x 18mm Patch Hex Screw (85).
Repeat this step on the other side of the
elliptical.
98
49
80
33
33
85
98
Grease
103
102
Post
104
To Next Page
