12

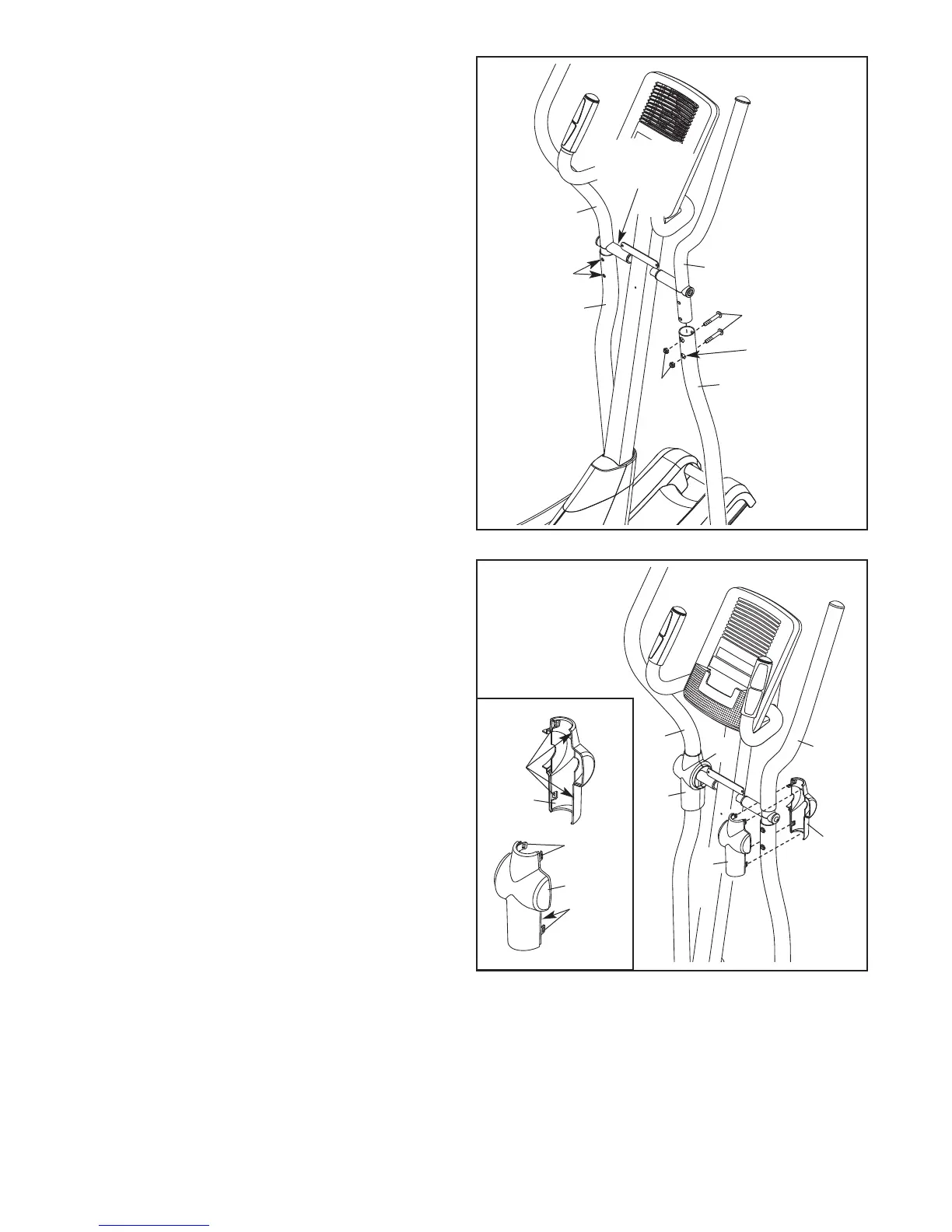

13. See the inset drawing. Identify a Pivot Cover A
(19), which has hooks, and a Pivot Cover B
(22), which has tabs.
Press a Pivot Cover A (19) and a Pivot Cover B
(22) together around the Right Upper Body Arm
(9).
Repeat this step on the other side of the
elliptical.
Tip: Make sure that the Pivot Covers (19, 22)
are positioned as shown.
13
22
22
19
9
8
19
Tabs
Hooks
Hooks
19
22
12. With the help of a second person, insert the
Right Upper Body Arm (9) into the right Upper
Body Leg (6).
Attach the Right Upper Body Arm (9) with two
M
8 x 45mm Button Bolts (76) and two M8 Jam
Nuts (77). Make sure that the Jam Nuts are in
the hexagonal holes.
Attach the Left Upper Body Arm (8) to the
other Upper Body Leg (6) in the same way.
Make sure that the M8 x 45mm Button Bolts
(76) are in the locations shown.
12
9
8
6
6
Hexagonal
Holes
77
76
76
Hexagonal
Holes
To Next Page
