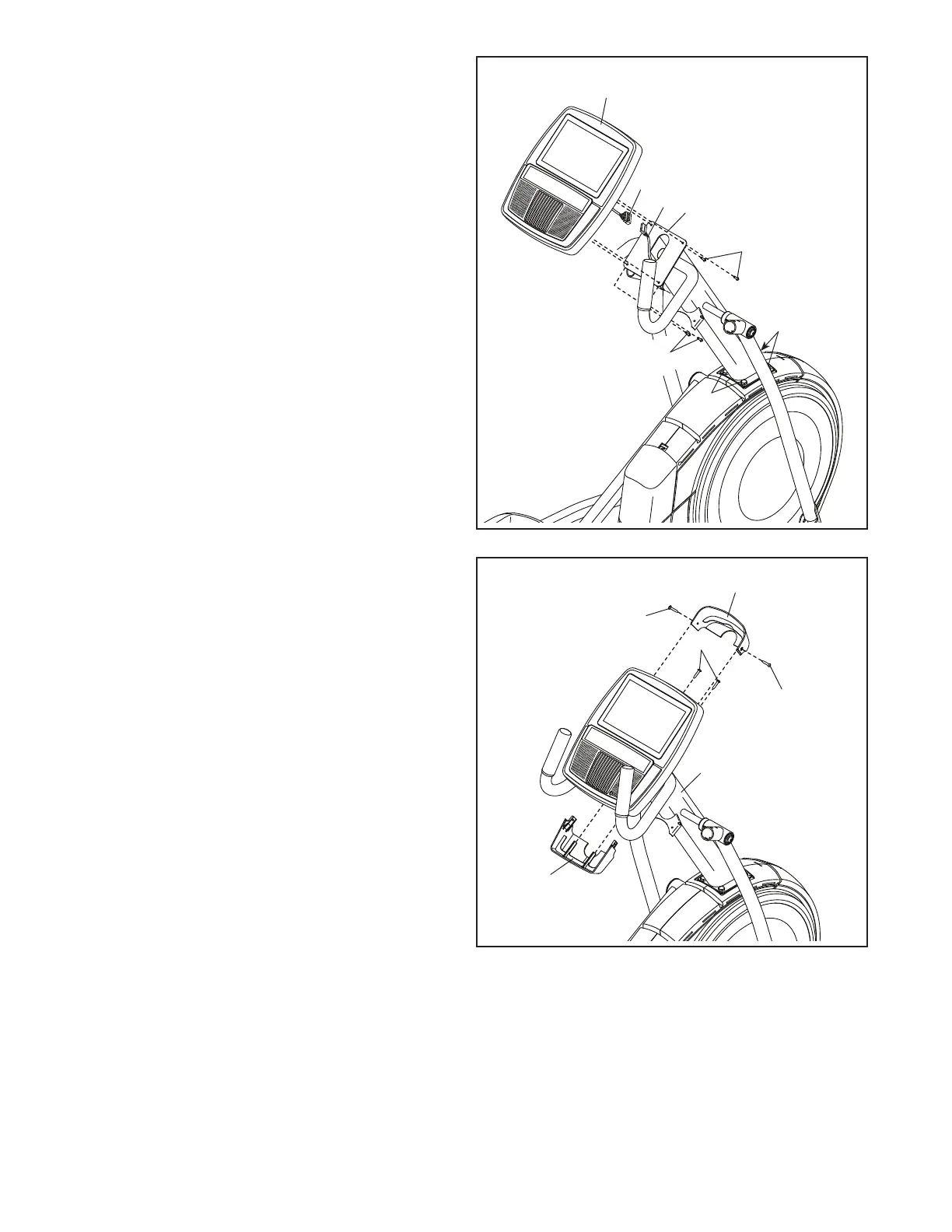

11. Orient the Rear Console Cover (80) as shown,
and attach it to the Upright (4) with two
M4 x 16mm Screws (101).
Then, orient the Front Console Cover (79) as
shown, and attach it to the Rear Console Cover
(80) with two M4 x 16mm Screws (101).
79
4
80
101
101
101
10
7
10. See step 5. Tighten the four M10 x 25mm
Screws (92).
Next, untie and discard the wire tie on the Main
Wire (110).
While a second person holds the Console
(7) near the Upright (4), connect the wire (C)
on the Console to the Main Wire (110) in the
Upright. Tip: The wire connectors should
slide together easily and snap into place
with an audible click. If they do not, turn one
connector and try again.
Insert the excess wire into the Upright (4) or into
the Console (7).
Tip: Avoid pinching the wires. Attach the
Console (7) to the Upright (4) with four
M4 x 16mm Screws (101); start all the Screws,
and then tighten them.
101
4
110
C
101
Avoid pinching the
Main Wire (110)
92
92
