8
5

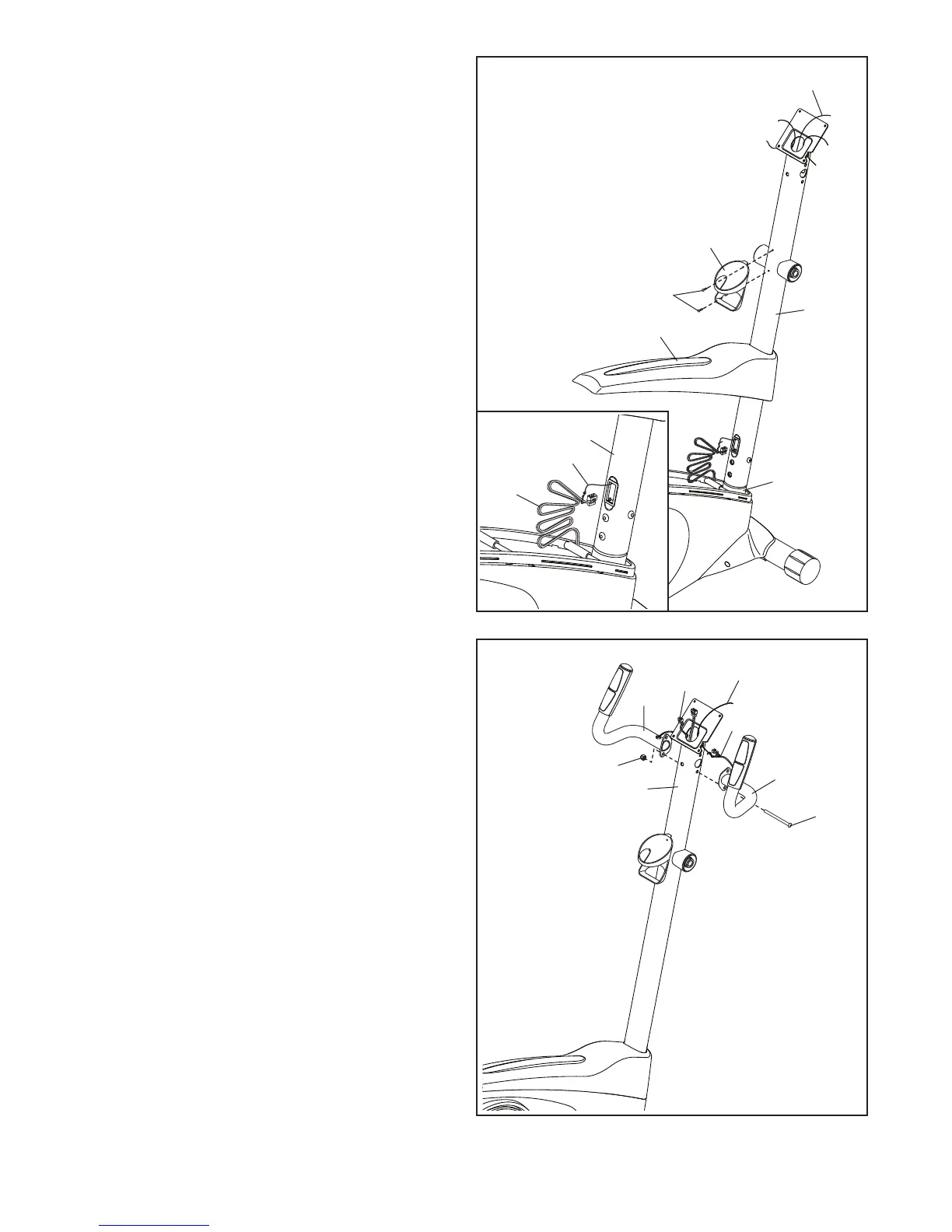

5. See the inset drawing. Locate the wire tie (C)
in the lower end of the Upright (2). Tie the wire
tie to the Wire Harness (73). Next, pull the upper
end of the wire tie until the Wire Harness is
routed through the Upright.
Tip: To prevent the Wire Harness (73) from
falling into the Upright (2), secure the Wire
Harness with the wire tie (C).
Next, slide the Top Shield (41) downward to the
Frame (1); do not press the Top Shield into
place yet.
Then, attach the Water Bottle Holder (29) to the
Upright (2) with two M4 x 16mm Screws (52).
2
29
52
6. Identify the Left and Right Handlebars (85, 86).
Tip: Avoid pinching the Pulse Wires (84).
Attach the Left and Right Handlebars (85, 86)
to the Upright (2) with an M8 x 77mm Bolt (79)
and an M8 Jam Nut (38); do not tighten the
Bolt yet.
Make sure that the M8 x 77mm Bolt (79)
is inserted through the bottom hole in the
Left and Right Handlebars (85, 86) and the
Upright (2).
Next, locate the wire ties (B) inside the
Upright (2). Tie the lower ends of the wire ties
to the Pulse Wires (84). Then, pull the upper
ends of the wire ties upward out of the top of the
Upright.
6
85
38
86
79
84
84
B
2
Avoid pinching the
Pulse Wires (84)
2
1
73
C
C
41
To Next Page
