8913204 Gas Engine V1.0
6 For technical questions call 1-800-665-8685

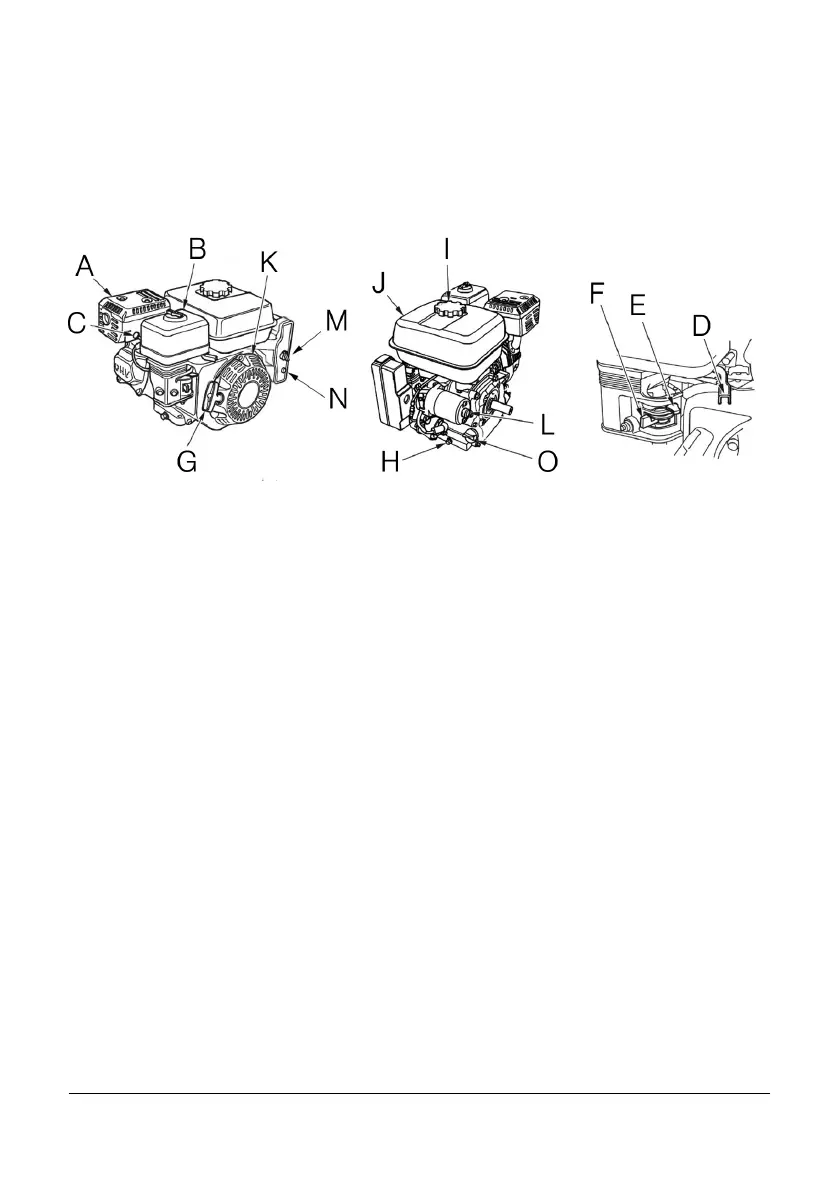

IDENTIFICATION KEY
When this manual refers to a letter, it corresponds to the components shown
in Figure 1. Compare the illustration with your engine to familiarize yourself with
the location of various features and controls.
A Muffler
B Air Cleaner
C Spark Plug
D Throttle Lever
E Choke Lever
F Fuel Valve
G Starting Handle/
H Drain Plug
I Fuel Filler Cap
K Recoil Starter
J Fuel Tank
L Starting Motor
M Engine Switch
N Breaker
O Dipstick/Oil Filler
Cap
ASSEMBLY & INSTALLATION
References to the Parts List are represented by the pound symbol (#).
References to the Parts Identification are represented by a letter (A).
1. The engine comes assembled.
2. The engine is not shipped with oil. Starting the engine without oil will damage
the engine beyond repair. Add oil per the maintenance instructions.
3. Check that the filter is in place. See Maintenance – Service the Air Filter
CONNECTING THE BATTERY
NOTICE! Do not reverse the polarity when connecting the battery as
as this will short circuit the battery charging system or damage the
equipment.
The engine has an electric start option that requires a 12 volt battery (sold-
separately). Use a 12V battery with a rating of at least 18 ampere-hours
with the engine.
