H. Cylinder Head
I. Carburetor
J. Spark Plug
K. Fuel Tank

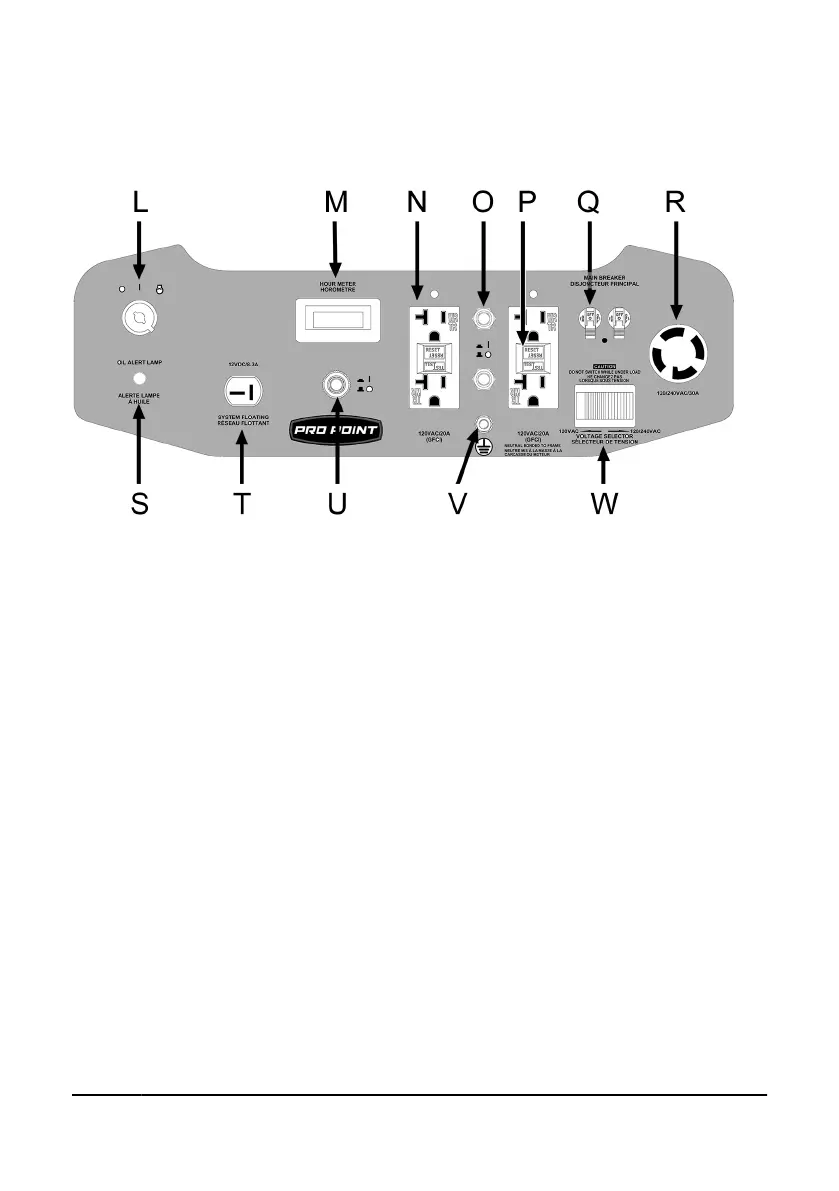

L. Ignition
M. Hour Meter
N. AC 120V Outlet
O. Power Reset
Button
P. Reset / GFCI Test
Button
Q. Circuit Breaker
R. AC 120/240V
Outlet
S. Oil Alert Indicator
T. 12V, 8A Outlet
U. Power Reset
Button
V. Ground Bolt
W. Voltage Selector
ASSEMBLY & INSTALLATION
The engine comes assembled.
1. The engine is not shipped with oil. Starting the engine without oil
will damage the engine beyond repair. Add oil per the maintenance
instructions.
2. Replace the oil cap for shipping with the vented/breather oil cap.
