4
17.Battery cover

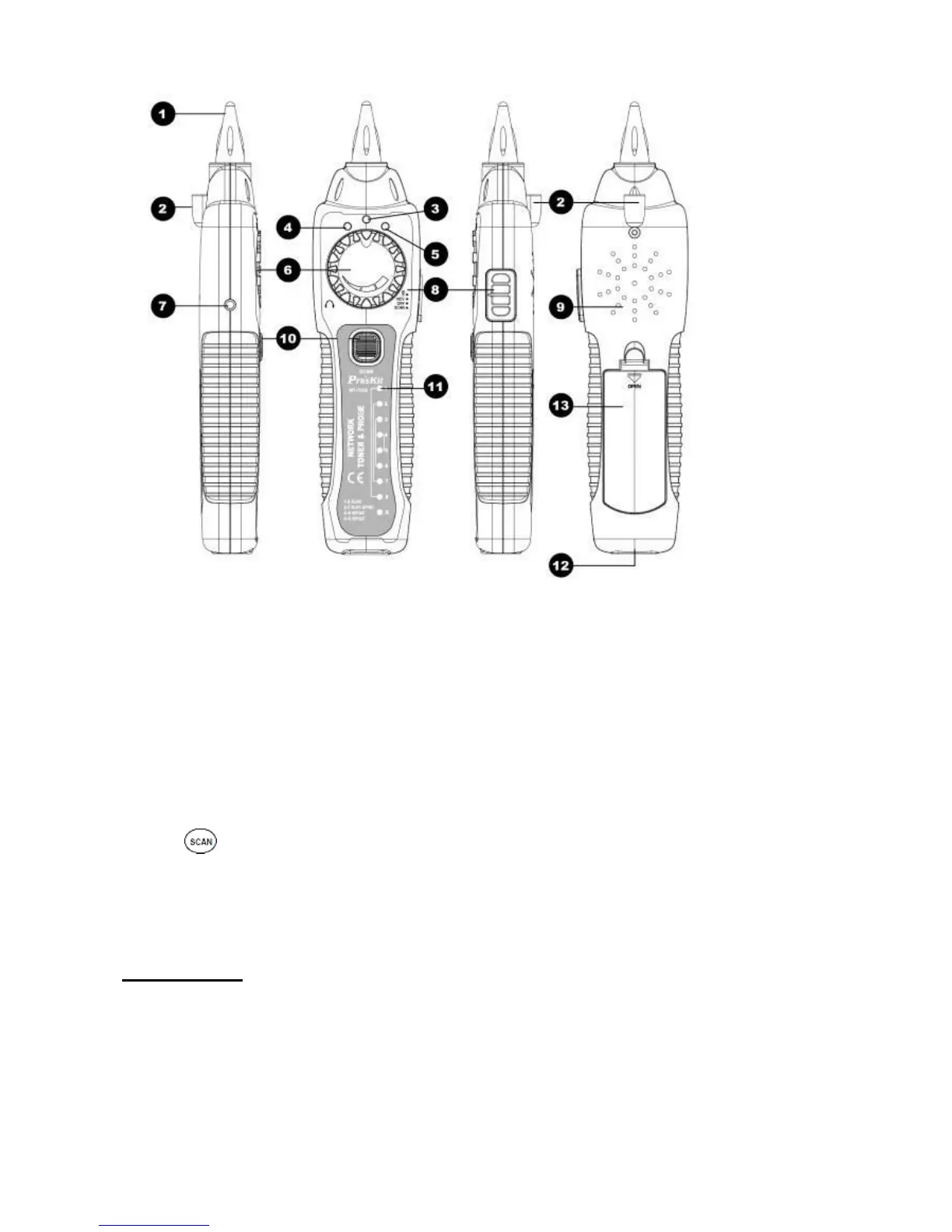

MT-7028 Receiver Diagram
1. Probe
2. LED illumination
3. Power ON/OFF indicator
4. NCV indicator
5. Signal status indicator
6. Volume control
7. Earphone jack Φ3.5mm
8. Function selection
9. Speaker
10. 「 」 Locating and Isolating cables function push button
11. 「1~8、G」 Cable map & Shielded indication
12. RJ45(8 pin)/RJ11(6/4/2 pin) Compatible connectors
13. Battery cover.
OPERATION
1. Locating and Isolating Cables：
Using MT-7028 Networking Tone & Probe kit to locate and insolate cables
using the 1KHz analog, also trace twisted wires (UTP,Cat 5, Cat 5e, Cat 6)
and telephone line. Use with a patch cord for RJ45 / RJ11. Coaxial cable,
general cable and various wiring boards can be tested by using with alligator
clip cable.
