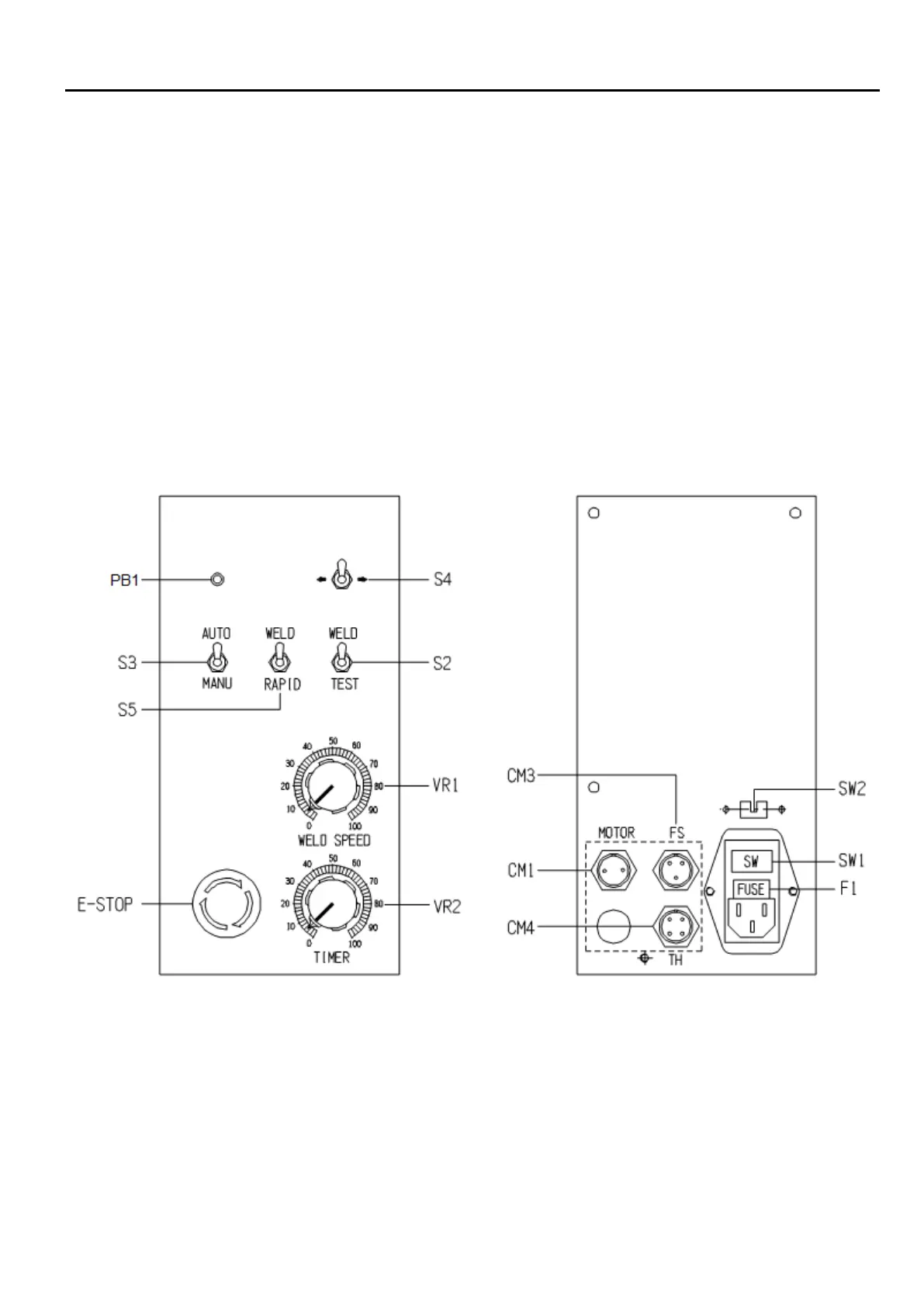

Front Panel：
E-Stop：Emergency stop button
PB 1：Push Button and Power ON signal
S 2：Weld / Test mode selection switch
S 3：Auto / Manual mode selection switch
S 4：
Clockwise / counter clockwise selection switch
S 5：Weld/rapid speed selection switch
VR1：Welding speed adjustment
VR2：Welding timer adjustment
Rear Panel：
SW1：Power switch
SW2：Voltage selection switch
F1： Fuse(1A)
CM1：Motor connector (2Pin)
CM3：Foot switch connector (3Pin)
CM4：Welding source connector (4Pin)
