1.5 Style 750: ProFlex Jacketed In-Line Flanged Rubber Check Valve
This type of rubber check valve is designed with a full metal enclosure (Style 750 Shroud) which allows easy installation in
existing piping systems. Flanges are drilled to ANSI 125/150# standard but other drill patterns are available upon request.

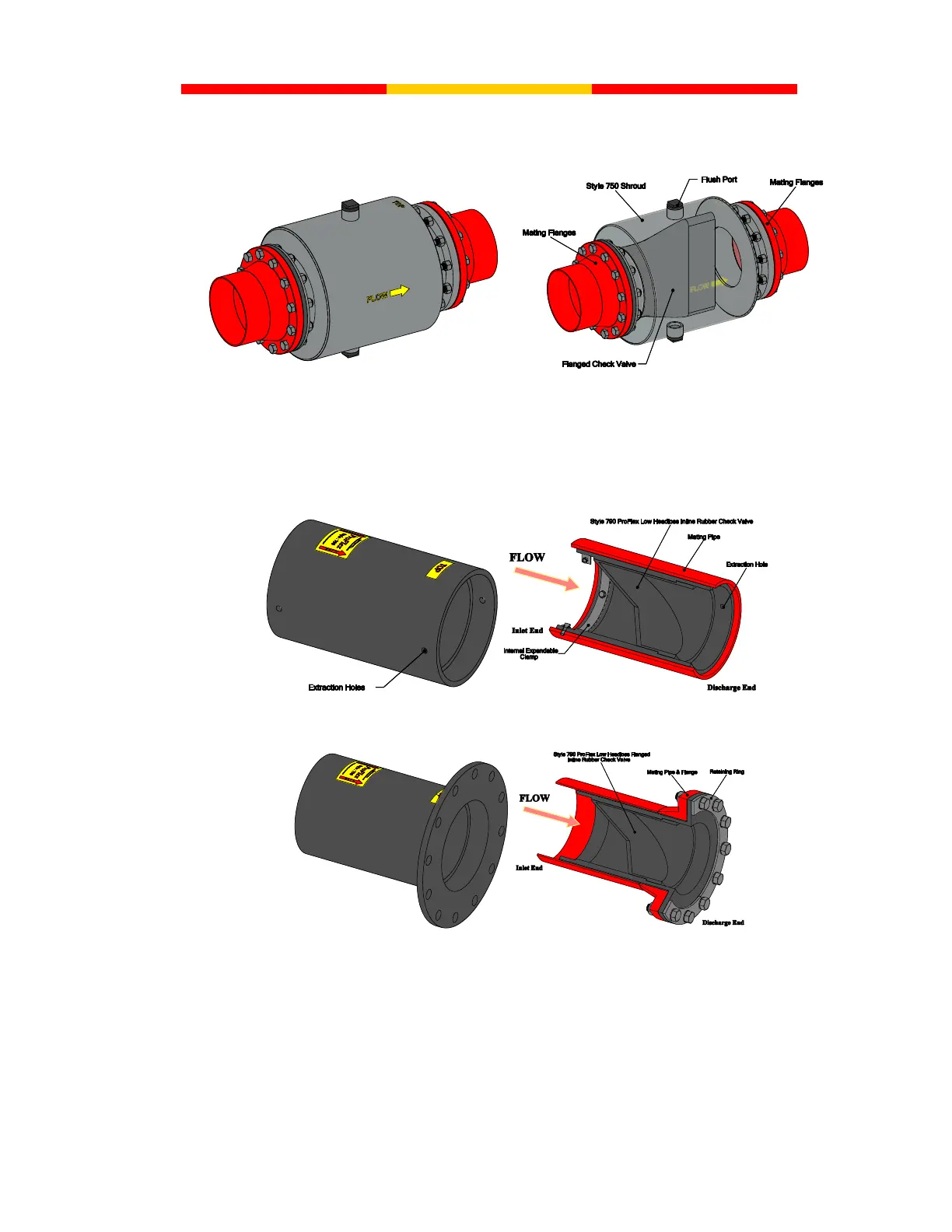

Figure 5: Style 750 Check Valve
1.6 Style 790: ProFlex Low Head Loss In-Line Rubber Check Valve
This type of rubber check valve is designed to slip directly inside of an existing pipe with the supplied stainless-steel expandable
clamp or retaining ring to secure in place; it can be fastened from either the inlet or discharge end of the valve. The standard
Style 790 valve must be installed in a truly round pipe. Out of round pipe may cause distortion of the valve causing valve
failure.
Figure 6: ProFlex Style 790 Low Head Loss In-Line Rubber Check Valve
Figure 7: ProFlex Style 790 Low Head Loss Flanged In-Line Rubber Check Valve
Note: For flanged versions of the ProFlex Style 790 Low Head Loss In-Line Rubber Check Valves the integrated rubber flange
can be located on either the inlet or discharge end depending on required installation orientation.
