Over Load
The current or KW derived from the genset is above the
programmed limit.
Voltage Unbalance
The unbalance in the voltage between the phases.
Current Unbalance
The unbalance in the current between the phases.

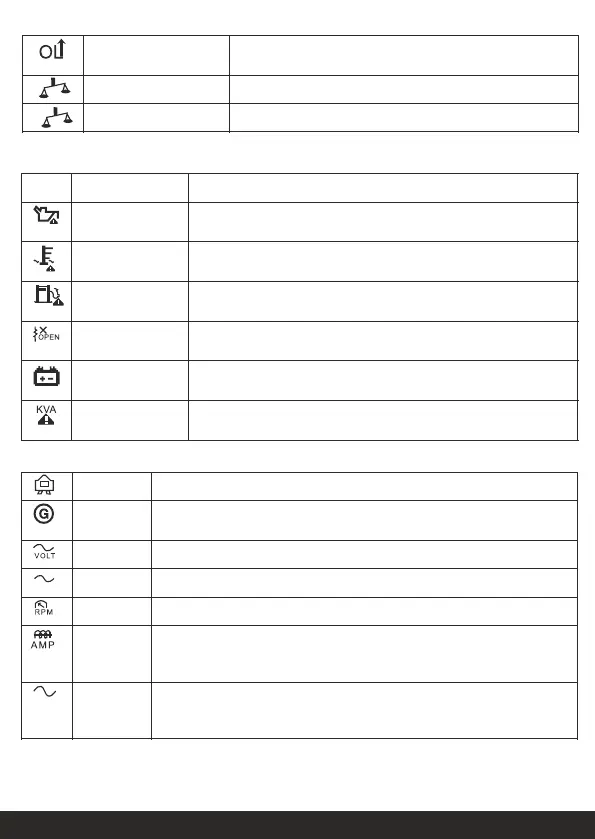

11.2 Warning Icons
ICON
DESCRIPTION
NOTES
LLOP Sensor
Open
Oil pressure sensor has been detected as being open circuit
when sensor open is selected as warning.
HWT Sensor
Open
HWT sensor warning has been detected as being open
circuit when sensor open is selected as warning.
FUEL Sensor
Open
Fuel sensor warning has been detected as being open
circuit when sensor open is selected as warning.
Sensor Common
Open
Sensor Common Open warning has been detected when
sensor common pin is open.
Battery
The DC supply has fallen below or risen above the low/high
volts setting level.
KVA Warning
When power of generator in KVA reaches to set value, then
KVA warning occurs.
Mains
Thisiconindicatesthattheparametersshownonthescreenareof
Generator
Thisiconindicatesthattheparametersshownonthescreenareof
Generator.
Voltage
Voltage of Mains or Generator.
Frequency
Frequency of Mains or Generator.
RPM
RPM of Generator.
Current
This icon shows the current of Mains or Generator. When Mains contactor
is connected, it shows Mains current. When Generator contactor is
connected, it shows Generator current.
Active Power
This icon shows the active power of Mains or Generator. When Mains
contactor is connected, it shows Mains active power. When Generator
contactor is connected, it shows Generator active power.
11.3 Operation Icons
A
A
Hz
P
