-5-

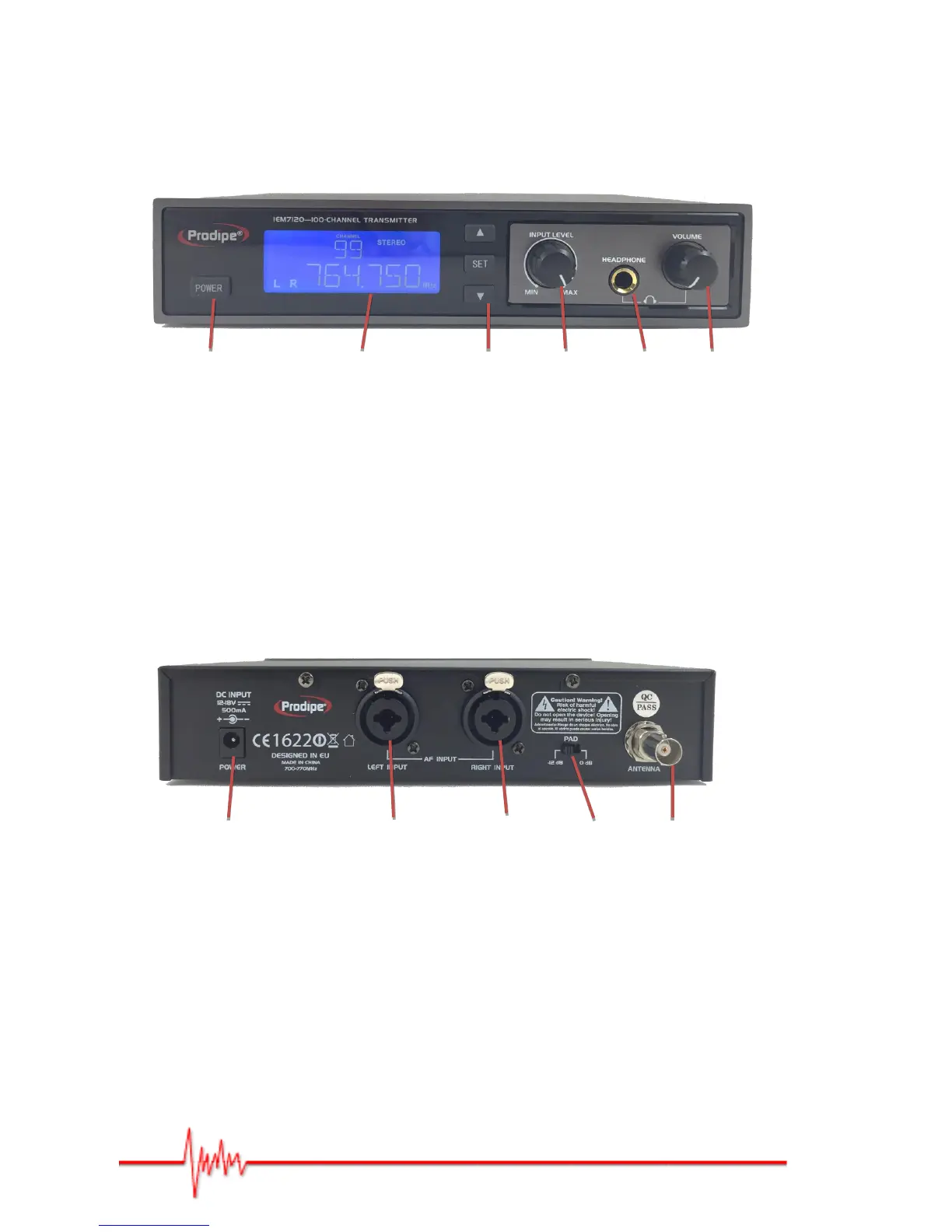

Functions of the IEM7120 transmitter

Front Panel

1. On/off switch (POWER)

2. LCD screen with information display (channels, etc.)

3. Menu/Set button (up "▲", down "▼")

4. Input level knob (see also rear panel input attenuator pad)

5. Headphone jack (6.35mm) for earphones

6. Headphone volume knob

Rear Panel

1. DC Adaptor (12-18V 350mA)

2. Combo XLR/Jack Input (LEFT)

3. Combo XLR/Jack Input (RIGHT)

4. Input Attenuator Pad (-12dB/0dB)

5. BNC Antenna socket

1 2 3 4 5 6

1 2 3 4 5
