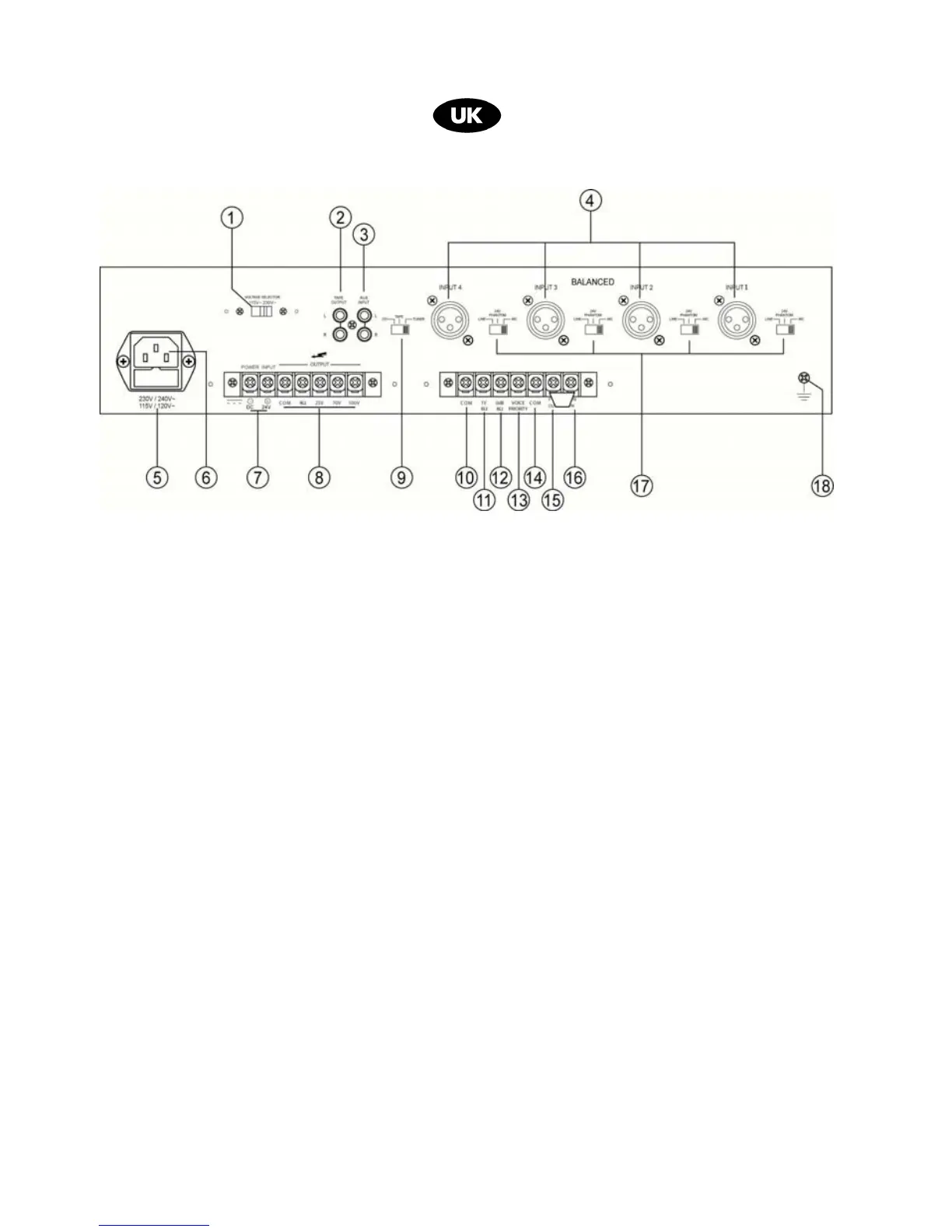

4. REAR PANEL DESCRIPTION
fig.2
1) AC power selector.
2) TAPE OUTPUT connectors.
3) AUX INPUT (INPUT5) connectors.
4) INPUT1 ÷ INPUT4 connectors.
5) Fuse folder.
6) IEC AC power socket.
7) DC power terminals.
8) Speaker output terminals.
9) AUX INPUT sensitivity selector.
10) COM terminal for outputs 11), and 12).
11) Output terminal for auxiliary speaker.
12) 0dB output terminal.
13) Voice priority terminal.
14) COM terminal for outputs 13), 15), and 16).
15) PRE OUT terminal.
16) MAIN IN terminal.
17) INPUT1 - INPUT4 sensitivity selector.
18) Grounding terminal.
