PROEL AXIOM - VERSION 2.0 - Page 10

1.1. THE SOUND OUT FRONT! 1. Introduction
(a) (b)
(c) (d)

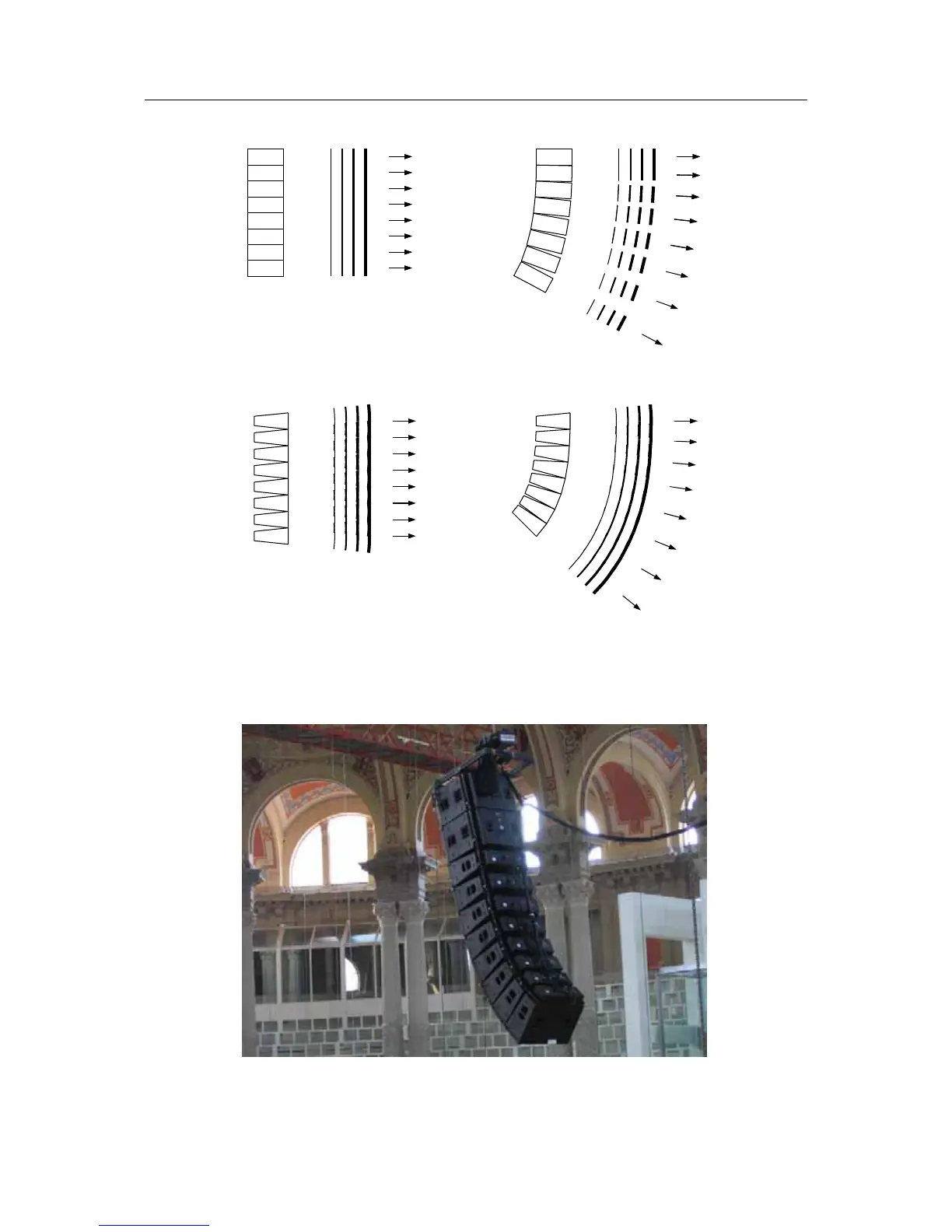

Figure 1.3: Vertical coverage stability comparison: (a) plan radiation sound system on straight array, (b) plan ra-
diation sound system on cur vilinear array, (c) curvilinear radiation sound system on straight array, (d)
cur vilinear radiation sound system on curvilinear array.
Figure 1.4: AX3210P array with overhead AX1118SP subs, a typical employment of vocal sound reinforcement in
an indoor arena.
4
