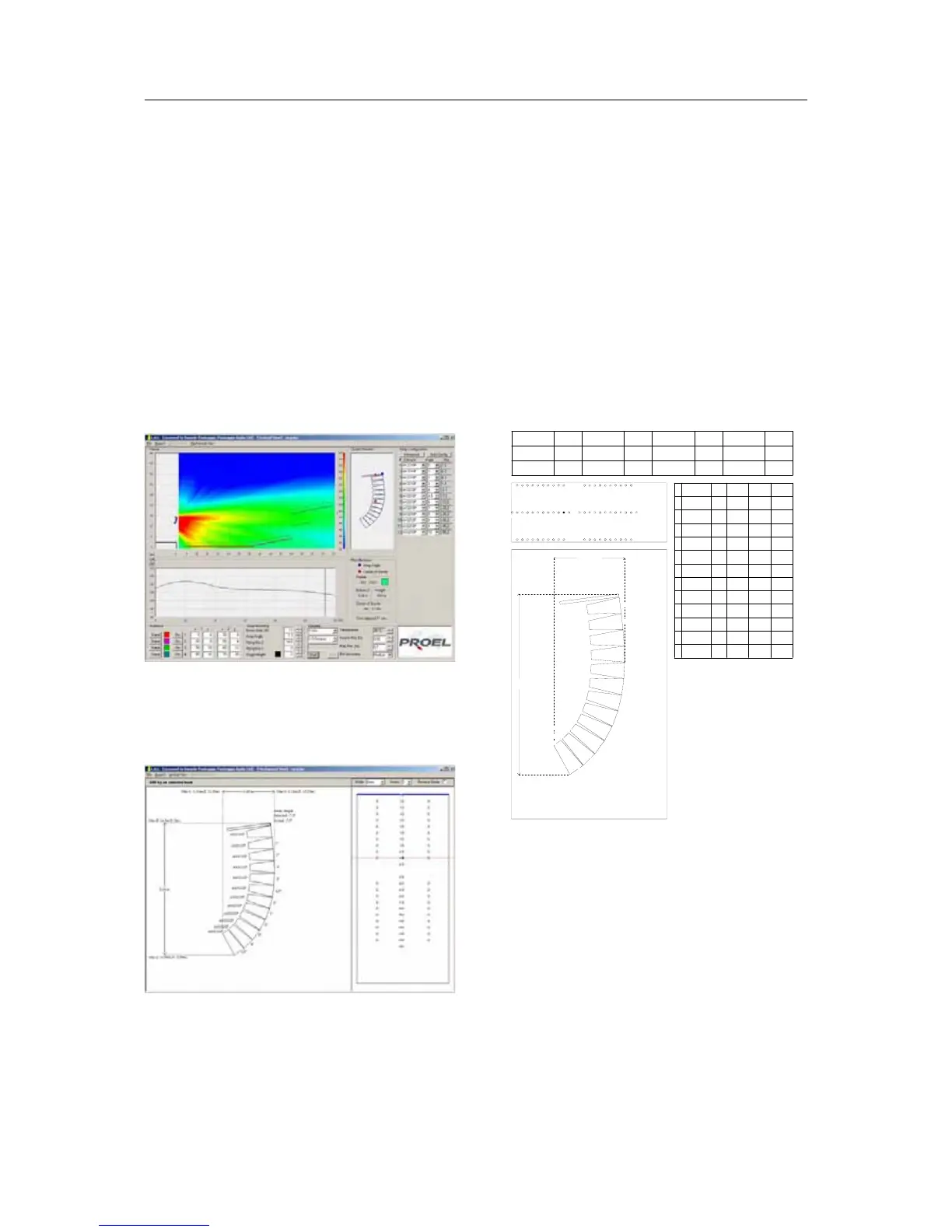

PROEL AXIOM - VERSION 2.0 - Lac

2. Specifications LAC
LAC
Description
The Proel LAC (Line Array Configurator) soft-
ware allows accurate simulation of the mechan-
ical and acoustic behaviour of the AXIOM Se-
ries Vertical Arrays. The simulation algorithm is
based on high resolution measurements of each
module, and the results have been verified on
measurements taken on real arrays. Using the
Vertical View visualization you can set dimen-
sions and structure of your location, the array
configuration (loudspeaker models and quantity,
angles and related levels of each loudspeaker)
and all parameters needed for the simulation.
In the Mechanical View window you can verify
the flying bar connecting position and manually
configure the suspension points according to the
maximum load allowed by the support structure
available.
The software is designed to be a quick and
easy instrument for the best configuration of the
system whether it is used by the most expert
sound designer – who can use the array shad-
ing and singular ly set the delay for each element
– or by a beginner – who could profit from the
auto-configure mode which will automatically op-
timize the curvature of the array. Images can be
exported of the coverage map and detailed me-
chanical reports of the system configuration can
be printed.
Cluster Configuration
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
3,64m
Max Z: 14,6m(X: 0m)
Min Z: 10,96m(X: -0,98m)
1,43m
Max X: 0,12m(Z: 13,23m)Min X: -1,31m(Z: 11,55m)
AX3210P
AX3210P
AX3210P
AX3210P
AX3210P
AX3210P
AX3210P
AX3210P
AX3210P
AX3210P
AX3210P
AX3210P
0°
1°
2°
3°
4°
4,5°
6°
7°
8°
8°
9°
10°
#
Box
Name
Relat.
Angle
Abs
Angle
Delay
Box
Level
1 AX3210P 0° -7,3° 0µs 0dB
2 AX3210P 1° -6,3° 0µs 0dB
3 AX3210P 2° -4,3° 0µs 0dB
4 AX3210P 3° -1,3° 0µs 0dB
5 AX3210P 4° 2,7° 0µs 0dB
6 AX3210P 4,5° 7,2° 0µs 0dB
7 AX3210P 6° 13,2° 0µs 0dB
8 AX3210P 7° 20,2° 0µs 0dB
9 AX3210P 8° 28,2° 0µs 0dB
10 AX3210P 8° 36,2° 0µs 0dB
11 AX3210P 9° 45,2° 0µs 0dB
12 AX3210P 10° 55,2° 0µs 0dB
Boxes Number
12
Array Selected
Angle
-7,3°
Array Actual
Angle
-7,3°
Cluster Bottom Z
10,96 m
Flying-Bar X
0m
Flying-Bar Z
14,6 m
Center Of Gravity
(X;Z)[m]
-0,4; 12,76
Array Weight
600 Kg
Rigging Mode
1
Reverse Mode
No
Weight On Central
Hook
600 Kg
Weight On Each
Lateral Hook
0Kg
The software runs exclusively on Windows
XP/2000/98 systems and, together with the
user’s manual, is provided free of charge in com-
bination with AXIOM Systems.
