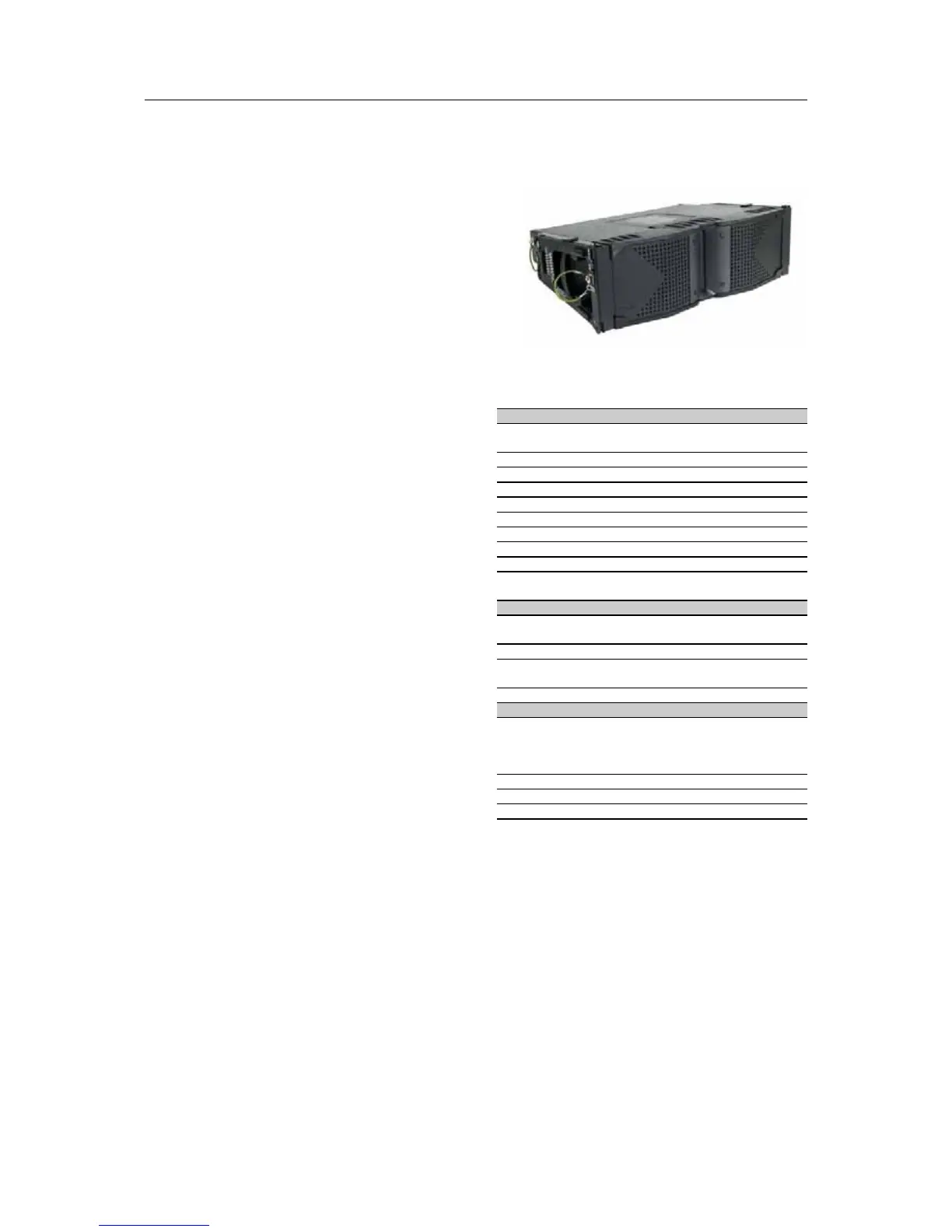

AX2265P 2. Specifications
AX2265P
• VeCAM Module for high power curvilinear
vertical arrays
• Acoustic Coverage Improvement Device
(A.C.I.D. Technology)
• Integrated suspension system
• Amp Ready format
Description
Model AX2265P is a compact module for under-
dimensioned Vertical Arrays that will surprise you
with its quality and high pressure. AX2265P is
a 2-way bi-amplifiable system designed for live
concerts and permanent installations. It features
two mid-low 6.5” loudspeakers with neodymium
magnet, aluminium coil and single demodulat-
ing ring. The compression driver features a
neodymium magnet, a 1” throat and is equipped
with a special titanium membrane which enables
it to work well even at 1.3 kHz despite its small
size. The average nominal angular dispersion is
110
◦
(-6 dB) on the horizontal level, whereas the
vertical dispersion depends on the composition
of the array. Each single element, and particu-
larly the high range wave guide, has been stud-
ied to combine at its best with the rest of the
system, especially when the array has a high
curvature. Precise directivity control in the high
range lowers destructive interference phenom-
ena to their minimum. Entirely made of pres-
sure die cast aluminium, the wave guide min-
imises transfer loss whilst maintaining the ef-
ficiency of the driver, especially at band ex-
tremes. Model AX2265P has been designed
(AMP READY Format) for the installation of on-
board amplifier/digital processor units. The sus-
pension and transportation system is completely
integrated with the exception of the flying bar
KPTAX2265. This bar can suspend up to 24
AX2265P elements with a security factor of 7:1.
Data Sheet
System AX2265P
System Type 2-way full-range vertical ar-
ray element bi-amp
Frequency Response 125 Hz - 18 kHz
Nominal Impedance 8 Ω +16Ω
Continous Power 500W+80WAES
Peak Power 1000 W + 160 W
Coverage Angle H. (-6 dB) 110
◦
average
Coverage Angle V. (-6 dB) depending on array size
Directivity Index (DI) depending on array size
Maximum Peak Output 129 dB@1m
Signal Processing Proel DSO26
Lake Contour Pro 26
Transducers
Mid Frequency Device 2 x 6.5” woofer - 2” voice
coil
Sensitivity 99 dB SPL (2.83 V, 1 m)
High Frequency Device 1” compression driver -
horn loaded
Sensitivity 110 dB SPL (4 V, 1 m)
Mechanical Data
Construction trapezoidal (12
◦
)
15 mm birch plywood
internally reinforced
with paint finish
Flying System built in suspension system
Dimensions (WxHxD) 58.5 x 19 x 46 cm
Weight 18.5 kg - 40.8 lb
Engineering specifications
The system should be a two-way passive enclo-
sure, with a frequency response from 125 Hz to
18 kHz and a horizontal coverage of 110
◦
. The
system should have a 4” driver with a coaxial di-
aphragm and a 2” throat fit with a wave guide,
power handling of 150 W AES and an impedance
of 16 Ohms. The system should also have two
10” low frequency loudspeakers with a 3” voice
coil. The system should provide a suspension
mechanism for curvilinear vertical arrays, allow-
ing the adjustment of the angle between each of
the elements. The enclosures must be made
18
