2. Specifications EDGE121SP

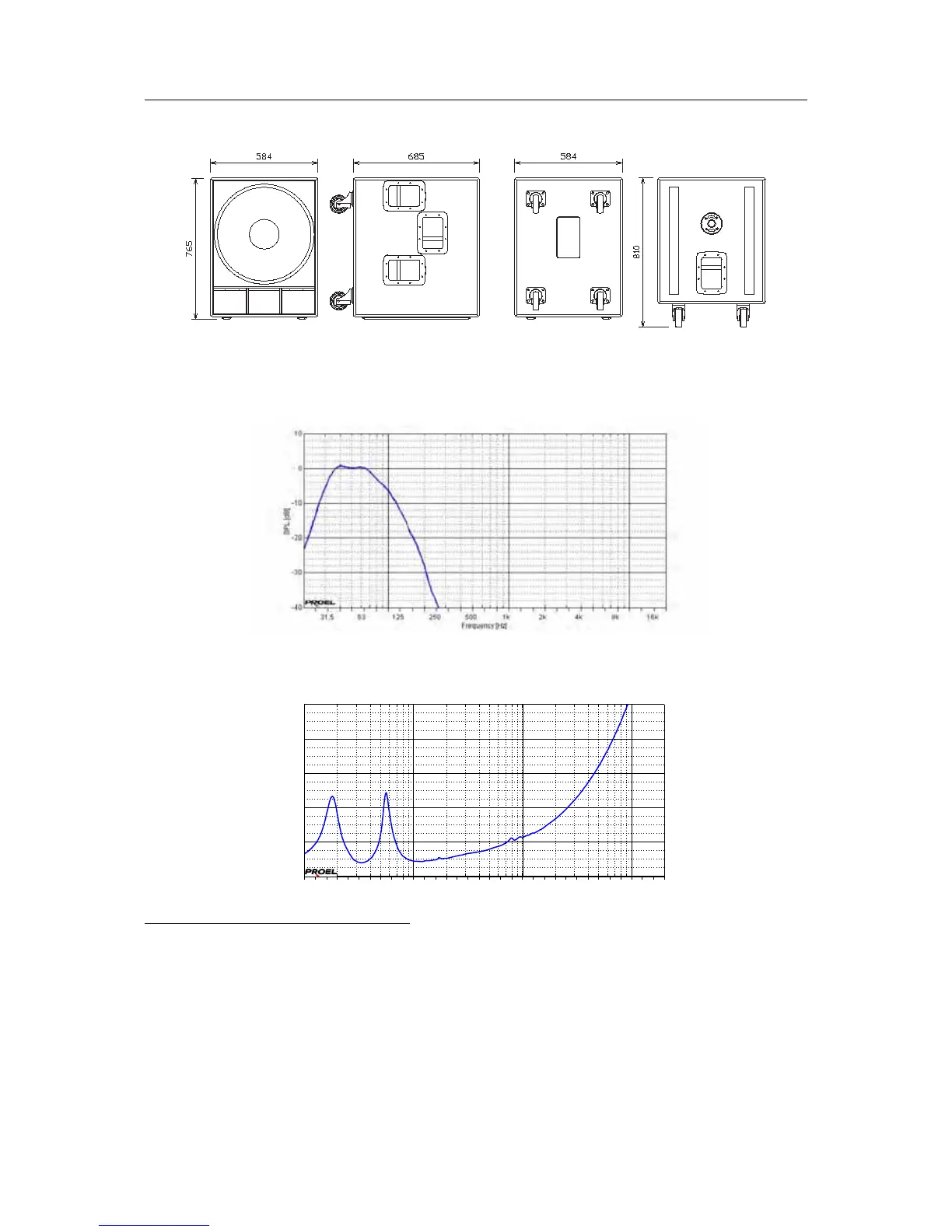

Dimensions
Graphical data
Frequency response
2
:
Impedance:
0
20
40
60
80
100
Impedance [ohm]
12.5 31.5 63 125 250 500 1k 2k 4k 8k 16k
Frequency [Hz]
2
Measured with 2.83 V @ 1m. with ground plane procedure in free field.
