5.3. SUSPENDING AX2265P AND AX1115SP SYSTEMS 5. Guide to System Setup
Load limits
Flying bar KPTAX3210 can stack up to eight systems. The following chart shows all the possible combi-
nations:
AX3210P AX1118SP
8 0
6 1
4 2
2 3
0 4
5.3 Suspending AX2265P and AX1115SP Systems
AXIOM models AX2265P and AX1115SP feature a suspension system integrated into their frames fea-
tures two coupling cams in the front of the speaker and two slotted bars in the back. The loudspeakers
are linked together in a column using a series of couplers integrated in the frame of each enclosure.
The same suspension mechanism allows stacking AX2265P and AX1115SP by simply inverting the
elements
8
.

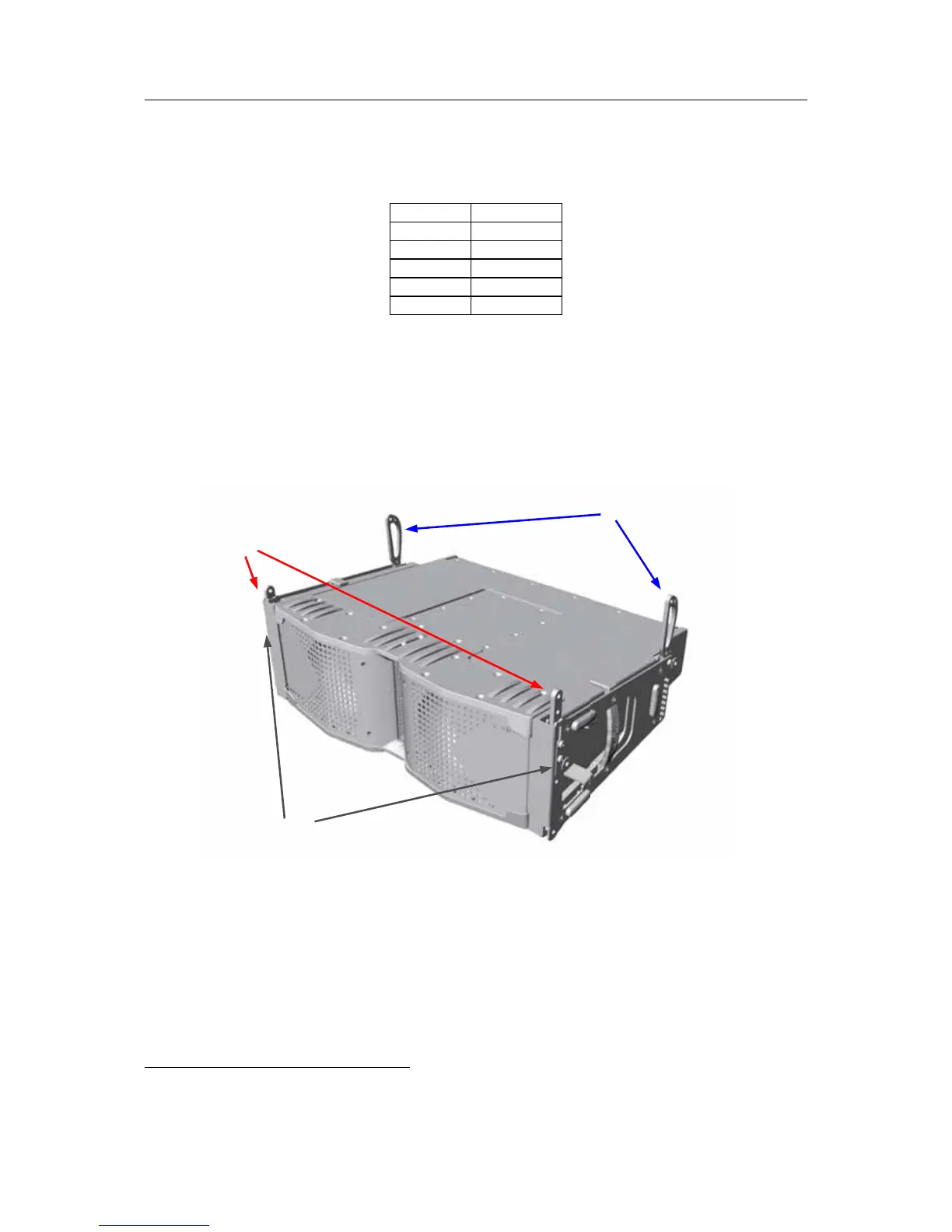

Figure 5.17: AX2265 - integral suspension system
5.3.1 The suspension of AX2265P systems with KPTAX2265 flying bar
As stated before, the only accessory necessary for the suspension of a series of AX2265P enclosures in
an array is the KPTAX2265 flying bar. In this manual, the load capacity of the coupling point – or points –
which will suspend the array are understood to be mechanically verified to support the array with a safety
factor allowed by current regulations. KPTAX2265 flying bar can suspend up to 24 AX2265P systems
with a safety factor of 7:1.
8
The procedures needed to stack the system are slightly less fluid than those necessary to suspend it.
62
